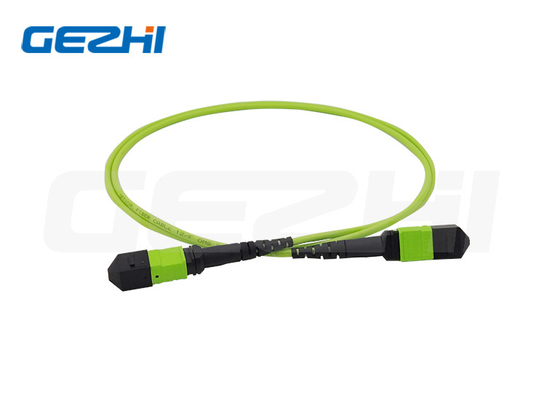

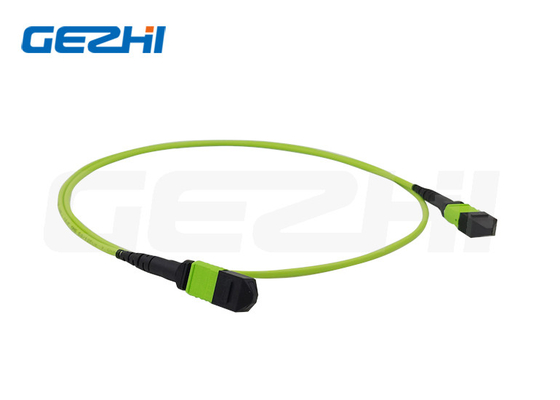

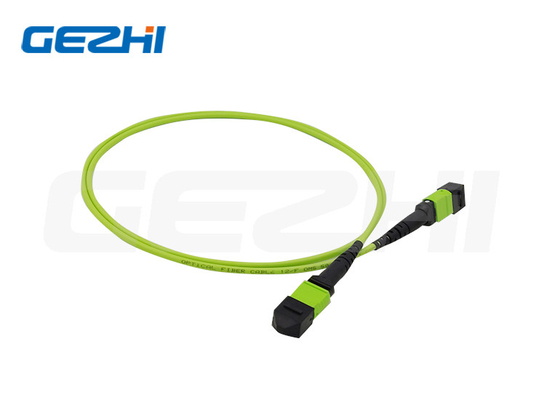

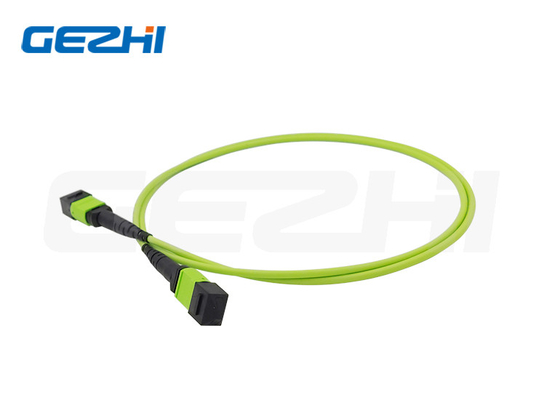

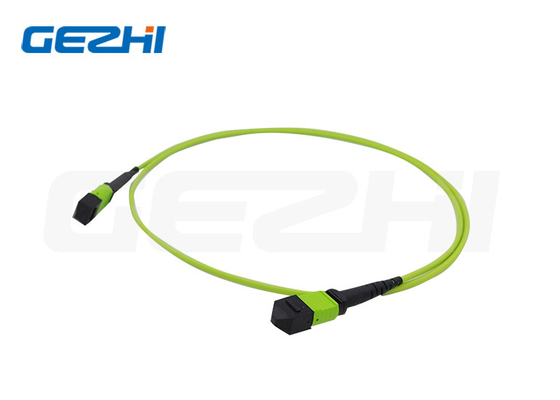

12 Core MPO Female Trunk Cable MM OM5 3.0MM Lime Green LSZH Polarity A/B

Name: 12 Core MPO Female Trunk Cable MM OM5 3.0MM Lime Green LSZH Polarity A/B
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: MPO OM5 Fiber Cable
Price: 744.89 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	MPO OM5 Fiber Cable
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Length:

Customised

Jacket Material:

LSZH

Jacket Color:

Lime Green

Fiber Type:

50/125µm Multimode OM5

Cable Diameter:

3.0mm

Application:

Data Center

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

LSZH MPO Female Trunk Cable

3.0MM MPO Female Trunk Cable

12 Core MPO Female Trunk Cable

Product Description

Overview of MPO OM5 Patch Cord

12 Core MPO Female Trunk Cable MM OM5 3.0MM Lime Green LSZH Polarity A/B

MPO OM5 Patch Cord

This MPO trunk cable is a factory pre-terminated 12-fiber multimode OM5 MPO patch cord for limited space cabling. It features high-performance MPO-12 female connectors and an OM5 optical cable for optimal functionality and reliability. The MPO-12 connector is roughly the same size as an SC connector but can provide up to 12 times the density, thereby providing significant space and cost savings. Additionally, it offers consistent user quality, much faster installation, and simpler cable management.

Features of MPO OM5 Patch Cord

• 100% tested for low insertion loss and high return loss
• High-quality MPO connectors guaranteed by the 3D interferometer
• Type B polarity for 40G/100G PSM4, 400G DR4 connection
• Provides 0.6dB Standard & 0.35dB Elite low loss for customers’ choose

Specifications of MPO OM5 Patch Cord

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	MM OM5	8F/APC	≤0.50	≥20	≤0.35	≥20
		12F/APC	≤0.50	≥20	≤0.35	≥20
		24F/APC	≤0.50	≥20	≤0.35	≥20
		8F/PC	≤0.50	≥20	≤0.35	≥20
		12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20

Customer Connectors

The MPO interfaces on active equipment are male (with pins), and to avoid damage to the transceiver, MPO patch cords should be female (without pins).

Male (with pins)

The male connector is mated to the female side for adapters, cassettes or panels connection.

Female (without pins)

The female connector can be directly connected to transceivers or other male

connectors.


Odering Information of MPO OM5 Patch Cord

Type	Mode	Fiber Count	Polarity	Grad	Connector A	Connector B	Polishing	Length
PCMPO	2=OS2 3=OM3 4=OM4 5=OM5	08=8 Fibers 12=12 Fibers 24=24 Fibers 36=3x12 Fibers 48=4x12 Fibers 96=8x12 Fibers 144=12x12 Fibers	A=Type A B=Type B C=Type C	S=Standard E=Elite	M=Male F=Female	M=Male F=Female	P=UPC A=APC	01=1M 02=2M 05=5M 10=10M S=Specify

FAQ

Q1:Can I have a sample order of MPO OM5 Patch Cord? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms MPO OM5 Patch Cord?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of MPO OM5 Patch Cord?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.

Tags:

SMA Armored Fiber Optical Patch Cord Singlemode Simplex Fiber Count 1/2/4/6/8 Fibers Cable Color Blue SM 3.0mm LSZH Jacket
