Product Details:
Payment & Shipping Terms:
|
| Fiber Type: | Simplex And Duplex | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Type: | Single Mode/Multi-mode | Length: | Any Length Is Customizable |
| Connector Type: | SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO | ||
| High Light: | Multimode Patch Cable Series,FTTB Fiber Optic Patch Cord,Armored Fiber Optic Patch Cord |
||

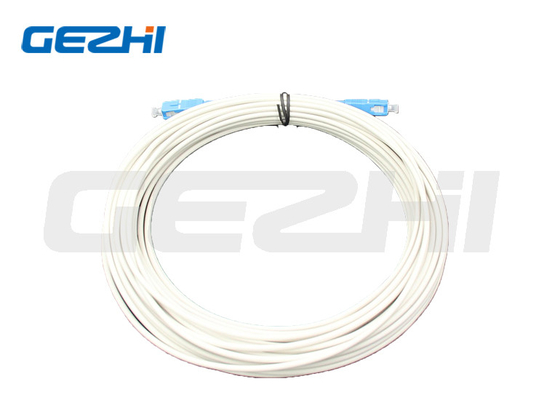

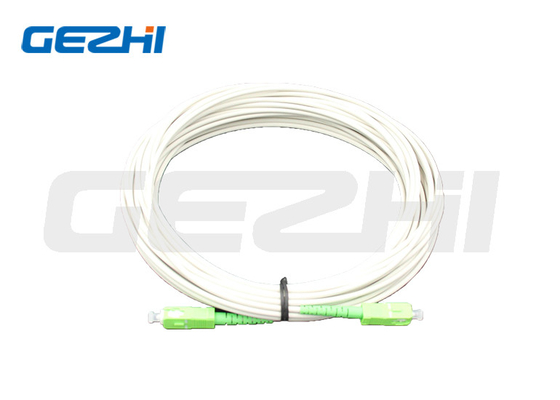

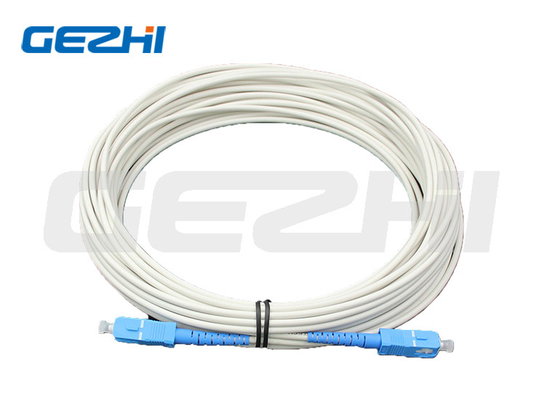

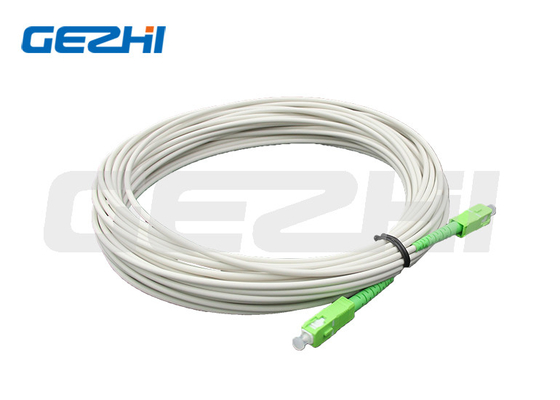

Single Mode Multimode Fiber Optic Cable Patch Cord, Armored Fiber Optic Patch Cord
Description of Armored Fiber Optic Patch Cord
Armored fiber optic patch cord is available in both singlemode and multimode versions. A cost-effective solution that provides high bandwidth and transmission rates over short distances. This high-quality Multimode fiber optic patch cable is designed for ethernet applications. Each connection has great durability and is resistant to pulls, strains and impacts during installation
Optical Fiber Patch Cord (Jumper) is a length of optical fiber with two ends adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. Joinwit patch cords assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ etc. ) There are three kinds of polished fiber end-face: PC, UPC and APC. We employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.
Features of Armored Fiber Optic Patch Cord
1.Good exchangeability
2.Good durability
3.Low insertion loss and back reflection loss
4.Superior quality standard PC/UPC/APC Polishing
5.Standard: Telcordia GR-326-CORE,TIA/EIA and IEC
6.High temperature stability
Specification of Armored Fiber Optic Patch Cord
| Fiber type | Single mode: | (1)9/125-G652D | (2)9/125-G655 | (3)9/125-G657A,G657A2 | (4)9/125-G657B3 | |
| Multimode: | (5)50/125-OM2 | (6)62.5/125-OM1 | (7)50/125-OM3 | (8)50/125-OM4 | (9)50/125-OM5 | |
| Connector | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC | |||||
| Cord type | Simplex ,Duplex | |||||
| Cable diameter | 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm | |||||
|
Cable jacket |
PVC, OFNR, LSZH, OFNP | |||||
| length(M) | 0.5m,1m,2m,5m,10m,25m,50m,100m...Customized | |||||
Type of Armored Fiber Optic Patch Cord
Ferrule endface: PC,UPC,APC,etc.
Connector type: FC,SC,ST,LC,MT-RJ,MU,etc.
Fiber type: single mode,polarization-maintaining optical fiber,multimode 50/125,mutimode 62.5/125,etc.
Number of fiber connected: single-core connector,dual-core connector and multi-core connector.
Cable diameter: 0.9mm,2.0mm,3.0mm,etc.
Ordering Options of Armored Fiber Optic Patch Cord
| Connector type | SC,FC,ST,LC,E2000,DIN,MU,MTRJ,etc |
| Polish | UPC,APC,PC |
| Cable type | Simplex,Duplex straight,Duplex Reverse |
| Fiber | SM(G652),62.5/125um,50/125um,OM2,OM3,SM(G655) |
| Cable Jacket | Riser,Plenum,LSZH |
| Cable Diameter | 3.0mm,2.0mm,0.9mm,etc |
| Cable Length | Length in meter |
