Single Mode Optical Fiber Pigtail with LSZH Jacket and Low Insertion Loss for FTTH FTTB FTTX Network

Name: Single Mode Optical Fiber Pigtail with LSZH Jacket and Low Insertion Loss for FTTH FTTB FTTX Network
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: Single mode Optical Fiber Pigtail
Price: 744.89 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	Single mode Optical Fiber Pigtail
MOQ:	1pc
Price:	Negotiable
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Jacket Material:

LSZH

Insertion Loss:

<0.3dB

Ferrule Diameter:

2.5mm, 1.25mm

Fiber Height:

-100~50nm, ±50nm

Apex Offset:

±50μm

Operating Temperature:

-40-85°C

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Telecommunication Equipment Optical Fiber Pigtail

Single mode Optical Fiber Pigtail

Manufacture Optical Fiber Pigtail

Product Description

Manufacture Telecommunication Equipment Single mode Optical Fiber Pigtail

Product Overview
Fiber Optic pigtail has connector at one end, the other end is fiber optic cable which be cut off.
Then it connect by splice with other cable core. It is widely used in fiber optic terminal box, ODF
rack , cabinet to connect with fiber optic media converter/transceivers(use coupler,patch cord too)

Application

Medical instruments
Industry and Army use
CATV network
LAN network
Fiber Access network
Telecommunications
Gigabit Data Network test

Features

Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
Fiber transmission active connection
Low insertion loss, high return loss
Good changeability and repeatability
Mostly used inside frame connection, simple, convenient and economical
Easy to install, small size, large capacity.

1. Polish Data

Item	PC Polishing		APC Polishing
Ferrule Diameter(mm)	2.5	1.25	2.5	1.25
Radius of Cury(mm)	10 ~25	7~25	5~15
Fiber Height(nm)	-100~50		±50
Apex Offset(um)	±50		±50

2.Technical Data

NO.	Item	Unit	Single Mode			Multi-Mode
1	Insertion Loss	dB	≤0.2	≤0.3		≤0.3
2	Return Loss	dB	≥50/UPC	≥45/PC	≥65/APC	≥35/PC
3	Repeatability	dB	0.1
4	Working Times	Times	≥1000
5	Operating Temperature	°C	-40-85
6	Optical Cable Diameter	mm	Φ0.9	Φ2.0		Φ3.0

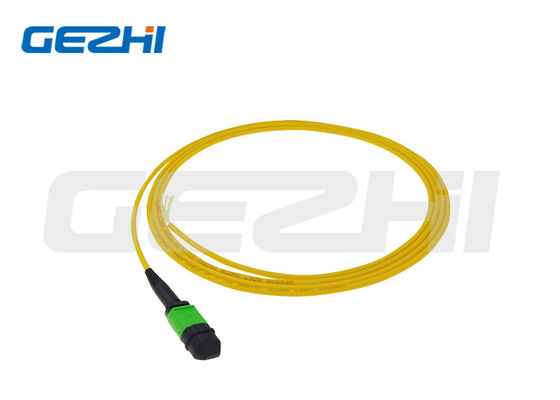

Product image
Single Mode Optical Fiber Pigtail with LSZH Jacket and Low Insertion Loss for FTTH FTTB FTTX Network

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Felix

Germany May 13.2026

Helpful (1)

As a network engineer, I'm very satisfied with this patch cord. The LC/APC connectors are well-polished, ensuring optimal signal transmission with minimal loss. It’s been running smoothly in our data center for months, with no issues at all. The LSZH jacket is also a big plus for fire safety compliance.

Jane

Australia Apr 28.2026

Helpful (1)

This LC/APC simplex fiber patch cord works perfectly for our telecommunication projects. The connection is stable with extremely low insertion loss, and the return loss is excellent. The LSZH material gives us peace of mind for safety in our facilities. Great quality product, highly recommended!

Luis

Austria Apr 27.2026

Helpful (1)

Excellent quality fiber patch cord! Low insertion loss, high return loss, and durable LSZH material. Easy to install and works flawlessly. 5 stars!
