| Brand Name: | GEZHI or OEM |
| Model Number: | FC to LC Singlemode Simplex Fiber Optic Patch Cord |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

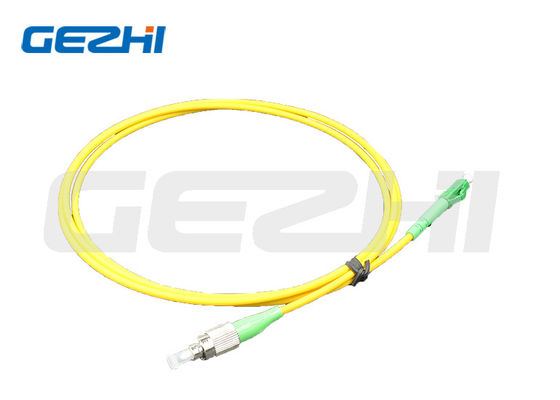

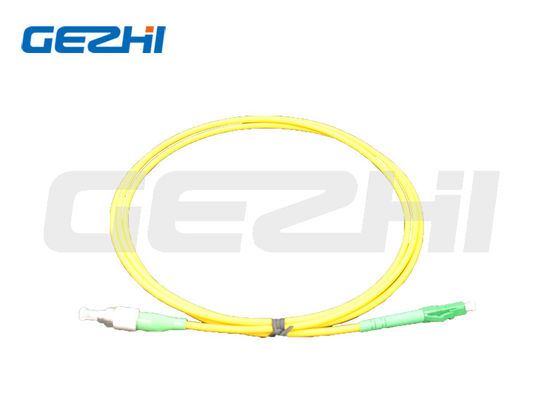

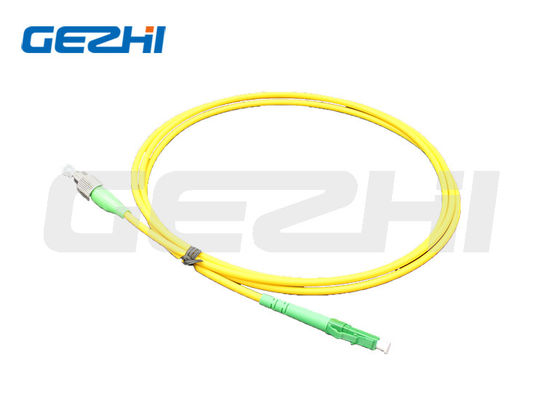

FC to LC Singlemode Simplex Fiber Optic Patch Cord,Customizable length LSZH Fiber Patch Cable for Data transmission
Features of FC to LC Singlemode Simplex Fiber Optic Patch Cord
| 1.Cheap multimode fiber price,short distance transmission 2.Mutual Insert performance 3.Good temperature stability 4.Repeat ability 5.Strong tensile property 6.High return loss 7.Low insertion loss 8.Wide transmission bandwidth |
Application of FC to LC Singlemode Simplex Fiber Optic Patch Cord
*LAN
*Fiber communication system
*Data transmission
*Optical fiber sensor
*Test equipment
*CATV
*Fiber access network
Specification of FC to LC Singlemode Simplex Fiber Optic Patch Cord
| Item | Standard,Master |
| Connector type |
LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC, FC/APC,LC/APC.MU/APC |
| Duplex MTRJ/Female, MTRJ/Male | |
| Fiber Type | |
| 9/125 SMF-28 or equivalent (Singlemade) OS1 | |
| 50/125, 62.5/125 (Multimode) OM2&OM1 | |
| 50/125, 10G (Multimode) OM3 | |
| Cable Type | Simplex, Duplex (Zipcord) |
| Φ3.0mm, Φ2.0mm, Φ1.8mm | |
| Φ1.6mm PVC or LSZH | |
| Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH | |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) |
| ≤ 0.25dB (For Singlemode Standard) | |
| ≤ 0.25dB (For Multimode) | |
| Tested by JDS RM 3750 | |
Return Loss (For Singlemode) |
UPC ≥ 50dB |
| SPC ≥ 55dB | |
| APC ≥ 60dB (typ.65dB) | |
| Tested by JDS RM3750 | |
| Repeatability | ±0.1dB |
| Operating temperature | -400C to 850C |
|
(For Singlemode) |
Ferrule Endface Radius |
| 7mm ≤ R ≤ 12mm (For APC) | |
| 10mm ≤ R ≤ 25mm (For Standard) | |
| Apex Offset ≤ 30 μm (For Master) | |
| Apex Offset ≤ 50 μm (For Standard) | |
| Undercut -50nm ≤ U ≤ 50nm | |
| Tested by DORC ZX-1 |
Order information of FC to LC Singlemode Simplex Fiber Optic Patch Cord
1. Connector type: FC, ST, SC, LC, MU, MPO, E2000, MTRJ, SMA,
2. End face: UPC PC APC
3. Cable diameter: Ф0.9mm, Ф1.6mm,Ф1.8mm, Ф2mm, Ф2.4mm, Ф3mm.
4. Fiber count: simplex, duplex, 4 core, 6 core, 8 core, 12 core or customer specified
5. Fiber types: G652B, G652D, G655, G657A1, G657A2, 50/125,um 62.5/125um,
OM3 (50/125-150), OM4 (50/125-300) etc.
6. Connector housing color: Blue (single mode PC, UPC connector), beige, grey (multimode connector), green (APC connector), aqua (OM3)
7. Boot color : grey,blue, green, white, red, black, green
8. Cable jacket: PVC, LSZH
9. Cable length: customized
|
|
