| Connector: | LC/APC To LC/APC | Material: | PVC,LSZH |
|---|---|---|---|
| Color: | Yellow | Jacket OD: | 0.9mm/2.0mm/3.0mm |
| Application: | FTTH/Test Equipments/TV/LAN/Telecommunication Equipments | Insertion Loss: | ≤0.3dB,≤0.1dB |
| Fiber Type: | G657A1/A2, G652D, | Return Loss: | ≥55dB,≥50dB |
| Fiber Count: | Simplex | Cable Length: | 1m 2m 3m Or Customized |
| High Light: | LC APC Fibre Patch Cords,Simplex SM Fibre Patch Cords |
||

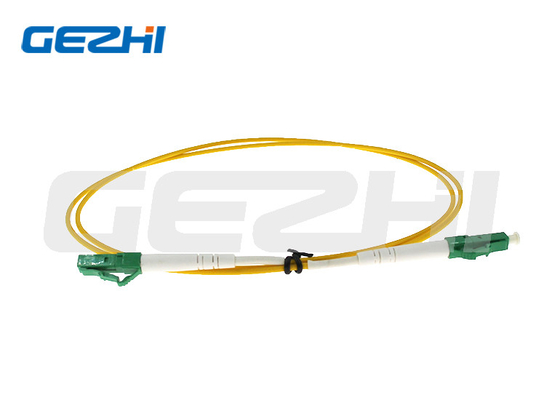

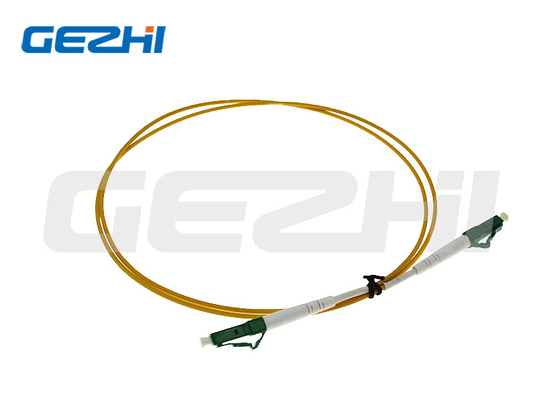

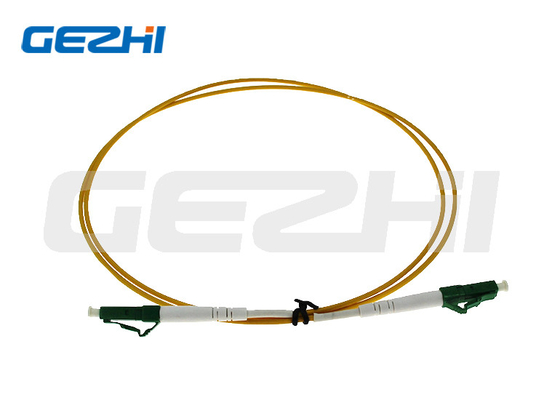

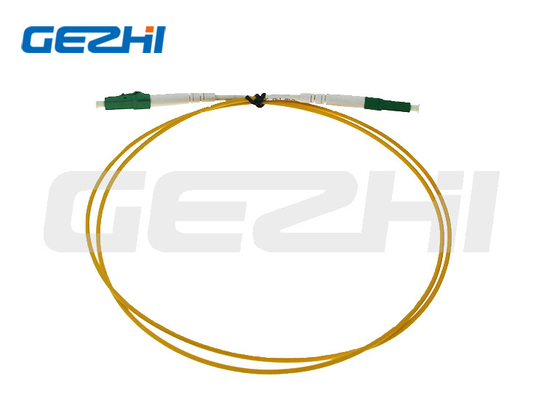

LC/APC To LC/APC Fibre Patch Cords Simplex SM for Telecommunication Equipments(LSZH)
Product Overview
Fiber optic patch cable is also known as fiber patch cord, optical cable, or fiber optic jumper. As an important component commonly used in fiber-optic networks, high-quality patch cables are essential for any high-performance fiber-optic network. Gezhi offers many choices of different lengths, jacket materials, and cable diameters. Fiber optic patch cables are commonly used in carrier equipment, telecommunications, patch field, and CATV applications. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality, which is ideal for fiber cabling infrastructure.
Product's Applications&Features
| Applications: | Features: |
| Industrial & Military | Low insertion loss |
| Data center cabling | 100% inspected for optical characteristics before shipment |
| Links between electronic equipment and fiber | 100% end face inspected |
| Telecommunication network | ROHS, CE compliant |
| Fiber patch panel within communication closets | High-quality, machine-polished connectors |
| Backbone installation | Stable capability and high reliability |
| Building interconnections (campus LAN) |
Specification
| Item Name |
Unit |
LC/APC - LC/APC Fiber Optic Patch Cord | |
| Grade S (Standard) | Grade P (Premium) | ||
| Fiber Type | um | 9/125 | 9/125 (Corning) |
| Polishing | --- | APC | |
| Insertion Loss | dB | ≤0.3 | ≤0.1 |
| Return Loss | dB | ≥50 | ≥55 |
| Repeatability | dB | ≤0.1 | |
| Interchangeability | dB | ≤0.2 | |
| Operating Temp. | ℃ | -25 ~ +70 | |
| Durability | times | ≥1,000 | |
| Tensile Strength | N | ≥90(Φ3.0), ≥70(Φ2.0) | |
| Diameter | mm | 0.9, 2.0, 3.0, or customized | |
| Fiber Count | --- | Simplex or Duplex | |
| Material | --- | PVC, LSZH | |
