Product Details:
Payment & Shipping Terms:
|
| Fiber Type: | SMF-28e Or Customized | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Warranty Time: | 3 Years | Channel Number: | 8ch Mux Demux |
| Fiber Connector: | LC/UPC, FC/APC, SC/APC Etc. | Center Wavelength: | 1270nm-1610nm |
| Package: | 1U Rack Mounted |

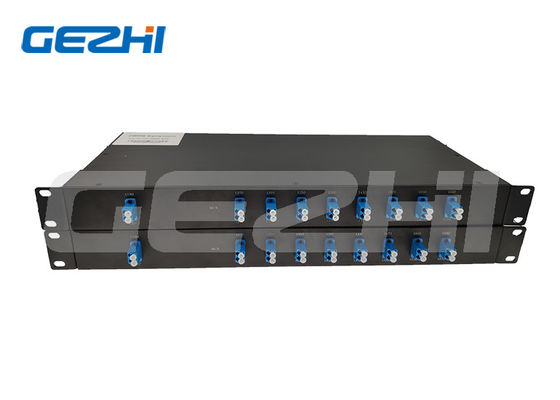

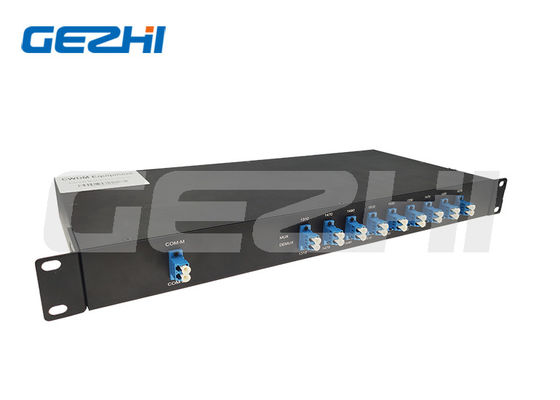

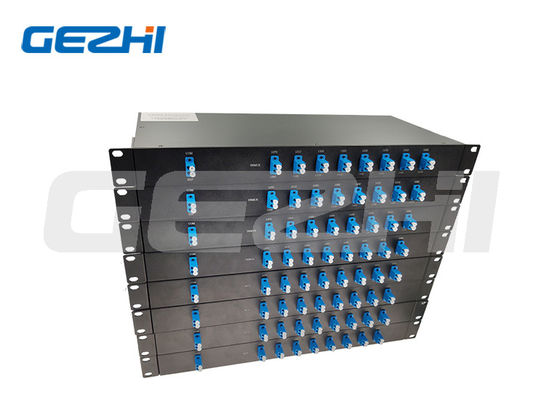

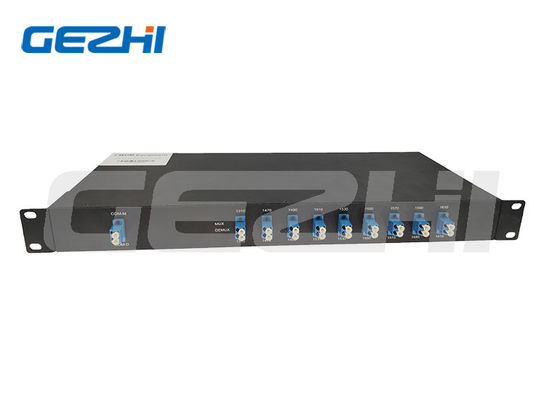

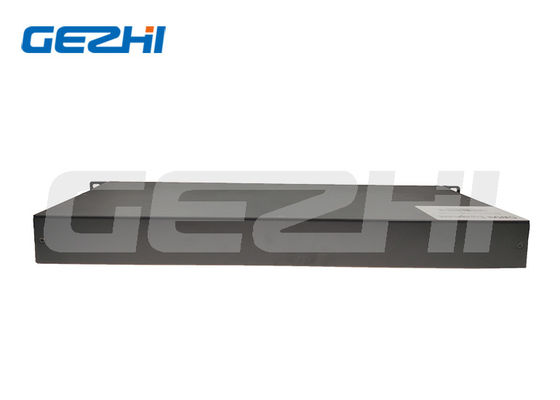

PON CATV Systems Passive Fiber Multiplexer 8ch CWDM Mux/Demux 1U Chassis Rackmount 1470~1610nm
Product Overview
CWDM is using optical multiplexer to different wavelengths of light to reuse the signals to single fiber transmission, the receiving end of the link, with the aid of photolysis multiplexer to mixed signal in the optical fiber signal is decomposed into different wavelengths, connected to the corresponding receiving equipment.
Features
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good Channel-to-channel UniformityWide Operating Wavelength:1260nm~1620nm or 1460nm~1620nm
Wide Operating Temperature:-5℃~75℃
High Reliability and Stability
Applications
CWDM System
PON Networks
CATV Links
Parameters
| Parameter | 4 Channel | 8 Channel | 16 Channel | ||||||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||||||
| Channel Wavelength(nm) | 1270~1610 | ||||||||||
| Center wavelength Accuracy(nm) | ±0.5 | ||||||||||
| Channel Spacing(nm) | 20 | ||||||||||
| Channel Pass band(@-0.5dB bandwidth (nm) | >14 | ||||||||||
| Insertion Loss(dB) | ≤1.4 | ≤2.6 | ≤5.0 | ||||||||
| Channel Uniformity (dB) | ≤0.5 | ≤0.5 | ≤0.5 | ||||||||
| Channel Ripple (dB) | 0.3 | ||||||||||
| Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 | ||||
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |||||
| Insertion Loss Temperature Sensitivity (dB/℃) | <0.005 | ||||||||||
| Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||||||
| Polarization Dependent Loss (dB) | <0.1 | ||||||||||
| Polarization Mode Dispersion (PS) | <0.1 | ||||||||||
| Directivity (dB) | >50 | ||||||||||
| Return Loss(dB) | >45 | ||||||||||
| Maximum Power Handling(mW) | 500 | ||||||||||
| Operating Temperature(℃) | -5~+75 | ||||||||||
| Storage Temperature (℃) | -40~85 | ||||||||||
| Package dimension(mm) | 1. L100 x W80 x H10 ( 2 CH~8CH Module) | ||||||||||
| 2. L120xW800xH18 (9 CH~18CH Module) | |||||||||||
Remark: Above is without connectors,if with connectors,add more 0.2dB.
