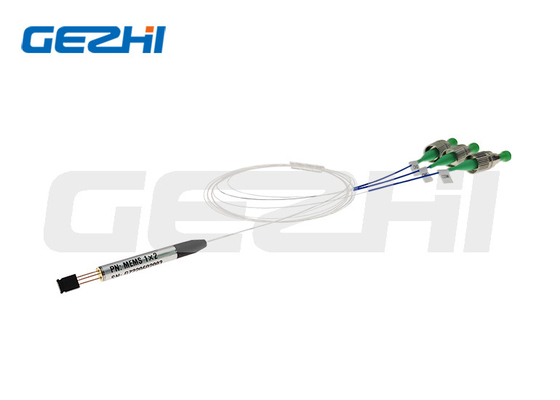

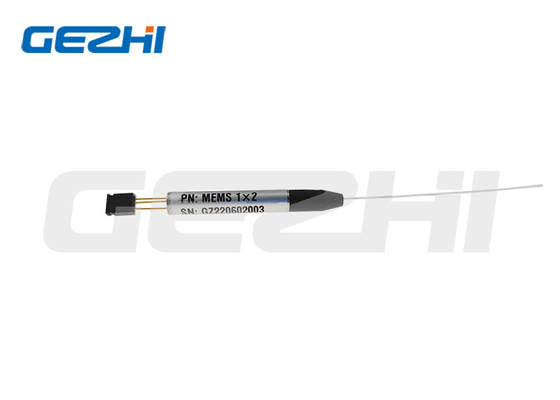

Low PDL WDM System MEMS Variable Optical Attenuator Optic Fiber Variable Attenuator VOA

Name: Low PDL WDM System MEMS Variable Optical Attenuator Optic Fiber Variable Attenuator VOA
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: VOA&MEMS VOA
Price: 535.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	VOA&MEMS VOA
MOQ:	1pc
Price:	Negotiable
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Model Number:

MEMS VOA

Type:

VOA

Use:

Optical Power Testing

Warranty Time:

3 Years

Network:

Optical Fiber Network

Wavelength:

1290~1330&1525~1570&1570~1610

Packaging Details:

Paper box

Highlight:

Low PDL WDM System

MEMS Variable Optical Attenuator

Optic Fiber Variable Attenuator VOA

Product Description

Low PDL WDM System MEMS Variable Optical Attenuator optic fiber variable attenuator VOA

Product Description

Gezhi Photonics MEMS attenuators (MEMS VOAs) are based on a micro-electro-mechanical system (MEMS) technology. The MEMS attenuators design achieves highly repeatable optical attenuation over C and/or L band through an electrically movable mirror on silicon.

Product Features

Low insertion loss
Low polarization dependent
Compact size
Available in both normally open and normally closed states
Excellent reliability

Product Application

Power Management
Receiver protective
Channel Balance
Instrumentation

Product Specifications

Parameters	Unit	Values
Operating Wavelength	nm	1530~1570; 1570~1610
Attenuation Type	dB	Bright or Dark
Attenuation Range	dB	≥30
Blacking State Attenuation (Dark Type)	dB	≥40
Insertion Loss (Excluding Connector)	dB	≤0.7 (Typ. 0.5)
PDL	dB	≤0.3 (Att. <0dB), ≤1.5 (Att. <20dB)
WDL	dB	≤0.1 (Att. <0dB), ≤0.3 (Att. <20dB)
TDL	dB	≤0.2 (Att. <0dB), ≤1.0 (Att. <20dB) Compare with RT
PMD	ps	≤0.1
Response Time	ms	≤2 (Typ 1)
Input Optical Power	mW	≤300
Power Consumption	mW	≤2
Driving Voltage	VDC	5.2V or 15V
Return Loss	dB	≥55
Fiber Type		SMF-28e
Operating Temperature	℃	0 ~ +70
Storage Temperature	℃	-40 ~ +85

Mechanical Drawings

Low PDL WDM System MEMS Variable Optical Attenuator Optic Fiber Variable Attenuator VOA 0

MEMS Variable Optical Attenuator (Mems VOAs)

Ordering Information

Type

Wavelength

Attenuation Range

Operating Voltage

Pigtail Type

Fiber Type

Length

Connector

D=Dark; B=Bright

1550=1530~1570nm; 1590=1570~1610nm;

15=15dB; 20=20dB; 25=25dB; 30=30dB;

5.2=5.2V; 15=15V;

250=250um Fiber;

1=SMF-28e;;

1= 1m

NE=None FA=FC/AC

FC=FC/PC SA=SC/AC SC=SC/PC

LC=LC/PC

X=Other
