1×N MEMS Optical Switch | Single Mode & Multi Mode MEMS Fiber Optical Switch - Gezhi Photonics

Name: 1×N MEMS Optical Switch | Single Mode & Multi Mode MEMS Fiber Optical Switch - Gezhi Photonics
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: MEMS-D-
Price: 438.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	MEMS-D-
MOQ:	1pc
Price:	US$188-US$688
Delivery Time:	2-3weeks

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Document:

1xN MEMS Optical Switch dev...ce.pdf

Connector Type:

FC/SC/LC...

Switching Time:

≤8ms

Insertion Loss:

1×2 ≤0.8dB；3≤N≤8 ≤1.0dB；17≤N≤32 ≤1.5dB；33≤N≤64 ≤1.7dB

Control Voltage:

≤60V

Max Optical Power:

≤500mW

Operating Temperature:

-20℃ ~ +85℃

Packaging Details:

Paper box

Supply Ability:

2000pcs per month

Product Description

High Performance 1×N MEMS Optical Switch Device – Single Mode & Multi Mode Versions

Product Introduction

Gezhi Photonics 1×N MEMS Optical Switch is a miniature MEMS fiber switching component designed for fiber communication, PON network, optical instrumentation and network monitoring systems. This non-latching MEMS optical switch provides single mode (max 1×64 channels) and multi mode (max 1×16 channels) two series, featuring ultra compact cylindrical housing, fast switching speed, low insertion loss, excellent wavelength/thermal/polarization dependent loss performance and ultra-long service life up to 10 billion switching times.

Key Features

1.Ultra Compact Cylindrical Structure	Two size specifications: Φ5.5×42mm (N≤7 channels), Φ6.0×47mm (8≤N≤64 channels), small footprint for compact optical modules
2.Ultra Fast Switching Time	Switching time ≤8ms, instant optical path switching for real-time network protection
3.Low Insertion Loss	Graded loss design for different channel counts, single mode 1×2 only ≤0.8dB insertion loss
4.Superior Optical Consistency Index	WDL≤0.3dB, TDL≤0.3dB, PDL≤0.1dB, repeatability ≤±0.05dB, stable signal transmission
5.High Isolation & Return Loss	Return loss ≥50dB (single mode), crosstalk ≥45~50dB, effectively avoid optical signal crosstalk interference
6.Ultra Long Service Life	Durability ≥10 billion switching cycles, stable long-term operation
7.Wide Operating Environment Adaptability	Operating temperature: -20℃ ~ +85℃, storage temperature: -40℃ ~ +85℃, humidity 5%~95% RH
8.Non-latching Switching Mode, Control Voltage ≤60V, Max bearing optical power 500mW

Applications

Fully applicable to optical communication and optical test industries, main scenarios:

PON Optical Access Network
Fiber Link Automatic Protection Switching
Optical Test Instrumentation & Lab Testing Equipment
Optical Fiber Network Real-time Monitoring System
Optical signal routing, multi-channel optical signal distribution

Performance Specifications

Single Mode 1×N MEMS Optical Switch (N ≤ 64)

Parameter	Unit	Technical Index
Operating Wavelength	-	O band (1290~1330nm), L+ band (1625~1650nm)
Insertion Loss	dB	1×2 ≤0.8；3≤N≤8 ≤1.0；17≤N≤32 ≤1.5；33≤N≤64 ≤1.7
WDL	dB	≤0.3
TDL	dB	≤0.3
PDL	dB	≤0.1
Return Loss	dB	≥50
Crosstalk	dB	2≤N≤32 ≥50；33≤N≤64 ≥45
Repeatability	dB	≤±0.05
Switching Time	ms	≤8
Mechanical Durability	times	≥10,000,000,000
Control Voltage	V	≤60
Switching Mode	-	Non-latching
Max Optical Power	mW	≤500
Operating Temperature	℃	-20 ~ +85
Storage Temperature	℃	-40 ~ +85
Operating Humidity	%RH	5 ~ 95
Dimension	mm	N≤7: Φ5.5×42；8≤N≤64: Φ6.0×47

Multi Mode 1×N MEMS Optical Switch (N ≤ 16)

Parameter	Unit	Technical Index
Operating Wavelength	nm	850±30, 1310±30
Insertion Loss	dB	N≤12 ≤1.0；13≤N≤16 ≤1.2
WDL	dB	≤0.3
TDL	dB	≤0.4
PDL	dB	≤0.2
Return Loss	dB	≥30
Repeatability	dB	≤±0.05
Switching Time	ms	≤8
Mechanical Durability	times	≥10,000,000,000
Control Voltage	V	≤60
Switching Mode	-	Non-latching
Max Optical Power	mW	≤500
Operating Temperature	℃	-20 ~ +85
Storage Temperature	℃	-40 ~ +85
Operating Humidity	%RH	5 ~ 95
Dimension	mm	N≤7: Φ5.5×42；8≤N≤16: Φ6.0×47

Optical Route & Mechanical Dimension

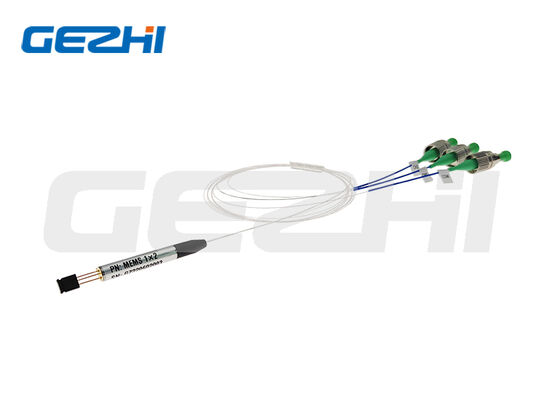

1×N MEMS Optical Switch | Single Mode & Multi Mode MEMS Fiber Optical Switch - Gezhi Photonics 0

Optical Route: Common port (COM) single fiber input, switch to any one of N output channels
Housing Size
- Small size (N≤7): Φ5.5×42mm, 3Pin control pinout: Pin1=GND, Pin2=X, Pin3
- Large size (8≤N≤64): Φ6.0×47mm, 5Pin control pinout: Pin1=GND, Pin2=X, Pin3=Y
Cylindrical metal shell, tail fiber outgoing, compatible with various fiber connectors

Ordering Information & Model Code

Model Code Format: MEMS-D-[Channel]-[Wavelength]-[Fiber Type]-[Fiber Diameter]-[Fiber Length]-[Connector]

Channel Code:	02=1×2, 04=1×4, 08=1×8, 16=1×16
Wavelength Code:	85=850nm, 13=1310nm, 14=1490nm, 15=1550nm, 1625=1625nm, 1650=1650nm,13/15=Dual 1310/1550nm
Fiber Type:	5=50/125μm, 6=62.5/125μm, 9=9/125μm, X=Custom fiber
Fiber Diameter:	25=250μm coating, X=Custom
Fiber Length:	05=0.5m, 10=1.0m, X=Custom length
Connector:	00=None, FP=FC/PC, FA=FC/APC, SP=SC/PC, SA=SC/APC, LP=LC/PC, LA=LC/APC

Example: MEMS-D-16-15-9-25-10-LA → 1×16 single mode 1550nm, 9/125 fiber, 250μm coating, 1m fiber, LC/APC connector

Frequently Asked Questions

Q1: What is a 1×N MEMS optical switch used for?

A: Our MEMS 1×N fiber switch is mainly used for PON network access, fiber link protection, optical test instruments and fiber network monitoring, to realize automatic routing switching of multi-channel optical signals.

Q2: What is the maximum channel of your single mode MEMS optical switch?

A: Single mode version supports up to 1×64 channels; multi mode version max 1×16 channels.

Q3: Is this MEMS optical switch latching or non-latching type?

A: All our MEMS-D series adopt non-latching switching mode, control voltage ≤60V.

Q4: How many times can the MEMS optical switch be switched?

A: Mechanical durability reaches ≥10 billion switching cycles, long service life for industrial continuous use.

Q5: What fiber connectors can be customized?

A: Support FC, SC, LC PC/APC connectors, bare fiber without connector is also optional.

Manufacturer: Gezhi Photonics Co.,Ltd

Professional supplier of MEMS optical switch, fiber coupler, optical passive components for global fiber communication industry. Custom specifications, OEM & ODM service available. Official website: www.gezhiphotonics.com
