Product Details:
Payment & Shipping Terms:
|
| Model Number: | 1x8 MEMS Optical Switch | Type: | MEMS Optical Switch Module |
|---|---|---|---|
| Use: | Data Center | Warranty Time: | 3 Years |
| Fiber Mode: | SM/MM | Application: | Instrumentation |
| Operating Wavelength: | 1260~1650 For SM,850/1310 For MM | Connector Type: | LC/SC/FC/ST Or Others |
| High Light: | Multimode MEMS 1x8 Module,MEMS 1x8 Module,MEMS Monitoring 1x8 Optical Switch |
||

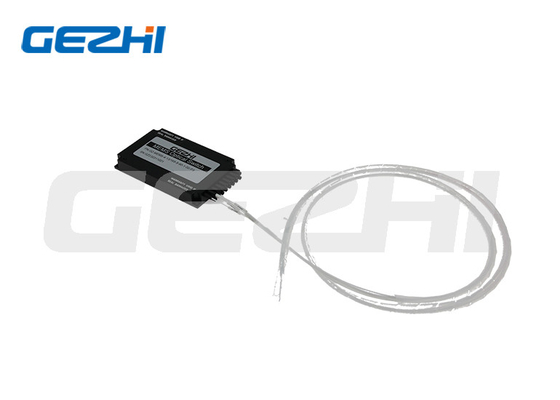

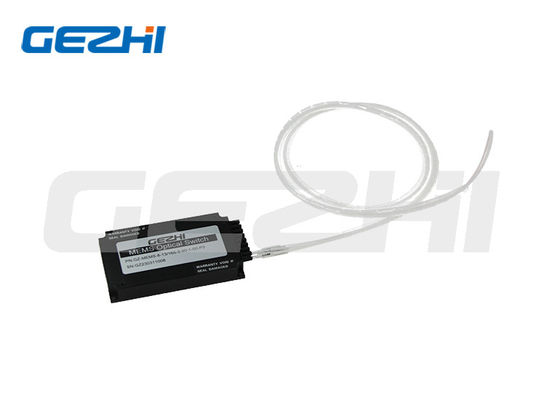

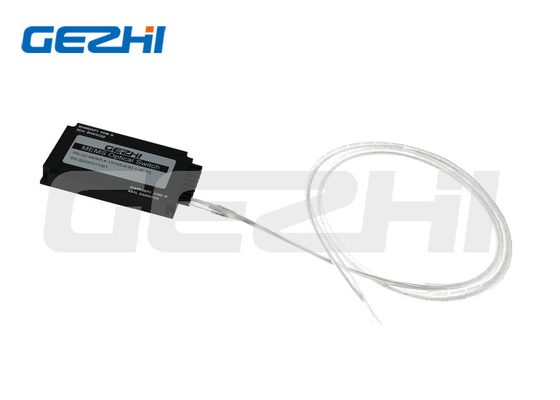

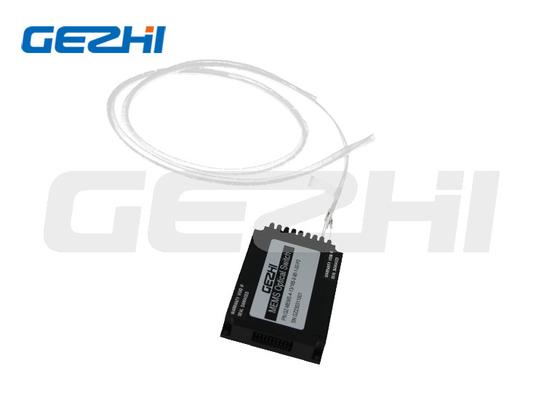

Single mode and Multimode MEMS 1x8 Module Data Center Fiber Sensing and Monitoring 1x8 Optical Switch
Product Description MEMS 1x8 Optical Switches
|
Features of 1x8 MEMS Optical Switches
|
Applications of 1x8 MEMS Optical Switches |
|
Single mode and Multi-mode |
Optical network protection/restoration |
|
Base on MEMS technology |
R&D in Laboratory |
|
1XN up to 1x64,Small package |
Network Security and Monitoring |
|
Low insertion loss,Fast switching time |
Optical reconfiguration |
|
High Stability,High Reliability |
Secure Communications
|
Specifications of MEMS 1x8 Optical Switches
| Parameter | Multi-Mode |
| Wavelength range (nm) | 700~1700 |
| Insertion loss1 (dB) | ≤1.6 (Typ 0.5) |
| Crosstalk (dB) | ≥ 45 (Typ 55) |
| Backreflection (dB) | ≥ 35(Typ 45) |
| Polarisation Dependent Loss (dB) | ≤0.20(Typ 0.07) |
| Switch time (ms) | ≤20 (Typ 2) |
| Switching Voltage ( V ) | ≤5 |
| Fiber Pigtail (µm) | 62.5/125/900 or 50/125/900 |
| Durability (cycles) | no wear out |
| Power Consumption (mW) | Typ :40 |
| Operation temperature(℃) | 0~70 |
| Storage temperature (℃) | -40~85 |
| Package Size (L x W x H) (mm) | 76 x 93 x 9.5 |
| Parameter | Single Mode |
| Wavelength range (nm) | 1240~1640 |
| Insertion loss (dB) | ≤1.6 (Typ 1.2) |
| Crosstalk (dB) | ≥ 60 (Typ 75) |
| Backreflection (dB) | ≥ 45 (Typ 55) |
| Polarisation Dependent Loss (dB) | ≤0.12 |
| Switch time (ms) | ≤1 (Typ 0.5) |
| Switching Voltage ( V ) | ≤5 |
| Fiber Pigtail (µm) | 9/125/900 |
| Durability (cycles) | no wear out |
| Power Consumption (mW) | Typ:40 |
| Operation temperature(℃) | 0~70 |
| Storage temperature (℃) | -40~85 |
| Package Size (L x W x H) (mm) | 76 x 93 x 9.5 |
Ordering Information
| A | B | C | D | E | F |
| Type | Wavelength | Fiber Length (m) | Fibre type | Fiber diameter | Connector |
| 1x8 Specify Custom |
1=850nm 2=1310nm 3=1490nm 4=1550nm 5=1625nm 6=1310/1550nm 7=850/1310nm S=Specify Custom |
0.5=0.5m 1.0=1.0m 1.5=1.5m S=Specify Custom |
9=SMF28,9/125 50=MM 50/125 62=MM 62.5/125 S=Specify Custom |
1=250um bare fibre 2=900um loose tube 3=2.0mm loose tube S=Specify Custom |
OO=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC SP=ST/PC SA=ST/APC LP=LC/PC LA=LC/APC X=Others |
