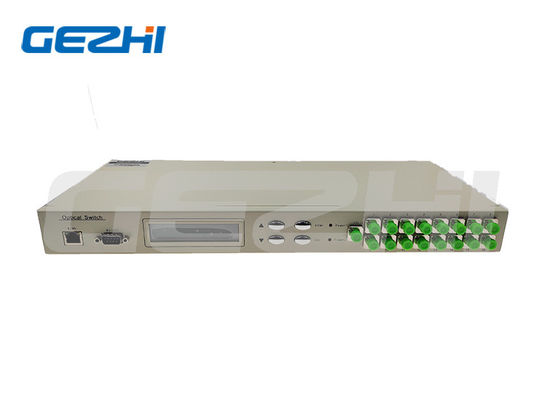

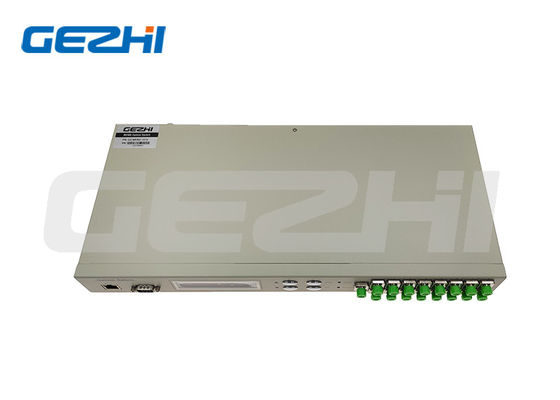

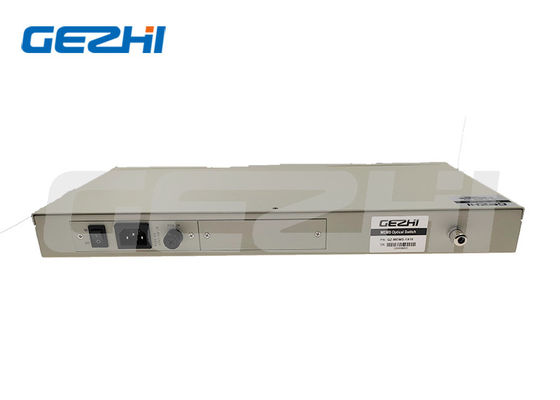

1x16 Rackmount Optical Switch with RS232 and Ethernet Interface for 850~1650nm Wavelength Secure Communications

Name: 1x16 Rackmount Optical Switch with RS232 and Ethernet Interface for 850~1650nm Wavelength Secure Communications
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1x16 Optical Switch Rackmount
Price: 430.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1x16 Optical Switch Rackmount
MOQ:	1pc
Price:	US$380-US$480
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Model Number:

1x16 Optical Switch Rackmount

Type:

Optical Switch Rackmount

Use:

Secure Communications

Warranty Time:

3 Years

Fiber Mode:

SM/MM

Application:

Testing Of Fiber,optical Component

Operating Wavelength:

850~1650

Packaging Details:

Paper box

Highlight:

1X16 Optical Switch

Multimode Rackmount Optical Switch

1x16 Optical Switch Rackmount

Product Description

Single Mode and Multimode Rackmount 1X16 Optical Switch

Rack Mount 1X16 Optical Switches enable automated and repeatable connection of one common fiber to 16 output or input fibers. These all-optical switches are bi-directional and can be used in either 1x16 or 16x1 direction. Available in any 1xN size up to 1x128.

Key Features

Low loss, high reliability, and exceptional stability
Multiple configuration possibilities
Easy-to-use rackmount housing with LCD display
RS232 and Ethernet interface for versatile control
User-friendly operation and management

Applications

High-volume production testing
Testing of fiber and optical components
Dynamic management of optical networks
Secure communications systems

Technical Specifications

Parameters	Unit	GEZHI-FSW-1X16
Operating wavelength	nm	850±40 / 1300±40 \| 1260~1650
Test Wavelength	nm	850/1300 \| 1310/1550
Insertion loss	dB	Typ:0.8 Max:1.0
Return loss	dB	SM≥55 MM≥30
Crosstalk	dB	≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.05
Lifetime	times	≥107
Transmission power	mW	≤500
Switch time	ms	≤10 (Sequence switch time of adjacent channel)
Operating temperature	℃	-10～+60
Storage temperature	℃	-40～+80
Relative Humidity	%	5 ~ 95
Supervision interface		Ethernet Interface and RS232 (or RS-485)
Power supply	V	AC 85-264V, 50/60Hz OR DC (36-72)V
Dimensions	mm	1U L483XW200XH44 (Up to 20 channel) customization available 2U L483XW303XH89 (Up to 64 channel) customization available 3U L483XW303XH139 (Up to 128 channel) customization available 4U L483XW303XH177 (Up to 256 channel) customization available

Optical Path Configuration

Ordering Information

N Channel	A Package	B Mode	C Wavelength	D Voltage Type	E Fiber type	F Connector
1~32 32~64 64~128 128~256 256~512	1U 2U 3U 4U 6U 8U X: Other	S:SM M:MM X: Other	85: 850nm 13: 1310nm 15: 1550nm 13/15:1310/1550nm X: Other	AC: 85-264V DC: 36-72V AC/ DC: 220V&48V	5:50/125 6:62.5/125 9: 9/125 X: Other	FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC SP: ST/PC SA: ST/APC LP: LC/PC LA: LC/APC X: Other
