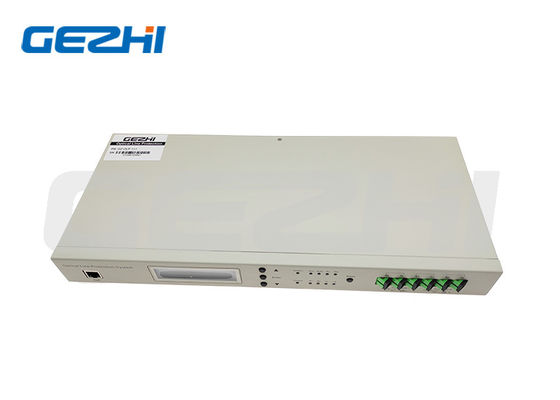

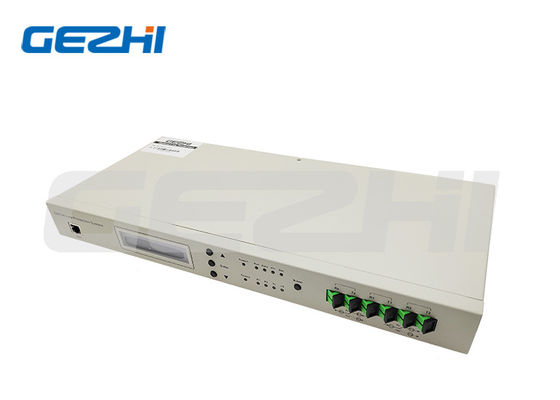

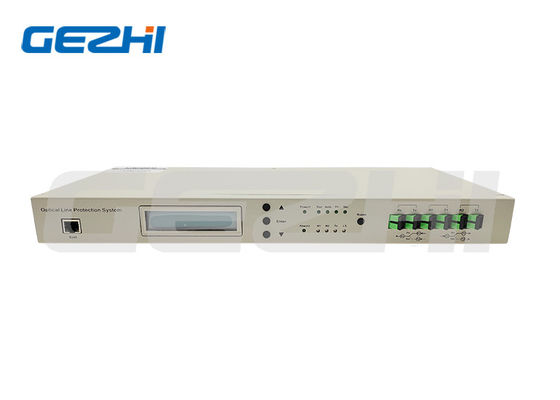

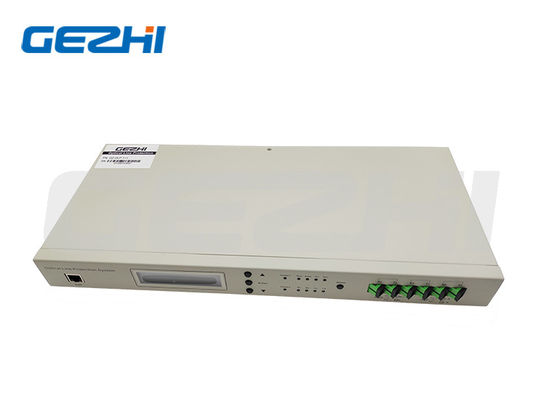

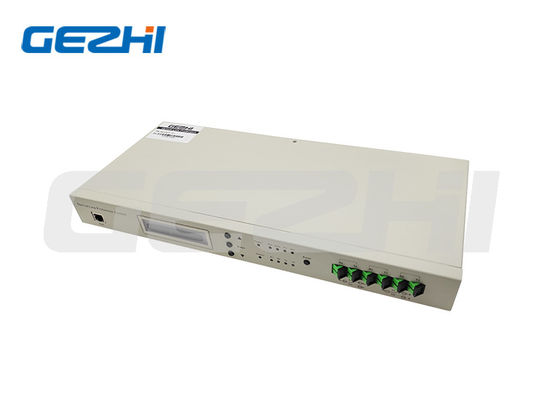

1U 1+1 OLP Optical Line Protection System with High Switch Speed and SC APC Connector for Reliable Fiber Line Protection

Name: 1U 1+1 OLP Optical Line Protection System with High Switch Speed and SC APC Connector for Reliable Fiber Line Protection
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GEZHI-OLP
Price: 320.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GEZHI-OLP
MOQ:	1pc
Price:	US$280-U$360
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name::

1U 1+1 OLP Optical Line Protection System

Working Wavelength:

1310±50nm, 1550±50nm

Optical Power Range::

+23~-50

Accuracy Of Optical Power:

±0.25

Wavelength Dependent Loss:

≤0.1

Polarization Dependent Loss:

≤0.05

Low Noise Figure:

<4.5dB

Warranty:

3 Years

Packaging Details:

Paper box

Highlight:

1U Optical Line Protection System

SC APC OLP

High Switch Speed OLP

Product Description

1U 1+1 OLP Optical Line Protection System High Switch Speed SC APC

Gezhi Photonics's Optical Line Protection (OLP) system is a new optical line protection subsystem developed with advanced technology of dynamic and synchronous optical switches. When communication quality is lower or equipment breaks down due to accidental fracture or bigger loss of optical fiber in the optical transmission line, the OLP system can switch the primary line to the secondary line within a short time, to ensure normal operation communication of line, which effectively prevent fiber or equipment fault and shorten the recovery time from hours to milliseconds.

Optical Line Protection switch provides both Manual and Automatic switching mode. In Manual mode, the system switches optical path only based on the commands from user. In the Automatic mode, the system switches based on the power level detected and the preset threshold. Under automatic mode, the system can be set to be revertive or Non-revertive modes. Under Revertive mode, the system switches back to the working path automatically after the fault condition is cleared. Under Non-revertive mode, the system does not switch back.

Key Features

Support automatic switching of primary and secondary routes
Support manual and automatic switching modes
Low switching time <30ms
Low insertion loss: <5.5dB
Support automatic return to the Primary
Support manual, automatic working mode settings
Support for switching threshold settings

Applications

Optical line automatic switching protection
Real-time power monitoring
Support automatic switching of primary and secondary routes

Technical Specifications

Parameter	1:1	1+1	Unit
Operating Wavelength	1310±50nm, 1550±50nm		nm
Optical Power Range	＋23～-50		dbm
Accuracy of Optical Power	±0.25		db
Detection Light Power Resolution	±0.01		db
Return Loss	≥55		db
Polarization Dependent Loss	≤0.05		db
Wavelength Dependent Loss	≤0.1		db
Insertion Loss	Tx≤1.2dB RX≤1.2dB	Tx≤4dB RX≤1.2dB	db
Switch Speed	<30	<15	ms
Dimension	191 (W) x 253 (D) x 20 (H)		mm
Operating Temperature	-10℃～+60℃		℃
Storage Temperature	-40℃～+85℃
Relative Humidity	5%~95% Non-condensing
Power Consumption	≤5		W

Ordering Information

Item	Optical Path	Wavelength	Power Supply	Connector
GZ-OLP	1:1=1:1 1+1=1+1 1-1=1-1	13/15=1310/1550	1AC=Single AC85~265V 1DC=Single DC36~72V 2AC=Dual AC85~265V 2DC=Dual DC36~72V ADC=AC and DC	SP=SC/PC SA=SC/APC LP=LC/PC LA=LC/APC FP=FC/PC FA=FC/APC S=Specify
