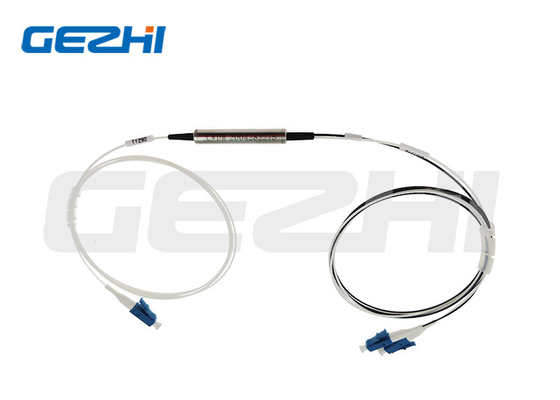

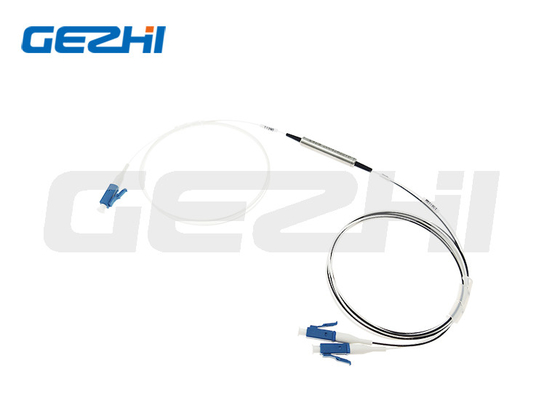

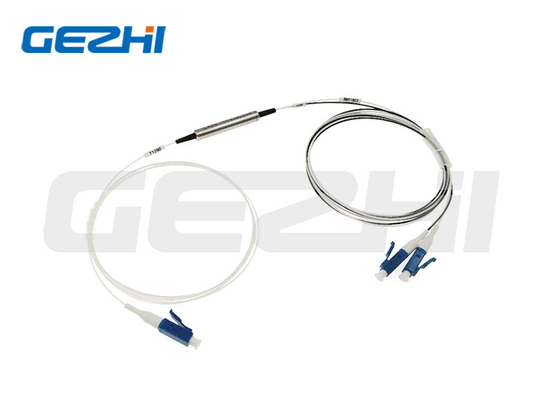

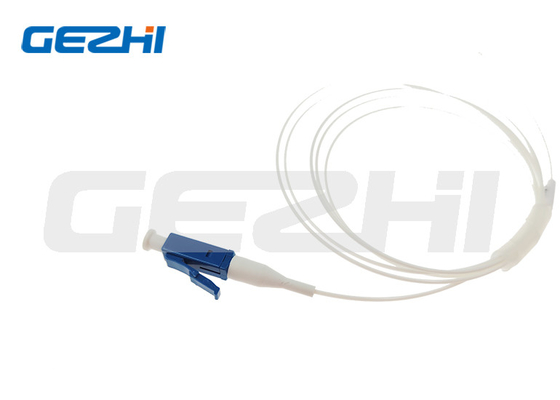

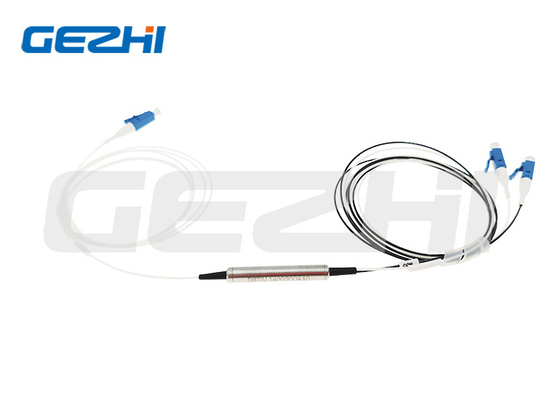

1x2 LC APC Filter Optic CWDM Mux Demux with 900um Loose Tube, Low Insertion Loss, and High Channel Isolation

Name: 1x2 LC APC Filter Optic CWDM Mux Demux with 900um Loose Tube, Low Insertion Loss, and High Channel Isolation
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1x2 Passive 900um Loose Tube LC APC Filter Optic CWDM
Price: 48.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1x2 Passive 900um Loose Tube LC APC Filter Optic CWDM
MOQ:	1pc
Price:	US$28-US$68
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength:

1270~1610nm

Package:

Steel Tube,ASB Box

Pigtail Type:

250um Bare Fiber,900um Loose Tube,2.0mm,3.0mm

Connector Type:

FC,SC,LC,ST Or Customized

Application:

WDM Network

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Filter Optic Passive Dwdm Mux Demux

LC APC Passive Dwdm Mux Demux

Passive Wdm Mux Demux

Product Description

1x2 LC APC Filter Optic Passive DWDM Mux Demux 900um Loose Tube

1x2 Passive 900um Loose Tube LC APC Filter Optic CWDM

Product Overview

Coarse wavelength division multiplexer (CWDM) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.

Key Features

Low Insertion Loss
Wide Pass Band
High Channel Isolation
High Stability and Reliability
Epoxy-free Optical Path

Applications

Line Monitoring
WDM Network
Telecommunication
Fiber Optical Amplifier
Access Network

Technical Specifications

Parameter	Specification
Channel Wavelength (nm)	1270~1610 or 1271~1611
Channel Spacing (nm)	20
Channel Passband (@-0.5dB bandwidth (nm)	>13
Pass Channel Insertion Loss (dB)	≤0.6
Reflection Channel Insertion Loss (dB)	≤0.4
Channel Ripple (dB)	<0.3
Isolation (dB) - Adjacent	≥30
Isolation (dB) - Non-adjacent	≥40
Insertion Loss Temperature Sensitivity (dB/℃)	<0.005
Wavelength Temperature Shifting (nm/℃)	<0.002
Polarization Dependent Loss (dB)	<0.1
Polarization Mode Dispersion (ps)	<0.1
Directivity (dB)	>50
Return Loss (dB)	>45
Maximum Power Handling (mW)	300
Operating Temperature (℃)	-20~+75
Storage Temperature (℃)	-40~+85
Package Dimension (mm)	Φ5.5xL38
