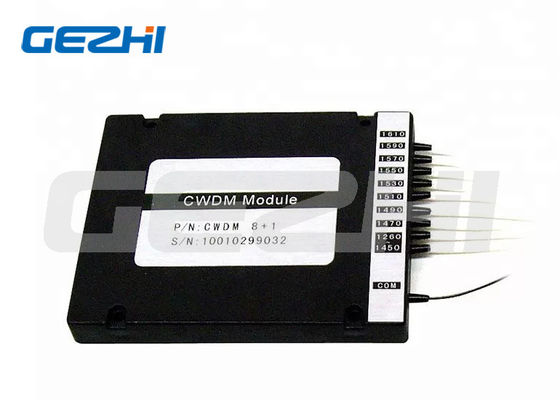

100G Passive Optical Add Drop Multiplexer OADM 4CH 8CH CWDM Module for WDM Networks

Name: 100G Passive Optical Add Drop Multiplexer OADM 4CH 8CH CWDM Module for WDM Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: CWDM WDM Mux / Demux
Price: 83.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	CWDM WDM Mux / Demux
MOQ:	1pc
Price:	US$58-US$108
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Connector Type:

Customizable

Applications:

CWDM System

Channel:

Customizable

Warranty:

3 Years

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Passive Optical Add Drop Multiplexer

WDM Optical Add Drop Multiplexer

8CH Cwdm Module

Product Description

OADM 100G Passive Optical Add Drop Multiplexer 4CH 8CH CWDM WDM Module

Product Overview

100G Fiber Optic Passive CWDM Module 4CH / 8CH CWDM WDM Mux / Demux Add Drop Multiplexer Devices

Product Description

GEZHI CWDM Optical Add/Drop Multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one or multiple CWDM channels into one or two fibers, while allowing the remaining wavelengths to bypass to their required destinations.

Applications

CWDM Systems
Add/Drop Networks
PON Networks
CATV Links

Key Features

Low Insertion Loss
High Isolation
Low PDL
Wide Operating Wavelength: 1260nm to 1620nm
Compact Design
High Reliability and Stability

Technical Specifications

Parameter	Value	Unit
Wavelength	1270~1610	nm
Insertion Loss	3.0	dB
Isolation	≥30 / ≥40	dB
Return Loss	>50	dB
Temperature Sensitivity	<0.005	dB/℃
PDL	<0.10	dB
PMD	<0.10	Ps
Directivity	≥50	dB
Maximum Input Power	300	W
Working Temperature	-20~+70	°C
Storage Temperature	-40~+85	°C
Fiber Type	SMF-28e
Package Dimensions	1008010 ABS Box	mm
Pigtail Options	250um/900um/2.0mm/3.0mm	mm

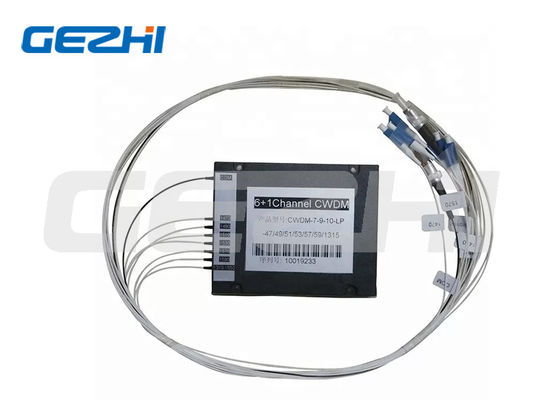

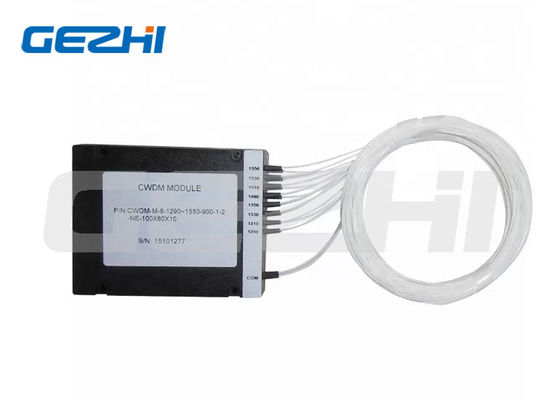

1*N CWDM Mux/Demux Module Configuration

Available in 4, 8, and 16 channel configurations with multiple wavelength, fiber diameter, length, and connector options to meet specific application requirements.

About Gezhi Photonics

Gezhi Photonics Co., Ltd is a professional manufacturer and provider of fiber optic products widely applied in Data Center, Telecom, CATV, FTTX, and fiber sensor applications. Founded in 2014, we are an OEM/ODM factory specializing in R&D, production, and marketing of both passive and active fiber optical components.
