1 Channel C35 Wavelength Single Fiber DWDM Optical Add Drop Multiplexer OADM Module

Name: 1 Channel C35 Wavelength Single Fiber DWDM Optical Add Drop Multiplexer OADM Module
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1CH-OADM-D-WE-S
Price: 20 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1CH-OADM-D-WE-S
MOQ:	1pc
Price:	US$20
Delivery Time:	5-8 work days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS ,ISO9001

Product Name:

1CH-OADM-D-WE-S

Wavelength:

C35

Channel Passband:

0.8nm (100Ghz)

Line Type:

West And East Single Fiber

Connector:

LC/UPC&SC/UPC

Application:

Wavelength Routing

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

1CH DWDM Module

C35 DWDM Multiplexer

One Way DWDM OADM

Product Description

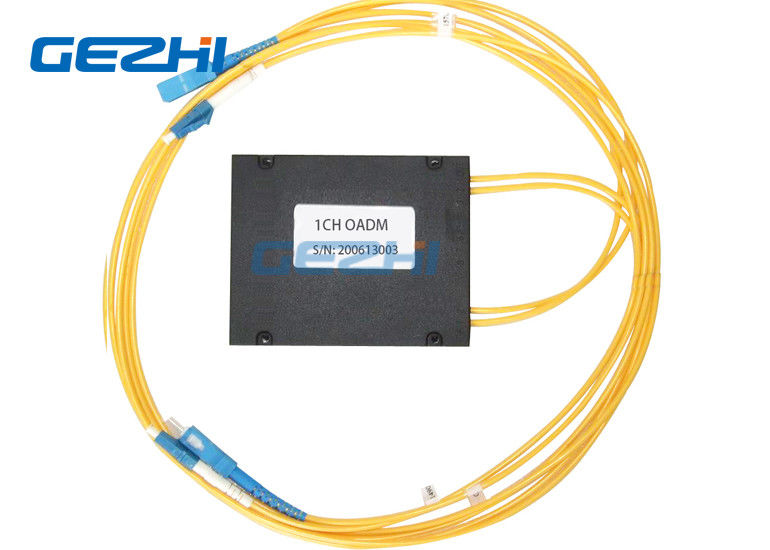

One Way Fiber 1CH DWDM Optical Add Drop Multiplexer Module

The GEZHI One Way 1CH DWDM Optical Add and Drop Multiplexer Module is a high-performance passive optical module housed in an ABS box enclosure. Utilizing thin film coating technology with C35 wavelength, this module provides low insertion loss and high-density functionality for advanced fiber optic networks.

Key Features

One way fiber operation
Low insertion loss performance
No electric power required
1 channel West & East configuration
Flexible OADM networking capabilities

Applications

Dense WDM Systems
CATV Fiber Optic Links
Long Haul Networks
Channel Add/Drop operations
Metro Networks
Wavelength Routing

Technical Specifications

Parameter	Unit	1CH BIDI OADM West and East
Channel Wavelength	nm	C35
Center wavelength Accuracy	nm	ITU-T Grid @DWDM
Channel Passband	nm	0.8 (100Ghz)
Insertion Loss	dB	<0.7 \| <0.7
Channel Ripple	dB	0.5
Isolation - Adjacent	dB	>30
Isolation - Non-adjacent	dB	>40
Insertion Loss Temperature Sensitivity	dB/℃	<0.005
Wavelength Temperature Shifting	nm/℃	<0.002
Polarization Dependent Loss	dB	<0.15
Polarization Mode Dispersion	dB	<0.1
Directivity	dB	>50
Return Loss	dB	>45
Maximum Power Handling	mW	300
Operating Temperature	℃	-20 to +70
Storage Temperature	℃	-40 to 85
Package dimension	mm	ABS Box 100x80x10

Single Fiber DWDM OADM Add and Drop Module

1 channel DWDM add & drop multiplexer for EAST & WEST configurations, designed for efficient data transmission over single fibers.

Filter Cascading Configuration

Network Solution Diagram
