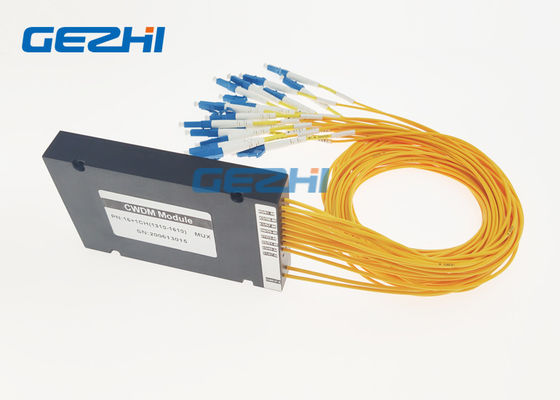

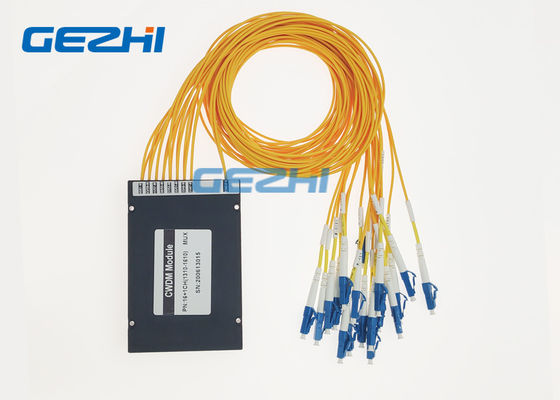

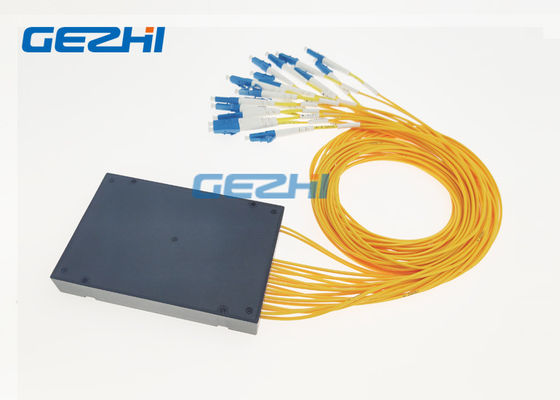

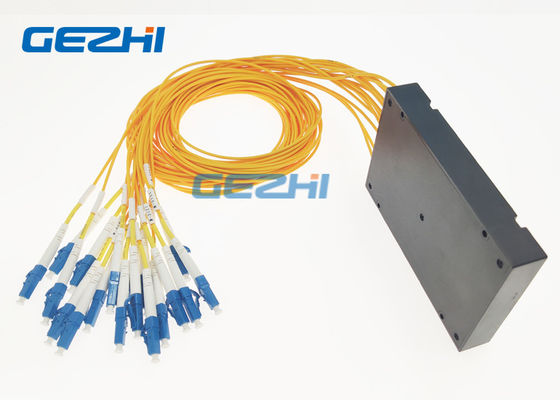

8 Channels Dual Sides CWDM Optical Add Drop Multiplexer

8 Channels Dual Sides CWDM Optical Add Drop Multiplexer
8 Channels Dual Sides CWDM Optical Add Drop Multiplexer 8 Channels Dual Sides CWDM Optical Add Drop Multiplexer 8 Channels Dual Sides CWDM Optical Add Drop Multiplexer 8 Channels Dual Sides CWDM Optical Add Drop Multiplexer

Large Image :  8 Channels Dual Sides CWDM Optical Add Drop Multiplexer

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS ,ISO9001
Model Number: 8CH-OADM-C-WE-S
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Product Name: 8CH-OADM-C-WE-S Wavelength: 1470nm~1610nm
Line Type: West And East One Fiber Connector: LC/UPC Adaptor
Package: ABS Box 120x80x18mm Application: Metro Networks
High Light:

8 Channels CWDM OAMD

,

8 CH oadm optical add drop multiplexer

,

Optical Add Drop Modules



8 Channels Dual-Sides CWDM Optical Add Drop Modules



GEZHI’ 8 Channels Dual-Sides CWDM Optical Add Drop Modules packed in a ABS Box which is a low insertion loss, passive optical module and based on the thin film coating technology with 1470nm to 1610nm wavelength. Its package one 8CH West and East CWDM OADM module in ABS box LC/PC pigtailes. This 8 Channels Dual-Sides CWDM Optical Add Drop Modules are used in WDM systems for multiplexing and demultiplexing and routing fiber optic signals, selectively adding and dropping individual or sets of wavelength channels from a DWDM stream. This GEZHI's 8 Channels Dual-Sides CWDM Optical Add Drop Modules are available in dual-sided (East and West) configurations supporting up to one wavelengths on single fiber.



      Features        Applications



  • Flexible OADM networking
  • 8 channels West & East dual sided
  • Sinlge Fiber Network
  • ABS Box LC/PC Pigtailed
  • Channel Add/Drop
  • Long Haul Networks
  • Dense WDM Systems
  • Metro Networks



Specification

Parameter



Unit

8CH CWDM OADM West & East
Add Drop
Channel Wavelength nm

1470~1610nm

Center wavelength

Accuracy

nm <14

Channel Passband

nm 0.8 (100Ghz)
Insertion Loss dB <2.5 <2.5
Channel Ripple dB 0.5
Isolation Adjacent dB >30
Non-adjacent dB >40

Inertion Loss Temperature

Sensitivity

dB/℃ <0.005

Wavelength Temperature

Shifting

nm/

<0.002

Polarization Dependent

Loss

dB <0.15

Polarization Mode

Dispersion

dB <0.1
Directivity dB >50
Return Loss dB >45
Maximum Power Handling mW 300
Opterating Temperature -20~+70
Storage Temperature -40~85
Package dimension mm ABS Box



8 Channels Dual-Sides CWDM Optical Add Drop Modules



8 Channels Dual Sides CWDM Optical Add Drop Multiplexer 0



Single Fiber CWDM OADM Add and Drop Module

8 channel CWDM add & drop multiplexer for EAST&WEST for data transmission over Single fibers.



8 Channels Dual-Sides CWDM Optical Add Drop Modules





8 Channels Dual Sides CWDM Optical Add Drop Multiplexer 1
