Dual Fiber 8CH Optical Passive DWDM Add Drop Channel

Name: Dual Fiber 8CH Optical Passive DWDM Add Drop Channel
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 8CH-OADM-D-WE-D-1U2Slot
Price: 85.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	8CH-OADM-D-WE-D-1U2Slot
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE RoHS ,ISO9001

Product Name:

8CH-OADM-D-WE-D-1U2Slot

Wavelength:

C21~C28

Channel Passband:

0.8nm (100Ghz)

Line Type:

West And East Two Fiber

Connector:

LC/UPC Adaptor

Package:

1U 19" Rack Mount

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

8CH DWDM OADM

C28 Optical Add Drop Multiplexer

100Ghz OADM

Product Description

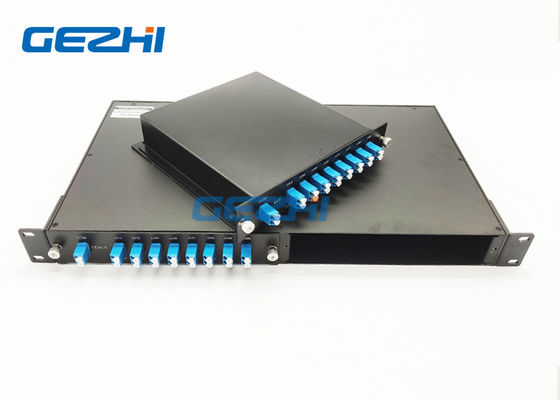

8CH Optical Passive DWDM Add Drop Channel Dual fiber in 2slots 1U Rackmount

GEZHI’ 8CH Optical Passive DWDM Add Drop Channel Dual fiber in 2 slots 1U Rackmount which is a low insertion loss, high density passive optical module and based on the thin film coating technology with C21 to C28 wavelength. Its package two 8CH West and East DWDM OADM module in 1U 19" Rack Mount. This 8CH Optical Passive DWDM Add Drop Channel Dual fiber in 2slots 1U Rackmount are used in WDM systems for multiplexing and demultiplexing and routing fiber optic signals, selectively adding and dropping individual or sets of wavelength channels from a DWDM stream. This GEZHI's 8CH Optical Passive DWDM Add Drop Channel in 2slots 1U Rackmount are available in dual-sided (East and West) configurations supporting up to one wavelengths on two fiber.

Features	Applications
Dual Fiber working High Density Flexible OADM networking 8 channels West & East dual sided 2slot 19" 1U Rackmount	Wavelength Routing CATV Fiber Optic Links Channel Add/Drop Long Haul Networks Dense WDM Systems Metro Networks

Specification

Parameter		Unit	8CH DWDM OADM West and East
			Add	Drop
Channel Wavelength		nm	C21~28
Center wavelength Accuracy		nm	ITU-T Grid @DWDM
Channel Passband		nm	0.8 (100Ghz)
Insertion Loss		dB	<2.5	<2.5
Channel Ripple		dB	0.5
Isolation	Adjacent	dB	>30
	Non-adjacent	dB	>40
Inertion Loss Temperature Sensitivity		dB/℃	<0.005
Wavelength Temperature Shifting		nm/ ℃	<0.002
Polarization Dependent Loss		dB	<0.15
Polarization Mode Dispersion		dB	<0.1
Directivity		dB	>50
Return Loss		dB	>45
Maximum Power Handling		mW	300
Opterating Temperature		℃	-20~+70
Storage Temperature		℃	-40~85
Package dimension		mm	2slot 19” 1U Rack Mount

8 Channels OADM Multiplexer West and East Two Fiber 32 filters Filter Cascading

Dual Fiber 8CH Optical Passive DWDM Add Drop Channel

Dual Fiber DWDM OADM Add and Drop Module

8 channel DWDM add & drop multiplexer for EAST&WEST for data transmission over dual fibers.

8 Channels OADM Multiplexer West and East Two Fiber 32 filters

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Alex

Chile Mar 10.2026

Helpful (1)

Measured insertion loss ＜2.3dB, excellent temperature drift, stable at -10℃ in computer room, qualified channel isolation, strong networking stability.

Samuel

Australia Mar 1.2023

Helpful (2)

1U rack design saves space, 8-ch West/East dual deployment is easy, seamless compatible with existing DWDM devices, no adaptation issues.

Paul

Qatar Mar 1.2023

Helpful (3)

Firm packaging, no damage in transport, parameters match measurement, OEM customizable, timely response for after-sales tech consultation.
