Created with Pixso. 1x2 Mechanical Fiber Optical Switch with 850nm 1310nm 1550nm Test Wavelength Low Insertion Loss and High Stability

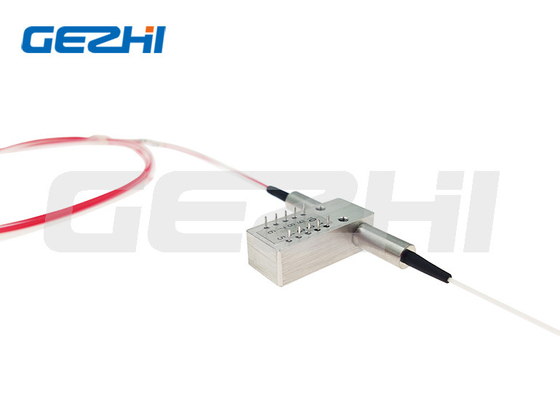

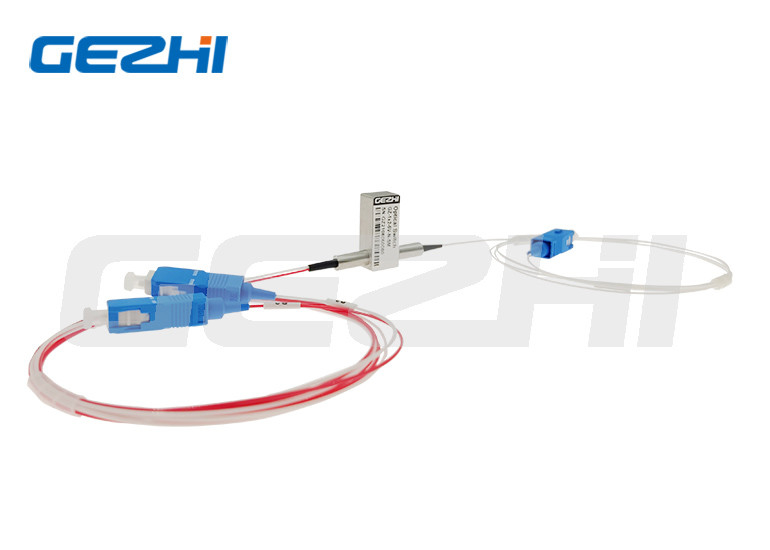

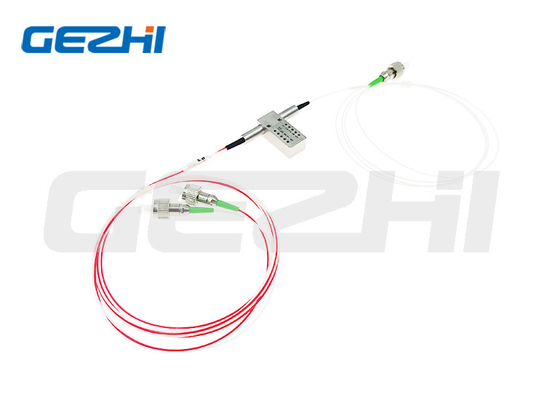

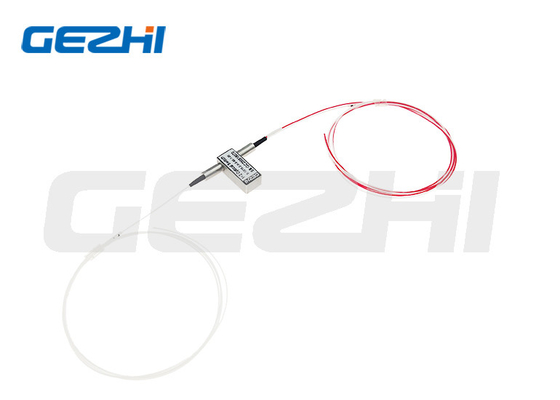

1x2 Mechanical Fiber Optical Switch with 850nm 1310nm 1550nm Test Wavelength Low Insertion Loss and High Stability
  • name
  • name
  • name
  • name

1x2 Mechanical Fiber Optical Switch with 850nm 1310nm 1550nm Test Wavelength Low Insertion Loss and High Stability

Brand Name: GEZHI or OEM
Model Number: 1x2 Optical Switch
MOQ: 1pc
Price: US$22-US$46
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Wavelength Range:
850±40 / 1300±40；1260 ~ 1650
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

Mechanical Fiber Optical Switches

,

FSW Device Fiber Optical Switches

,

1550nm Optical WDM

Product Description
1x2 Mechanical Fiber Optical Switches 850nm 1310nm 1550nm Test Wavelength
Product Overview

Fiber Optic Switch FSW Device 1x2 Mechanical Optical WDM supporting 850, 1310, and 1550 test wavelengths. Optical switches are functional components with optical route switching capabilities, used in optical fiber transmission systems for multi-channel fiber monitoring, multi light source/detector selection, and optical fiber path protection.

Key Features
  • Low Insertion Loss
  • Wide Wavelength Range
  • Low Crosstalk
  • High Stability and Reliability
  • Epoxy-free on Optical Path
  • Latching and Non-latching Options
Applications
  • Optical Network Systems
  • Protection/Restoration
  • Optical Signal Routing
  • Configurable Optical Add/Drop
  • Transmitter and Receiver Protection
  • Network Test Systems
Technical Specifications
Parameters Unit GZ-FSW-1×2
Wavelength Range nm 850±40 / 1300±40 | 1260~1650
Operating Wavelength nm 850/1300 | 1310/1490/1550/1625/1650
Insertion Loss dB Typ:0.8 Max:1.2 | Typ:0.5 Max:1.0
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply V 3.0 or 5.0
Lifetime Time ≥10⁷
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature ℃ -20~+80
Storage Temperature ℃ -40~+85
Weight g 16
Dimension mm (L)27×(W)12.0×(H)8.2
1x2 Mechanical Fiber Optical Switch with 850nm 1310nm 1550nm Test Wavelength Low Insertion Loss and High Stability 0
Our Services
  • Professional manufacturer with 100% testing performed more than 3 times
  • Customer solutions provided in days, not weeks
  • Warm services with careful attention to detail
  • Specific inquiries addressed within 24 hours
  • Cost-saving solutions that bring more benefits for customer business expansion
  • 10 years of experience in the field as a trusted professional supplier
Ordering Information
Mode Wavelength Voltage Type Control Model Fiber Type Fiber Diameter Fiber Length Connector
S=SM M=MM 85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others		 3=3V
5=5V		 L=Latching
N=Non-Latching		 5=50/125
6=62.5/125
9=9/125
X=Others		 25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others		 1=1m
2=1.5m
X=Others		 00=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
STP=ST/PC
STA=ST/APC
LP=LC/PC
LA=LP/APC
X=Others
