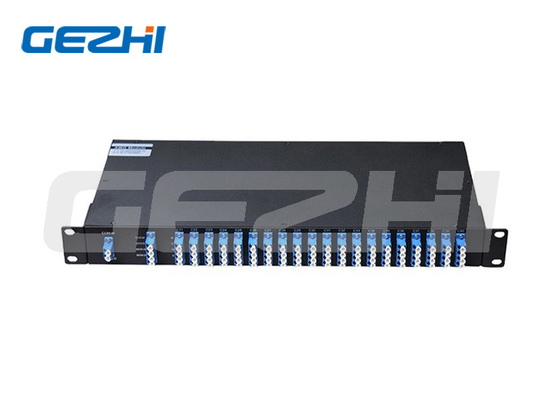

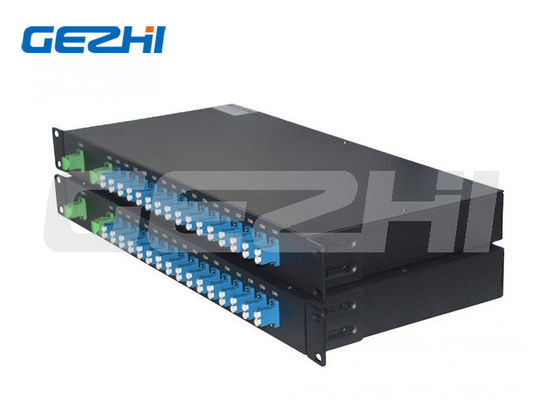

40CH Single Mode Rackmount DWDM Mux Demux Module for Dense Wavelength Division Multiplexing

Name: 40CH Single Mode Rackmount DWDM Mux Demux Module for Dense Wavelength Division Multiplexing
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-DWDM-Mux-PN-40CH
Price: 515.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GZ-DWDM-Mux-PN-40CH
MOQ:	1pc
Price:	US$350-US$680
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Channel No.:

40CH

Fiber Type:

Single Mode

Pigtail Length:

0.3m

Cable Dia.:

0.9mm

IL:

≤2.0dB

RL:

≥45dB

Fiber No.:

Single Fiber (Mux Or Demux), Dual Fiber (Mux And Demux)

P/N:

GZ-DWDM-Mux-PN-40CH

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Optical Network PON Rackmount

DWDM Passive Optical Network PON

PON Rackmount 40CH

Product Description

DWDM Passive Optical Network PON Rackmount 40CH Single Mode

DWDM (Dense Wavelength Division Multiplexer) technology extends optical networking capabilities by significantly increasing bandwidth on existing fiber infrastructure. Dense Wavelength Division Multiplexing combines multiple optical signals onto a single fiber strand for efficient data transmission.

How DWDM Technology Works

DWDM systems utilize multiplexers (Mux) to combine outputs from multiple optical transmitters for transmission across a single optical fiber. At the receiving end, demultiplexers (Demux) separate the combined signals, routing each channel to its appropriate optical receiver. The architecture begins with transponders mapping input data onto individual DWDM wavelengths, which are then filtered and combined by optical multiplexers for core fiber transmission.

Key Features

2-96 channel capacity
Unidirectional or bidirectional operation
RF and data transmission on single fiber strand
Reduces leased fiber requirements by up to 96 times
Compatible with long-distance link systems
High isolation between channels

Applications

DWDM Systems
Passive Optical Network (PON) Systems
FTTx Systems
CATV Networks
Metropolitan Area Networks
Data Centers

Product Specifications

DWDM C-band Wavelength Guide

ITU Channel Code	Wavelength (nm)	ITU Channel Code	Wavelength (nm)
21	1560.61	41	1544.53
22	1559.79	42	1543.73
23	1558.98	43	1542.94
24	1558.17	44	1542.14
25	1557.36	45	1541.35
26	1556.55	46	1540.56
27	1555.75	47	1539.77
28	1554.94	48	1538.98
29	1554.13	49	1538.19
30	1553.33	50	1537.40
31	1552.52	51	1536.61
32	1551.72	52	1535.82
33	1550.92	53	1535.04
34	1550.12	54	1534.25
35	1549.32	55	1533.47
36	1548.51	56	1532.68
37	1547.72	57	1531.90
38	1546.92	58	1531.12
39	1546.12	59	1530.33
40	1545.32	60	1529.55
