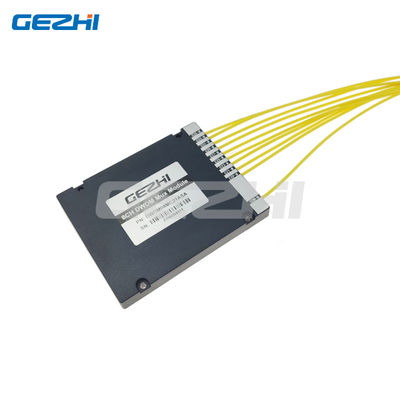

Created with Pixso. DWDM Mux Demux Wavelength Division Multiplexer with 30dB Isolation 7.0dB Insertion Loss and LC SC FC ST Connectors
DWDM Mux Demux Wavelength Division Multiplexer with 30dB Isolation 7.0dB Insertion Loss and LC SC FC ST Connectors
  • name

DWDM Mux Demux Wavelength Division Multiplexer with 30dB Isolation 7.0dB Insertion Loss and LC SC FC ST Connectors

Brand Name: GEZHI
Model Number: DWDM Mux Demux
MOQ: 1
Price: US$59-US$108
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Connector Type:
LC, SC, FC, ST
Channel Spacing:
100GHz, 50GHz, 20GHz, 10GHz, 5GHz
PDL:
≤0.2dB
Polarization Mode Dispersion:
≤0.2ps
Power Consumption:
≤10W
Insertion Loss:
≤7.0dB
Storage Temperature:
-40℃~+85℃
Return Loss:
≥50dB
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

30dB DWDM Mux Demux

,

LC DWDM Mux Demux

,

100GHz Multiplexing Device

Product Description
DWDM Mux Demux Overview
DWDM Mux Demux is a wavelength multiplexing device that provides both multiplexer and demultiplexer functionality to transmit multiple optical signals over a single optical fiber. This advanced optical component delivers excellent performance with polarization mode dispersion ≤0.2ps and supports extensive channel count options.
Key Features
  • Product Name: DWDM Mux Demux
  • Operating Temperature: -40℃ to +85℃
  • Polarization Mode Dispersion: ≤0.2ps
  • Power Consumption: ≤10W
  • Package Types: 1U, 2U, 4U, 6U, 8U, 10U
  • Wavelength Multiplexing Device
  • Demultiplexer and Multiplexer Functionality
Technical Specifications
Connector Type LC, SC, FC, ST
Insertion Loss ≤7.0dB
Isolation 30dB
Relative Humidity 5% to 95%
Channel Spacing 100GHz, 50GHz, 20GHz, 10GHz, 5GHz
Storage Temperature -40℃ to +85℃
Polarization Mode Dispersion ≤0.2ps
Operating Temperature -40℃ to +85℃
PDL ≤0.2dB
Wavelength C-Band, L-Band
Channel Count 4, 8, 16, 32, 40, 80, 96, 120, 144, 160, 192, 240, 288, 320, 336, 384, 432, 480, 576, 640, 768, 864, 960, 1040, 1152, 1280, 1536
Applications
GEZHI DWDM Mux Demux is designed to aggregate and transport multiple optical signals in C-Band or L-Band. With extensive channel count options and multiple package types (1U, 2U, 4U, 6U, 8U, 10U), this device meets diverse application requirements. Featuring low insertion loss (≤7.0dB) and multiple channel spacing options, it is CE RoHS and ISO9001 certified. Ideal for long-haul, metro, and data center applications.
Packaging and Shipping
DWDM Mux Demux products are carefully packaged and shipped according to strict quality procedures:
  • Thorough inspection for damage and functionality
  • Secure packaging with appropriate cushioning material
  • Proper sealing with packing tape
  • Accurate labeling with shipping address
  • Delivery through reliable shipping services
Frequently Asked Questions
What is a DWDM Mux Demux?
A DWDM Mux Demux is a device used in optical communications for combining and separating different wavelengths of light over a single fiber. Manufactured by GEZHI and certified with CE RoHS and ISO9001 standards, it has a minimum order quantity of 1.
What are the benefits of using a DWDM Mux Demux?
The DWDM Mux Demux significantly increases fiber optic link capacity by combining multiple wavelengths of light into a single fiber, enabling more data transmission over the same infrastructure and maximizing network efficiency.
How does the DWDM Mux Demux work?
The device uses an array of optical filters to combine and separate different wavelengths of light, functioning as both a multiplexer for combining incoming wavelengths and a demultiplexer for separating them.
What are the key features of the DWDM Mux Demux?
Key features include low insertion loss, low polarization dependent loss, high channel isolation, high return loss, and compatibility with a wide range of optical fibers.
What are the primary applications of the DWDM Mux Demux?
This device is typically used in long-haul optical networks to increase fiber link capacity, as well as in data center networks and metro networks for carrying multiple traffic channels over a single fiber.
