Product Details:
Payment & Shipping Terms:
|
| Features: | SerialNet, High Reliability, High Stability | Applications: | Automatic Measurement |
|---|---|---|---|
| Wavelength Range: | 1260~1650 Or Customized | Return Loss: | SM ≥ 50 |
| High Light: | 48 2x4 Optical Switch Matrix,Automatic Measurement Optical Switch Matrix |
||
High efficiency 48*2x4 Optical Switch Matrix forAutomatic Measurement
Description

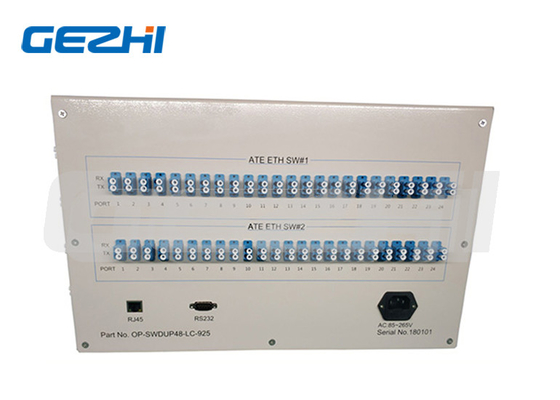

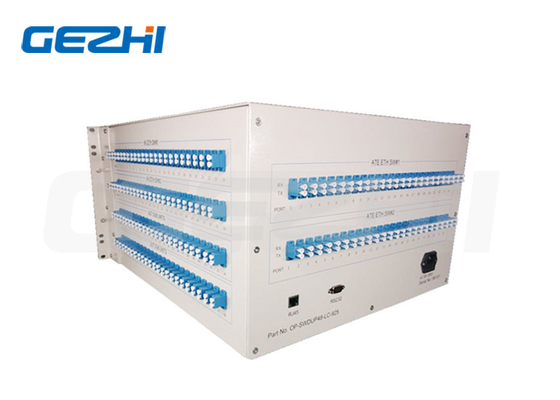

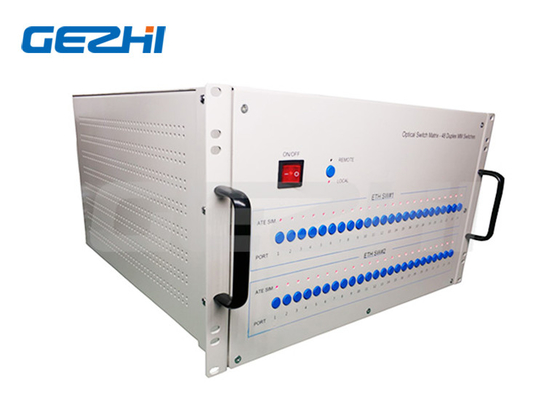

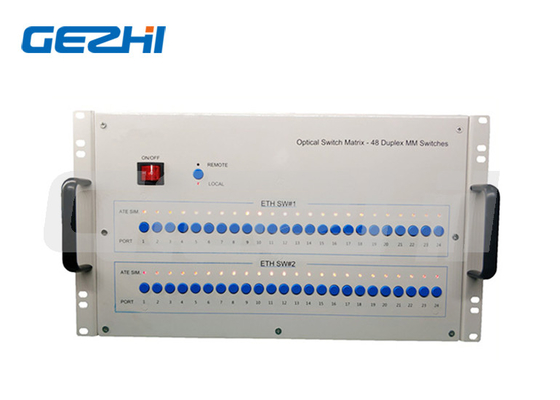

48pcs 2x4 (D1x2) Optical Switch Rackmount
This Optical switch is a kind of light path control device. plays a control light path and convert the light path. 48-D1X2-U consists of 48 pieces of 2x4 synchronous switch light path combinations of mechanical optical switch, optical switch light path control switch can be 48 button on the panel control, also can through the short-range RS - 232 serial port communication mode or remote RJ45 Ethernet communication by sending a program-controlled command control switch light path, equipment state of light path by the green light and red light shows light path.
Features
SerialNet, High Reliability, High Stability
LED display panel. Visual display, Convenient operation
Transparent transmission signal. High stability and reliability
Channel and time interval of automatic scanning can be set up
RS232 Control and RJ45 Ethernet Remote Management
Applications
FITL
Automatic Measurement
Optical Network Remote Monitoring Cable Monitoring and Maintaining system
Optical Matrix Switch Technical Index
| Parameter | Unit | 48*2x4 |
| Wavelength Range | nm | 1260~1650 or customized |
| Testing Wavelength | nm | 1310/1550 or customized |
| Insertion Loss (Max) | dB | ≤1.5 |
| Return Loss | dB | SM ≥ 50 |
| Crosstalk | dB | ≤-55 |
| PDL | dB | ≤0.05 |
| WDL | dB | ≤0.25 |
| TDL | dB | ≤0.20 |
| Repeatability | dB | ≤0.02 |
| Switching Time | ms | ≤10 (Adjacent Channel) |
| Optical Power | mW | ≤500 |
| Fiber Type | um | 9/125 |
| Connector | / | FC, SC, LC, ST, SMA or customized |
| Monitor Port | / | RJ45 & RS232 or customized |
| Working Power Supply (Plug Tyep) | V | AC:220V (50/60Hz) or DC:36V~72V |
| Operating Temperature | ℃ | -10~+60 |
| Storage Temperature | ℃ | -40~+85 |
| Rack mount Dimensions | mm | 6U: 483x500x267mm |
Optical Matrix Switch Ordering Information OSW-XxX-X-XX-X-XX-XX-XX-XX
| OSW | Mode | Wavelength | Package | Fiber Type | Fiber Diameter | Connector |
|
48*2x4 S=Specity |
S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 85/13=850/1300 13/15=1310/1550nm S=Specify |
1U=1U Rackmount 2U=2U Rackmount 3U=3U Rackmount 4U=4U Rackmount S=Specify |
M5=50/125 M6=62.5/125 S9=9/125 S105/125 S200/240 S272/300 S365/400 S550/600 S=Specify |
AC=Single 85~265V DC=Single 36~72V AA=Dual 85~265V DD=Dual 36~72V AD=AC85~265V+DC36~75V |
00=None FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC LP=LC/UPC LA=LC/APC S=Specify |
