High Efficiency 48*2x4 Optical Switch Matrix with SerialNet and 1260~1650nm Wavelength Range for Automatic Measurement

Name: High Efficiency 48*2x4 Optical Switch Matrix with SerialNet and 1260~1650nm Wavelength Range for Automatic Measurement
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: Optical Switch Matrix
Price: 4,388.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	Optical Switch Matrix
MOQ:	1pc
Price:	US$2888-US$5888
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength Range:

1260~1650 Nm Or Customized

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

48 2x4 Optical Switch Matrix

Automatic Measurement Optical Switch Matrix

Product Description

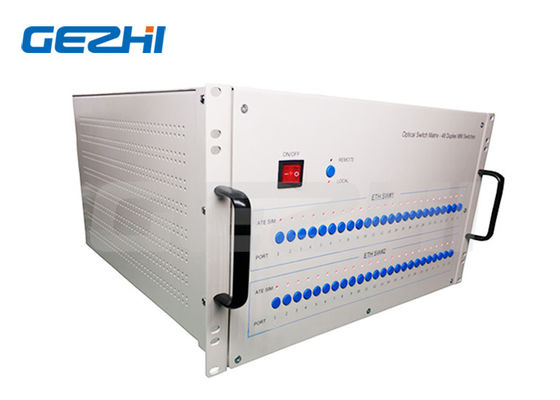

High efficiency 48×2×4 Optical Switch Matrix for Automatic Measurement

Product Overview

The 48×2×4 Optical Switch Matrix is a high-performance light path control device designed for automatic measurement applications. This rackmount system features 48 pieces of 2×4 synchronous switch light path combinations, providing reliable optical path conversion and control capabilities.

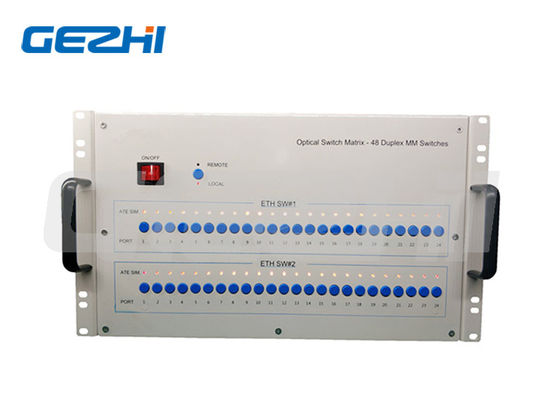

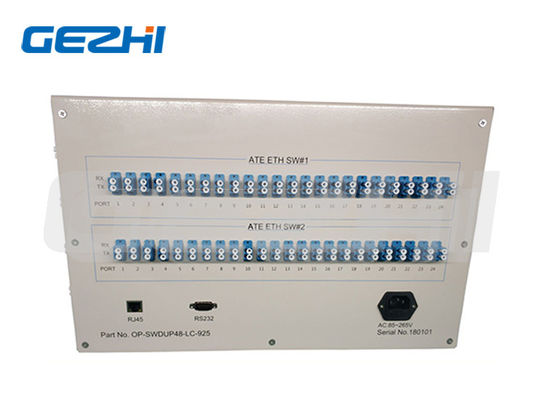

The optical switch can be controlled through multiple methods: via 48 buttons on the front panel, short-range RS-232 serial port communication, or remote RJ45 Ethernet communication. Equipment status and light path configurations are clearly displayed using green and red LED indicators.

Key Features

SerialNet connectivity for flexible control options
High reliability and stability for continuous operation
LED display panel for visual status monitoring
Convenient operation with multiple control interfaces
Transparent signal transmission
Configurable channel and time interval automatic scanning
RS232 control and RJ45 Ethernet remote management

Applications

FITL (Fiber In The Loop)

Automatic Measurement Systems

Optical Network Remote Monitoring

Cable Monitoring and Maintenance Systems

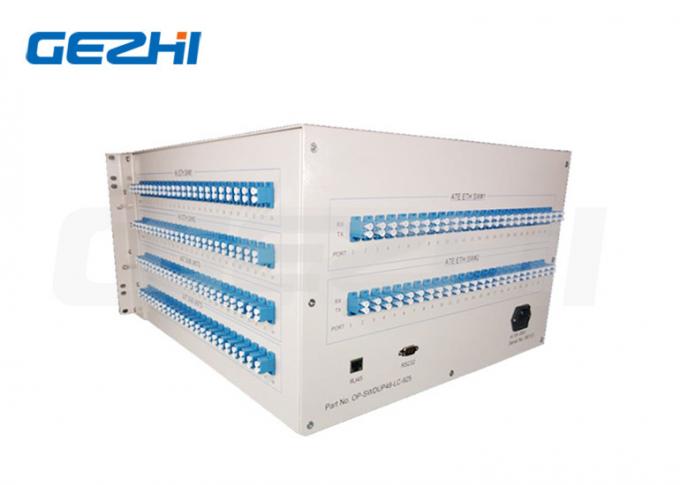

48×2×4 Optical Switch Matrix rackmount unit front panel view

Technical Specifications

Parameter	Unit	48×2×4
Wavelength Range	nm	1260~1650 or customized
Testing Wavelength	nm	1310/1550 or customized
Insertion Loss (Max)	dB	≤1.5
Return Loss	dB	SM ≥ 50
Crosstalk	dB	≤-55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.20
Repeatability	dB	≤0.02
Switching Time	ms	≤10 (Adjacent Channel)
Optical Power	mW	≤500
Fiber Type	um	9/125
Connector	/	FC, SC, LC, ST, SMA or customized
Monitor Port	/	RJ45 & RS232 or customized
Working Power Supply (Plug Type)	V	AC:220V (50/60Hz) or DC:36V~72V
Operating Temperature	℃	-10~+60
Storage Temperature	℃	-40~+85
Rack mount Dimensions	mm	6U: 483×500×267mm

Ordering Information

OSW-X×X-X-XX-X-XX-XX-XX-XX

Component	Options
OSW	48×2×4 S=Specify
Mode	S=SM M=MM
Wavelength	85=850nm 13=1310nm 15=1550nm 85/13=850/1300 13/15=1310/1550nm S=Specify
Package	1U=1U Rackmount 2U=2U Rackmount 3U=3U Rackmount 4U=4U Rackmount S=Specify
Fiber Type	M5=50/125 M6=62.5/125 S9=9/125 S105/125 S200/240 S272/300 S365/400 S550/600 S=Specify
Fiber Diameter	AC=Single 85~265V DC=Single 36~72V AA=Dual 85~265V DD=Dual 36~72V AD=AC85~265V+DC36~75V
Connector	00=None FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC LP=LC/UPC LA=LC/APC S=Specify

Note: S=Specify indicates custom specifications available upon request
