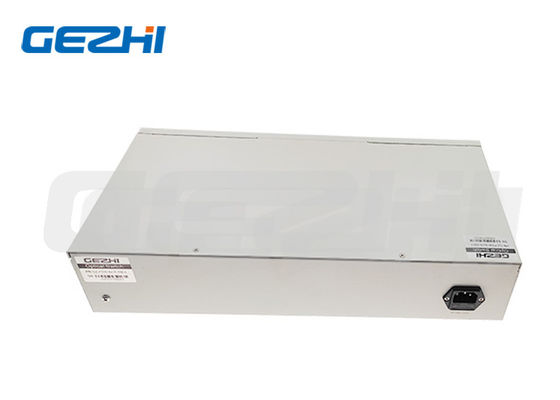

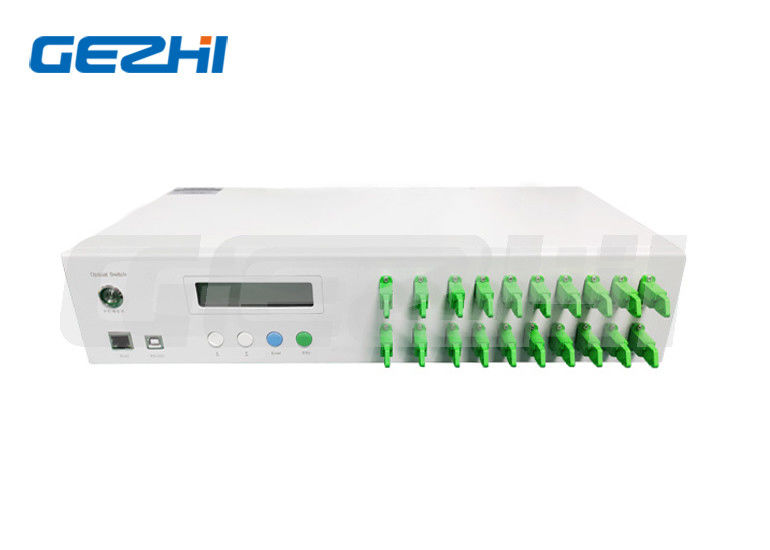

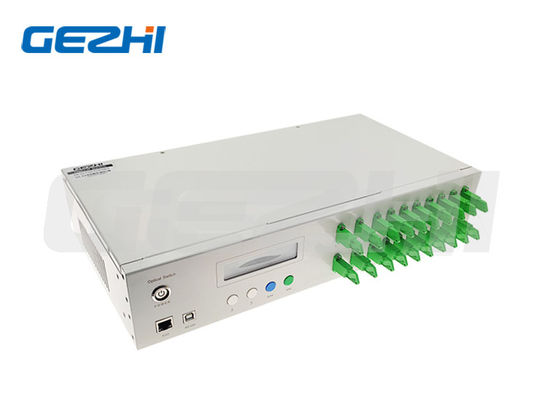

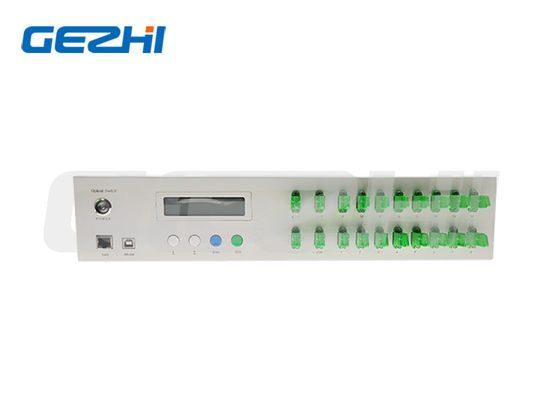

1260~1650nm Wavelength Matrix Optical Switch Rackmount with 19” Rackmount and RS232 Control

Name: 1260~1650nm Wavelength Matrix Optical Switch Rackmount with 19” Rackmount and RS232 Control
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: Matrix Optical Switch Rackmount
Price: 543.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	Matrix Optical Switch Rackmount
MOQ:	1pc
Price:	US$398-US$688
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength Range:

1260~1650nm

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Matrix Optical Switch Rackmount

32x32 Optical Switch Rackmount

4x4 Optical Switch Equipment

Product Description

4x4, 8x8, 16x16, 32x32, Customized Wavelength Matrix Optical Switch Rackmount

The matrix optical switches are high-performance, fully non-blocking all-optical matrix switches, available with port counts from 4x4 up to 128x128. Proven in the most challenging defense applications and field-proven in a wide range of commercial applications by major network equipment manufacturers, these switches are designed to meet the highest performance, security and reliability needs of mission-critical applications with low optical loss, low power requirements and fast switching speeds.

Features

SerialNet, High Reliability, High Stability
LED display panel with visual display
Convenient operation with transparent transmission signal
High stability and reliability
Channel and time interval of automatic scanning can be set up
RS232 Control and RJ45 Ethernet Remote Management

Applications

FITL Automatic Measurement
Optical Network Remote Monitoring
Cable Monitoring and Maintaining system

Technical Specifications

Parameter	Unit	2x4	2x8	2x12	2x16	2x24	2x32	2x64	4x4	8x8	16x16
Wavelength Range	nm	1260~1650
Testing Wavelength	nm	1310/1550
Insertion Loss	dB	≤1.5	≤1.5	≤1.5	≤1.5	≤1.8	≤1.8	≤2.0	≤2.0	≤2.0	≤2.5
Return Loss	dB	SM ≥ 50
Crosstalk	dB	≤-55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤0.02
Lifetime	times	>10⁷
Switching Time	ms	≤8 (Adjacent Channel)
Optical Power	mW	≤500
Connector	/	FC, SC, LC, ST, SMA or customized
Monitor Port	/	RJ45, RS232
Working Power Supply (Plug Type)	V	AC:220V (50/60Hz) or DC:36V~72V
Operating Temperature	℃	-10~+60
Storage Temperature	℃	-40~+85
Rackmount	mm	19" Rack mount 1U, 2U, 3U or 4U

Ordering Information

OSW-XxX-X-XX-X-XX-XX-XX-XX

OSW	Mode	Wavelength	Package	Fiber Type	Fiber Diameter	Connector
2x4 2x8 2x64 4x16 16x16 20x20 S=Specify	S=SM M=MM	85=850nm 13=1310nm 15=1550nm 85/13=850/1300 13/15=1310/1550nm 460nm 780nm 980nm S=Specify	1U=1U Rackmount 2U=2U Rackmount 3U=3U Rackmount 4U=4U Rackmount S=Specify	M5=50/125 M6=62.5/125 S9=9/125 S105/125 S200/240 S272/300 S365/400 S550/600 S=Specify	AC=Single 85~265V DC=Single 36~72V AA=Dual 85~265V DD=Dual 36~72V AD=AC85~265V+DC36~75V	00=None FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC LP=LC/UPC LA=LC/APC S=Specify
