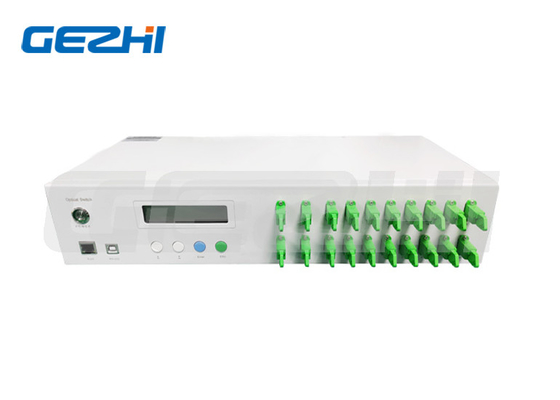

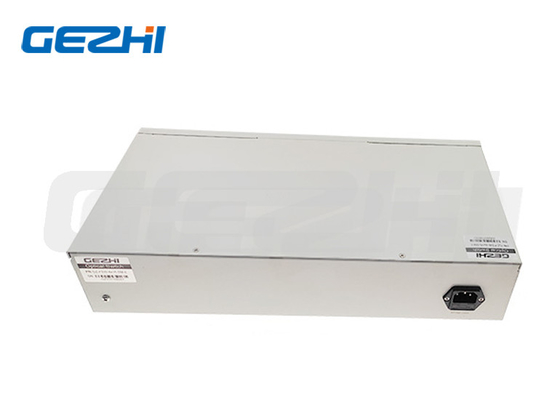

4x4, 8x8, 16x16, 32x32, Customized Wavelength Matrix Optical Switch Rackmount
Matrix Optical Switch Rackmount
The matrix optical switches are high-performance, fully non-blocking all-optical matrix switches, available with port counts from 4x4 up to 128x128. It has been proven in the most challenging defense applications and field proven in a wide range of commercial applications by major network equipment manufacturers, they are designed to meet the highest performance, security and reliability needs of mission-critical applications with low optical loss, low power requirements and fast switching speeds.
|
Features SerialNet, High Reliability, High Stability LED display panel. Visual display, Convenient operation Transparent transmission signal. High stability and reliability Channel and time interval of automatic scanning can be set up RS232 Control and RJ45 Ethernet Remote Management |
Applications FITL Automatic Measurement Optical Network Remote Monitoring Cable Monitoring and Maintaining system
|
Technical Index
| Parameter | Unit | 2x4 | 2x8 | 2x12 | 2x16 | 2x24 | 2x32 | 2x64 | 4x4 | 8x8 | 16x16 |
| Wavelength Range | nm | 1260~1650 | |||||||||
| Testing Wavelength | nm | 1310/1550 | |||||||||
| Insertion Loss | dB | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.8 | ≤1.8 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.5 |
| Return Loss | dB | SM ≥ 50 | |||||||||
| Crosstalk | dB | ≤-55 | |||||||||
| PDL | dB | ≤0.05 | |||||||||
| WDL | dB | ≤0.25 | |||||||||
| TDL | dB | ≤0.25 | |||||||||
| Repeatability | dB | ≤0.02 | |||||||||
| Lifetime | times | >107 | |||||||||
| Switching Time | ms | ≤8 (Adjacent Channel) | |||||||||
| Optical Power | mW | ≤500 | |||||||||
| Connector | / | FC, SC, LC, ST, SMA or customized | |||||||||
| Monitor Port | / | RJ45 , RS232 | |||||||||
| Working Power Supply (Plug Tyep) | V | AC:220V (50/60Hz) or DC:36V~72V | |||||||||
| Operating Temperature | ℃ | -10~+60 | |||||||||
| Storage Temperature | ℃ | -40~+85 | |||||||||
| Rackmount | mm | 19”Rack mount 1U , 2U, 3U or 4U | |||||||||
Ordering Information OSW-XxX-X-XX-X-XX-XX-XX-XX
| OSW | Mode | Wavelength | Package | Fiber Type | Fiber Diameter | Connector |
|
2x4 2x8 2x64 4x16 16x16 20x20 S=Specity |
S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 85/13=850/1300 13/15=1310/1550nm 460nm 780nm 980nm S=Specify |
1U=1U Rackmount 2U=2U Rackmount 3U=3U Rackmount 4U=4U Rackmount S=Specify |
M5=50/125 M6=62.5/125 S9=9/125 S105/125 S200/240 S272/300 S365/400 S550/600 S=Specify |
AC=Single 85~265V DC=Single 36~72V AA=Dual 85~265V DD=Dual 36~72V AD=AC85~265V+DC36~75V |
00=None FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC LP=LC/UPC LA=LC/APC S=Specify |
|
|
