1x128 Fiber Optical Switch with Fast Switching Time LCD Display and RS232 Control for Optical Networks

Name: 1x128 Fiber Optical Switch with Fast Switching Time LCD Display and RS232 Control for Optical Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1x128 Optical Switch
Price: 543.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1x128 Optical Switch
MOQ:	1pc
Price:	US$398-US$688
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength Range:

1260~1650 Nm

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

FITL Fiber Optical Switch

LCD Display Fiber Optical Switch

1x128 Optical Switch

Product Description

Fiber Optical Switch Fast Switching Time 1x128 Optical Switch With LCD Display

Product Overview

This 1x128 Optical Switch Rackmount features one input and 128 output optical fiber ports, designed to selectively transmit, redirect, or block optical power in fiber transmission lines. These bidirectional optical switches can be used in both 1x128 and 128x1 configurations, making them ideal for optical fiber communication networks and measuring instruments.

The front panel supports various connector types including FC/APC, FC/UPC, SC/APC, SC/UPC, LC/APC, LC/UPC, ST/APC, and ST/UPC. The 2RU 19" rackmount can accommodate 1x24, 1x32, 1x48, 1x64 configurations or customized optical switches.

Applications

FITL (Fiber In The Loop)
Maintaining System
Optical Network Remote Monitoring
Cable Monitoring
Automatic Measurement

Key Features

Configurable channel and time interval for automatic scanning
LED display panel for visual monitoring and convenient operation
SerialNet with high reliability and stability
Transparent transmission signal with high stability and reliability
RS232 Control and RJ45 Ethernet Remote Management

Technical Specifications

Parameter	Unit	1x4	1x8	1x12	1x16	1x24	1x32	1x64	1x128
Wavelength Range	nm	1260~1650 or customized
Testing Wavelength	nm	1310/1550 or customized
Insertion Loss (Max)	dB	≤1.0	≤1.0	≤1.5	≤1.5	≤1.5	≤1.5	≤1.5	≤2.0
Return Loss	dB	SM ≥ 50
Crosstalk	dB	≤-70
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.20
Repeatability	dB	≤0.02
Switching Time	ms	≤10 (Adjacent Channel)
Optical Power	mW	≤500
Fiber Type	um	9/125
Connector	/	FC, SC, LC, ST, SMA or customized
Monitor Port	/	RJ45 & RS232 or customized
Working Power Supply	V	AC:220V (50/60Hz) or DC:36V~72V
Operating Temperature	℃	-10~+60
Storage Temperature	℃	-40~+85

Rackmount Dimensions

1U: L483×W230×H44.5 (Up to 16 channel) - customization available
2U: L483×W230×H89 (Up to 36 channel) - customization available
2U: L483×W350×H89 (Up to 64 channel) - customization available
3U: L483×W350×H133.5 (Up to 128 channel) - customization available
4U: L483×W350×H178 (Up to 256 channel) - customization available

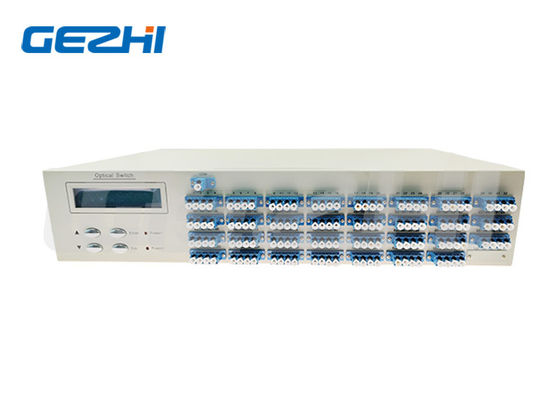

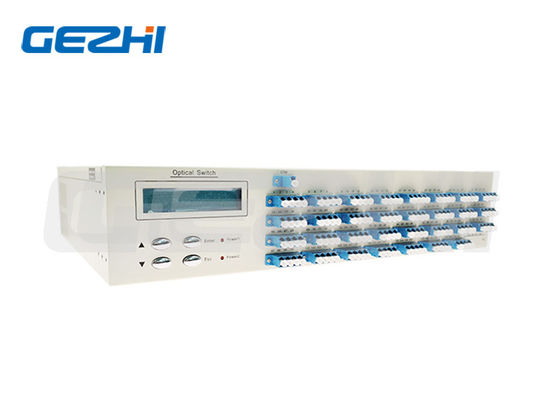

Front Panel Overview

Power: Master switch of power supply
RJ45: Communications network management interface
RS-232: RS232 serial communication interface
LCD: Device for direct information display
▲▼: Keys to move up and down
Enter: Key to determine selection
Esc: Key to cancel operation
COM, 1~128: Fiber interfaces

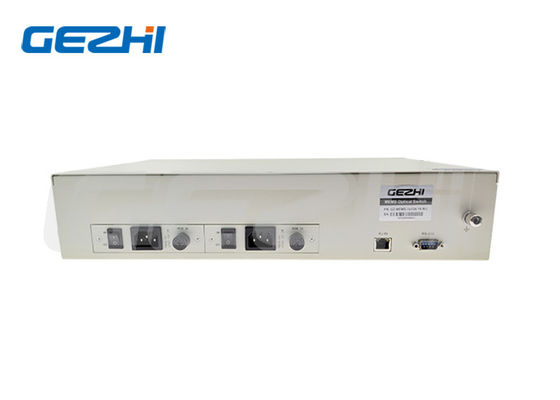

Back Panel Overview

AC 85~265V: Power cord interface
ON/OFF: Master switch of power supply

Default Settings

Address: 01
RS-232: Baud rate: 9600; Data bits: 8 bit; Stop bit: 1 bit; Parity bit: NONE
RJ45: IP: 192.168.1.100; PORT: 5000; TCP/IP: TCP Server and UDP (Fixed port: 18888)

Optical Route & Communication Protocol

Communication protocol uses all uppercase characters
Device executes one instruction at a time
"<" serves as the start instruction
">" serves as the end instruction
