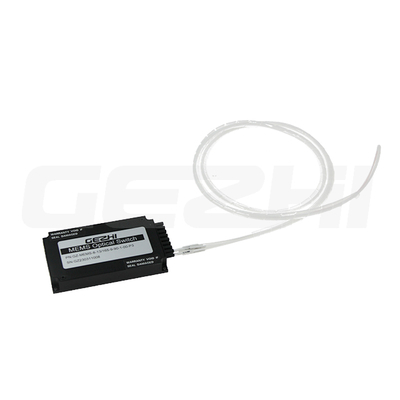

MEMS Optical Switch 1.25Gbps Data Rate 50dB Return Loss

MEMS Optical Switch 1.25Gbps Data Rate 50dB Return Loss
MEMS Optical Switch 1.25Gbps Data Rate 50dB Return Loss

Large Image :  MEMS Optical Switch 1.25Gbps Data Rate 50dB Return Loss

Product Details:
Place of Origin: China
Brand Name: GEZHI
Model Number: MEMS Optical Switch
Detailed Product Description
Insertion Loss: 0.3dB Connector Type: FC/PC
Switch Time: 2ms Power Supply: 3.3V
Return Loss: 50dB Operating Temperature: -40℃~+85℃
Size: 3.2mm*2.5mm*1.25mm Wavelength: 850nm

Product Description:

Gezhi MEMS Optic Switches offers perfect integration into optical system with its MEMS technology. This technology ensure that the switch has long lifetime, great durability and high reliability, making it an ideal choice for various applications such as Telecom, Test & Measurement, Remote Sensing, Biomedical and more.

MEMS Optic Switches can drastically improve the performance, productivity and efficiency of optical systems. It also provides excellent cost-effectiveness for a wide range of applications including data processing, communication systems and robotics.


Features:

SwitchYard offers a wide range of switches with distinct advantages to optimizing fiber network performance. These include switches that have low insertion loss, a wide wavelength range, low crosstalk, high stability, high reliability, and an absence of epoxy on the optical path. The vast majority of our switches are non-latching, though latching and non-latching switches are available.


Technical Parameters:

Parameter Specification
Operating Temperature -40℃~+85℃
Package SMT
Return Loss 50dB
Insertion Loss 0.3dB
Size 3.2mm*2.5mm*1.25mm
Storage Temperature -40℃~+85℃
Wavelength 850nm
Switch Time 2ms
Data Rate 1.25Gbps
Power Supply 3.3V

Applications:

Optical Network

Optical network is one of the rapidly developing fields with the advances in optical communication technology, especially in the past decade. It is a kind of advanced communication network which supports high speed data transmission, which can provide faster and higher quality data transmission than traditional copper-based communication.

Protection/Restoration

Optical protection and restoration technologies are an important part of the optical network. It refers to the maintenance and protection of the transmitted network signals. These technologies can guard against any unpredictable errors arising from the transmission of the signals, such as signal fading, interference, power supply, fiber cut, etc. If any of these errors occur, the restoration technology will carry them out as soon as possible and make sure the signal can be recovered in time.

Optical Signal Routing

Optical signal routing is another important concept for optical networks. It is the process of routing a signal through a path in the network, according to its transmission requirements. It is generally used to establish connections between source and destination nodes in the network, and enables high speed, reliable, and congestion free data transmission.

Transmitter and Receiver Protection

Transmitter and receiver protection are also an important part of the optical network. In this module, dedicated components such as protection circuits are used to take necessary actions to mitigate any interference, over-voltage or over-current damage that might happen to the transmitters or receivers.

Network Test System

In order to ensure the highest performance of the optical network, network test systems are used to regularly check the performance of the equipment, signals, and connections. This can help identify any irregularities, errors or faults, so that proactive decisions can be taken to mitigate any risks or damages which may arise out of such irregularities.


Packing and Shipping:

Packaging and Shipping

MEMS Optical Switch products have specific packaging and shipping requirements to ensure their safe delivery.

We package our products in robust and custom-fit foam inserts, which are placed inside a corrugated box. This provides protection against shock and vibration during shipping.

We ship our products via reputable courier services, and provide tracking information so that you can monitor the progress of the shipment.


FAQ:

Q1: What is a MEMS Optical Switch?
A: The MEMS Optical Switch, produced by GEZHI and made in China, is an optical switch used to route, switch, and multiplex optical signals.
Q2: What are the features of the MEMS Optical Switch?
A: The MEMS Optical Switch supports low insertion loss, high isolation, high stability, and low power consumption.
Q3: What applications does the MEMS Optical Switch support?
A: The MEMS Optical Switch can be used in a wide range of applications, such as optical access networks, fiber-optic sensor networks, and optical communications.
Q4: What types of connectors does the MEMS Optical Switch support?
A: The MEMS Optical Switch supports a variety of connectors, including FC, SC, ST, LC, and MU.
Q5: What is the operating temperature range of the MEMS Optical Switch?
A: The MEMS Optical Switch is designed to operate in a temperature range of -40℃ to 85℃.
