8CH DWDM module 2In1 Rack with Double Fiber DWDM mux Passive filters 1x8 Channels networks
DWDM (Dense Wavelength Division Multiplexing) is a combination of a set of optical wavelengths that can be transmitted with one fiber. This DWDM Module launched by GEZHI Photonics is based on the thin film coating technology. This is a laser technology used to increase bandwidth on existing fiber-optic backbones. It enables optical fiber networks to transmit signals of several wavelengths simultaneously.
GEZHI Photonics provide full range of DWDM Mux Demux with customized Channel, Wavelength, Power, Fiber type and connector type. Also Low insertion type is available
| Low Insertion Loss |
| High Isolation |
| High Stability & Reliability |
| Industrial Operating Temperature |
| (-40~+80℃ available) |
| Customized Package type |
| Stainless Steel tube, ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount |
Specification
|
Parameter
|
Unit
|
8+1CH DWDM Mux+Demux
|
|
Channel Number
|
--
|
8+1CH
|
|
Operation Wavelength
|
nm
|
C53~C60+Upgrade+1% Monitor Port
|
|
Channel Central Wavelength
|
nm
|
ITU-T Grid @DWDM
|
|
Channel Passband
|
nm
|
0.8 (100Ghz)
|
|
Insertion Loss @PB
|
dB
|
<2.8
|
|
Mux 1% monitoring
|
dB
|
<24.3
|
|
Demux 1% monitoring
|
dB
|
<21.5
|
|
Isolation @Adjacent Channel
|
dB
|
>30
|
|
Isolation @Non-adjacent Channel
|
dB
|
>34
|
|
Isolation @Reflect Channel
|
dB
|
>15
|
|
Passband Ripple
|
dB
|
<0.5
|
|
Polarization Dependent Loss
|
dB
|
<0.15
|
|
Polarization Mode Dispersion
|
ps
|
<0.1
|
|
Directivity & Return Loss
|
dB
|
Directivity: >50 Return Loss:>45
|
|
Power Handling
|
mW
|
<500
|
|
Connector
|
--
|
SC/UPC or customized
|
|
Fiber Type
|
--
|
SMF-28e or Customized
|
|
Operating Temperature
|
℃
|
-20 ~ +70
|
|
Storage Temperature
|
℃
|
-40 ~ +85
|
|
Package Dimension
|
mm
|
4slot 19" 1U Rackmount
|
|
GEZHI's Double Fiber DWDM mux Passive filters 1x8 Channels networks offers high-capacity terminal DWDM solutions for network expansion. This Double Fiber DWDM mux Passive filters 1x8 Channels networks is used for long-haul transmission where wavelengths are packed tightly together over the C-band in 100GHz grid (0.8nm). The Double Fiber DWDM mux Passive filters 1x8 Channels networks is protocol transparent and suited for applications including SDH/SONET, 10/1G Ethernet, 16/8/4/2/1G Fibre Channel, CATV, FTTx, etc.

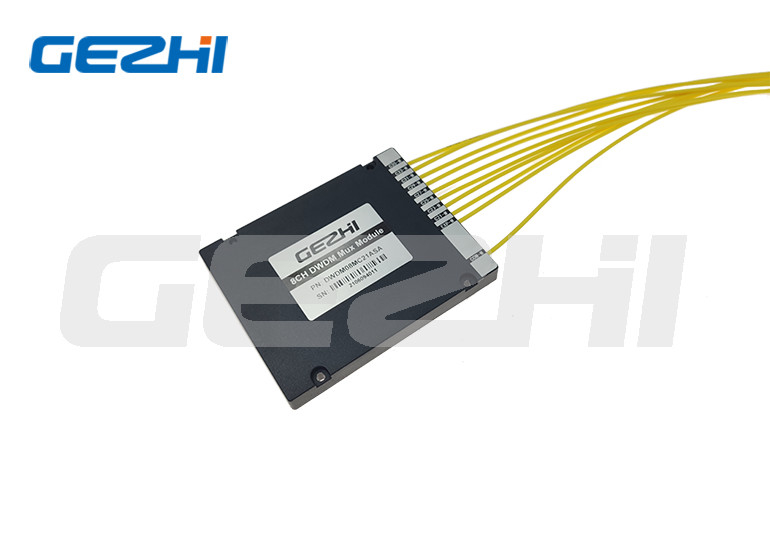

Double Fiber DWDM mux Passive filters 1x8 Channels networks

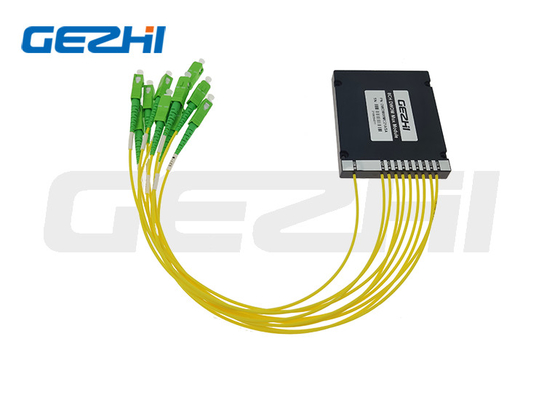

8 Channels Fiber Optic Multiplexer Optical Passive DWDM Mux Modules

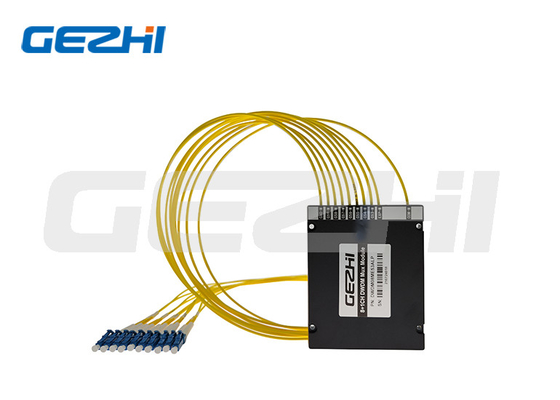

Dual Fiber DWDM
Ordering Information
|
CWDM
|
Number of Channels
|
Configuration
|
First Channel
|
Last Channel
|
Module type
|
Cable type
|
Fiber length
|
Connector
|
|
CWDM
|
01=1 CH
02=2 CH
03=3 CH
......
16=16CH
17=17CH
18=18CH
......
|
M=Mux
D=Demux
A=Mux+Demux
|
27=1270
29=1290
......
47=1470
S=Specify
|
27=1270
29=1290
......
47=1470
S=Specify
|
A1=ABS box 100x80x10mm
A2=ABS box 120x80x18mm
A3=ABS box 140x115x18mm
L1=LGX 129*29*130mm
L2=LGX insert in 2slot Rack
L4=LGX insert in 4slot Rack
R1=19" 1 U Rack
R2=2slot 19″1U Rack
R4=4slot 19″1U Rack
S=Specify
|
09=900um loose tube
20=2.0mm
30=3.0mm
|
05=0.5m
10=1.0m
15=1.5m
S=Specify
|
00=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
S=Specif
|
FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
