| Dimensions: | 480(W)* 280(D)* 132(H) | Color: | Beige |
|---|---|---|---|
| Weight: | 6.2kg | Adapter Capacity: | 144 Pcs |
| Connector: | SC/LC/FC/ST | Mater: | SPCC |
| Model: | Rack Mount | Working Temperature: | -10℃～+60℃ |
| Storage Temperature: | -25℃～+85℃ | Atmospheric Pressure: | Atmospheric Pressure |
| Relative Humidity: | ≤85%(+30℃) | ||
| High Light: | ftth optical distribution fiber,3u odf optical distribution frame,rack mount odf optical distribution frame |
||

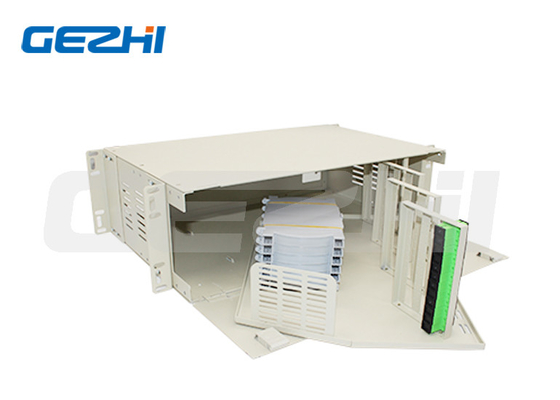

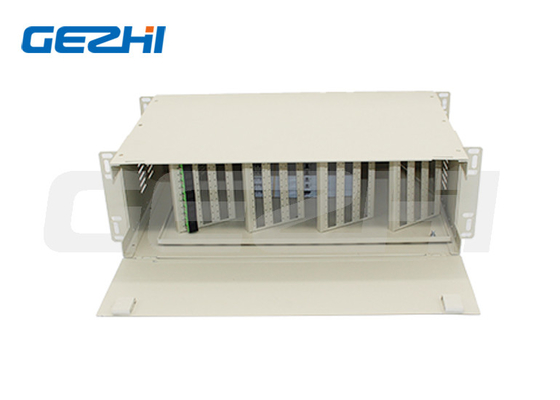

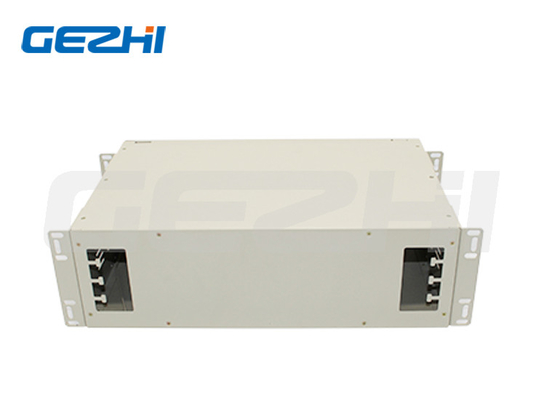

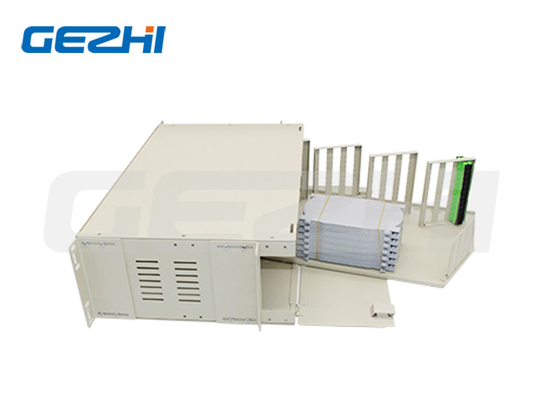

FTTH 3U Rack Mount 144 Core SC LC FC Patch Panel High Density ODF Optical Distribution Frame Price
Product Description
Optical fiber distribution frame, also known as optical fiber terminal box, is a wiring device used for terminating, protecting, connecting and managing optical cables and optical fibers in an optical fiber communication network. It can realize the fixing, stripping and grounding protection of the optical fiber cable, and the fusion, jump, redundant coiling, reasonable layout, and wiring height of various optical fibers. device.
Parameter
| Product name | 144 Core ODF Empty Container | Material | cold rolled steel |
| Operating Temperature | -40℃~60℃ | Product Size | 483*255*360mm |
| Working environment | 19 Inch Cabinet | Packing quantity | 1pc per carton |
| Function | Optical cable fixation and Protection,Termination | Accessories | SC/upc pigtails and adapters |
| Features | Easy for installation of inlay,Convenient to expand capacity | Gross proudct | 15.5kg Add fittings |
Features
1. Full-fiber walking path design, protect fiber jumper in the whole process, and protect its full radius ≥40mm
2. Various wiring units and accessories are complete, and can be selected according to needs
3. Suitable for the installation of SC / ST / LC / FC and other adapters, large capacity, can store redundant fiber jumper
4.19 "standard size design, easy to install on the cabinet.
5. The use of high-quality cold-rolled steel plate, electrostatic spray plastic on the surface, has good corrosion resistance
