Optical CWDM Mux Demux Module 3CH MUX DEMUX 5G Backbone Network 1270-1610nm

Name: Optical CWDM Mux Demux Module 3CH MUX DEMUX 5G Backbone Network 1270-1610nm
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 3CH CWDM Mux Demux
Price: 30.00 USD
Availability: InStock

Brand Name:	Gezhi or OEM
Model Number:	3CH CWDM Mux Demux
MOQ:	1 pieces
Price:	USD >= 1 pieces $60
Delivery Time:	7 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Insertion Loss:

IL<2.5db

Operating Temperature:

-20 To +70℃

Package:

ABS Type

Application:

Data Center

Fiber Connector:

LC/UPC, FC/APC, SC/APC Etc.

Center Wavelength:

1271~1611nm

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

3CH CWDM Mux Demux

5G Backbone Network CWDM Mux Demux

1270-1610nm CWDM Mux Demux

Product Description

Product description

3CH MUX DEMUX 5G Backbone Network 1270-1610nm Optical CWDM Mux Demux Module

CWDM Mux/Demux (optical multiplexer/demultiplexer) Module are considered as a cheaper and simpler alternative to DWDM systems for metro access network applications. Since CWDM Mux/Demux systems have wide channel spacing (20 nm), they do not require precise wavelength control for transmitter lasers. Thus, cost-effective non-cooled lasers as well as lower-cost passive components may be used for CWDM Mux or Demux systems. GEZHI Photonics supplies a variety of WDM devices and are promoting higher speed and more reliable optical network.

Optical CWDM Mux Demux Module 3CH MUX DEMUX 5G Backbone Network 1270-1610nm 0

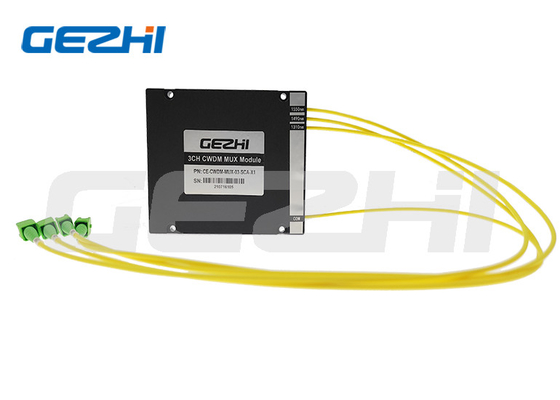

Optical CWDM Mux Demux Module 3CH MUX DEMUX 5G Backbone Network 1270-1610nm 1

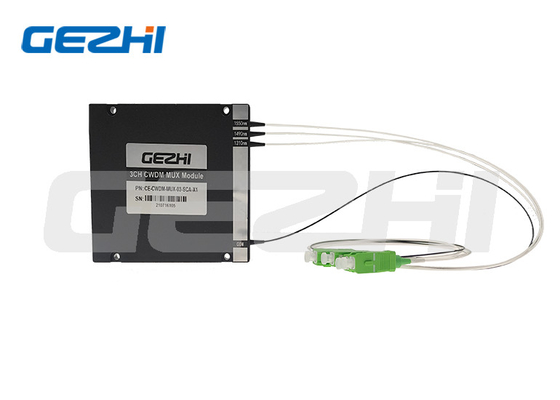

Optical CWDM Mux Demux Module 3CH MUX DEMUX 5G Backbone Network 1270-1610nm 2

Feature

Very Low Insertion Loss High Isolation High Reliability and Stability Low PDL Compact Design Good channel-to-channel uniformity Wide Operating Wavelength: 1270nm-1610nm (1261nm~1611nm) Operating Temperature: -20 to +70℃ Industrial Operating Temperature: -40 to +

PRODUCT SPECIFICATIONS

Parameter	Unit	CWDM Mux Demux
Channel Spacing	nm	20nm
Center Wavelength	nm	1270~1610 or 1271~1611
Channel Passband	nm	±6.5
Channel Number	/	3CH	4CH	16CH
Insertion Loss	dB	<1.5	<2.5	<5.5 or <3.5(with skip)
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>40
Isolation @Express Port	dB	>15
Polarization Dependent Loss	dB	<0.2
Polarization Mode Dispersion	dB	<0.1
Directivity	dB	>50
Return Loss	dB	UPC >45 APC>50
Power Handling	mW	<500 (High Power type available)
Fiber Type	/	SMF-28e (Polarization Maintaining Type available)
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Package Type	mm	ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

High Quality & Stability Material

Use Import Filter with High Reliable & Stable quality

Use Original EMI OPTOCAST 3410-VM Glue

Use High Quality G-Lens and Collimator

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.

Tags:

1x8 cwdm equipment

CWDM 8 channel multiplexer

8 channel cwdm

18CH 1610nm low loss BIDI CWDM Mux Demux Module

Get Best Price

Insert Type 12 Channel 1571nm CWDM Mux Module

Get Best Price

LGX Cassette 8 Multi Channel Plug In CWDM Mux Demux Module

Get Best Price

LC PC Adaptor Dual Fiber Optic 18 Channels Passive CWDM

Get Best Price

1290nm Passive CWDM Mux Demux Module With Upgrade Port

Get Best Price

LC PC Pigtailed 8CH 1611nm CWDM Mux Demux Splitter Module

Get Best Price

1610nm 1x16 Single Fiber Passive 16 Channels CWDM Splitter

Get Best Price

Dual Fiber 1310nm 1x8 CH Optical CWDM Mux Demux Module

Get Best Price

Products Details

Home Products

CWDM Mux Demux

Optical CWDM Mux Demux Module 3CH MUX DEMUX 5G Backbone Network 1270-1610nm

All Category

CWDM Mux Demux

DWDM Mux Demux

AAWG DWDM

Filter WDM

Compact CWDM Module

Optical Add Drop Multiplexer

Fiber Optical Switches

Optical Switch Equipment

MEMS Optical Switch

Polarization Maintaining Components

High Power Components

Fiber Optic Passive Components

Patch Cable Series

Fiber Optic Box

Optical Transceiver Module

Fiber Optic Accessories

Optical CWDM Mux Demux Module 3CH MUX DEMUX 5G Backbone Network 1270-1610nm

Brand Name:	Gezhi or OEM
Model Number:	3CH CWDM Mux Demux
MOQ:	1 pieces
Price:	USD >= 1 pieces $60
Packaging Details:	inner box,Carton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

Gezhi or OEM

Certification:

CE RoHS,ISO9001

Model Number:

3CH CWDM Mux Demux

Insertion Loss:

IL<2.5db

Operating Temperature:

-20 To +70℃

Package:

ABS Type

Application:

Data Center

Fiber Connector:

LC/UPC, FC/APC, SC/APC Etc.

Center Wavelength:

1271~1611nm

Minimum Order Quantity:

1 pieces

Price:

USD >= 1 pieces $60

Packaging Details:

inner box,Carton

Delivery Time:

7 Days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

3CH CWDM Mux Demux

5G Backbone Network CWDM Mux Demux

1270-1610nm CWDM Mux Demux

Product Description

Product description

3CH MUX DEMUX 5G Backbone Network 1270-1610nm Optical CWDM Mux Demux Module

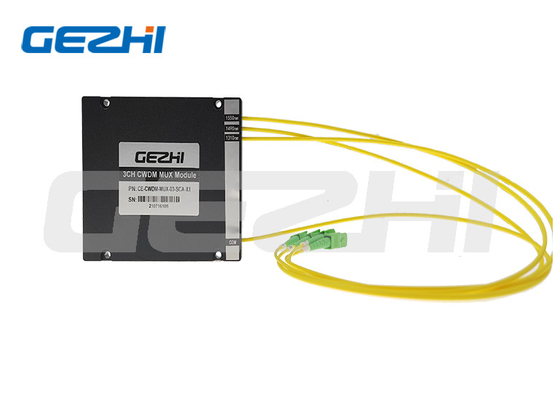

Optical CWDM Mux Demux Module 3CH MUX DEMUX 5G Backbone Network 1270-1610nm 0

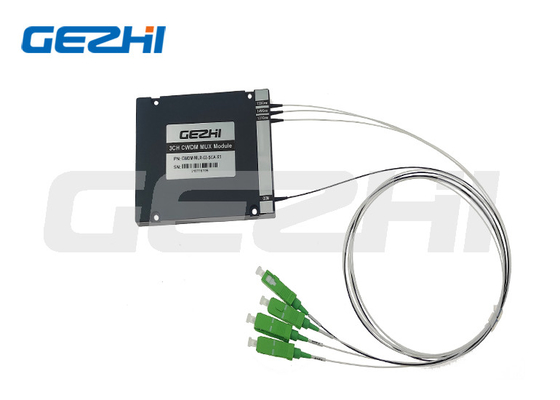

Optical CWDM Mux Demux Module 3CH MUX DEMUX 5G Backbone Network 1270-1610nm 1
