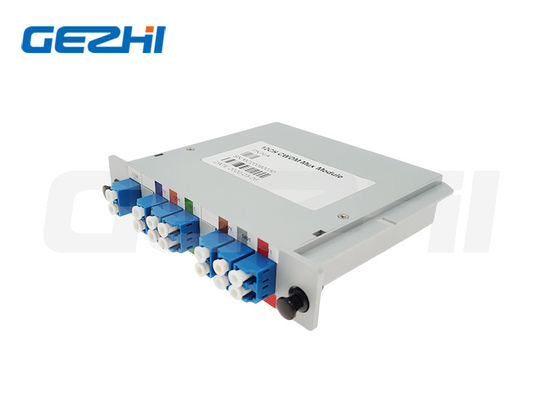

12CH CWDM Mux Demux 1260-1620nm Fiber Optic Equipment with LC UPC Adaptor

Name: 12CH CWDM Mux Demux 1260-1620nm Fiber Optic Equipment with LC UPC Adaptor
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 12CH DWDM MUX
Price: 93.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	12CH DWDM MUX
MOQ:	1pc
Price:	US$58-US$128
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Model Number:

12CH CWDM MUX

Use:

FTTH

Warranty Time:

3 Years

Channel:

Operating Wavelength:

1260-1620nm

Channel Spacing:

20nm

Application:

CWDM DWDM Transmittion Equipment

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

12CH Fiber CWDM Cassette Module

1620nm Fiber CWDM Cassette Module

LC UPC Fiber CWDM Cassette Module

Product Description

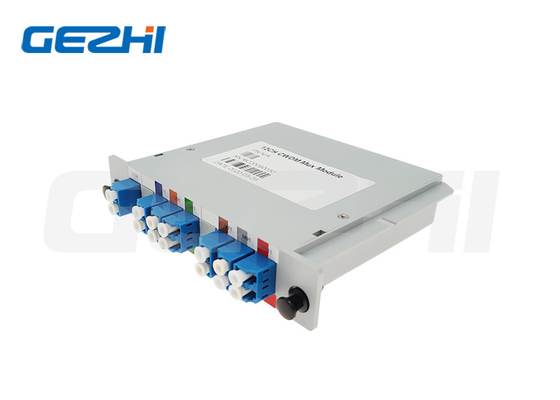

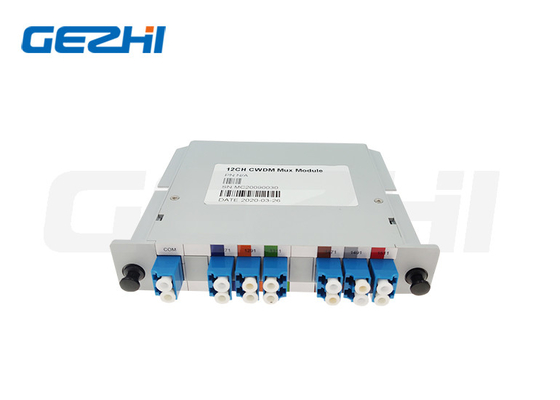

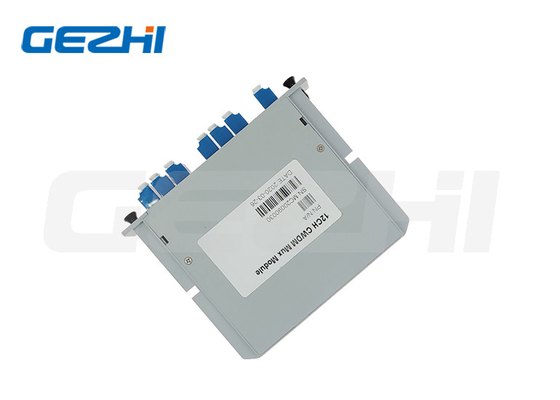

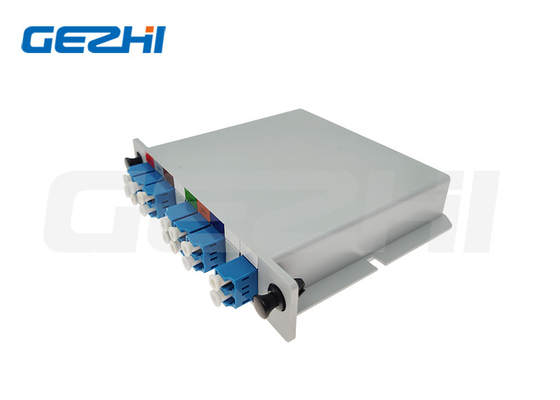

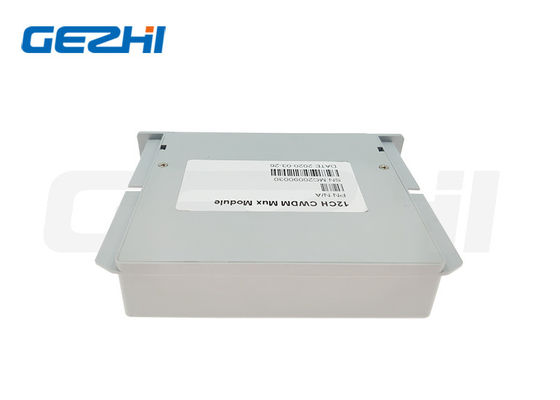

12CH CWDM Cassette Module with LC UPC Adaptor

This 12-channel CWDM cassette module operates across the 1260-1620nm wavelength range and features LC UPC adapters for reliable fiber optic transmission applications.

Product Specifications

Parameter	Specification
Product Name	CWDM Plastic Module
Channel Number	12
Operating Wavelength	1260-1620nm
Channel Spacing	20nm
Channel Insertion Loss	≤4.8dB
Return Loss	≥45dB
Application	CWDM DWDM Transmission Equipment

Mechanical Dimensions

Technical Parameters

Parameter	Unit	Specifications
Operating Wavelength	nm	1260-1620
Channel Number	/	12
Center Wavelength	nm	1271,1291,1311,1331,1351,1371,1471,1491,1511,1531,1551,1571
Channel Spacing	nm	20
Channel Pass Band	nm	ITU±7.5
CWDM Center Wavelength Accuracy	nm	±3.2
CWDM Channel Insertion Loss	dB	≤4.8
CWDM Channel Ripple	dB	≤0.5
Adjacent Channel Isolation	dB	≥30
Non-Adjacent Channel Isolation	dB	≥40
Insertion Loss Thermal Stability	dB	≤0.005
Wavelength Thermal Stability	nm	≤0.002
Polarization Dependent Loss	dB	≤0.2
PMD	ps	≤0.2
Return Loss	dB	≥45
Directivity	dB	≥45

Manufacturer Information

Gezhi Photonics Co., Ltd operates from a 1500 square meter cleanroom facility with a 20-year experienced technical team. Our manufacturing process ensures reliable, stable, and high-quality products through our team of 160 skilled workers. We maintain partnerships with international telecom operators, equipment suppliers, universities, and research institutions, serving over 30 countries worldwide with custom design solutions, technical support, and rapid prototyping capabilities.

Certifications

Shipping & Delivery

We partner with experienced shipping forwarders to arrange reliable transportation via express, air, or sea freight. Our team tracks shipments throughout the delivery process to ensure timely arrival in perfect condition.

Frequently Asked Questions

Are you a factory or trading company?

We are an ISO 9001-2015 certified factory located in Shenzhen, China, with 14 years of experience in fiber optic products. Factory visits are welcome.

What is the lead time?

Sample orders typically require 1-2 days, while mass production takes 5-7 weeks depending on order quantity.

How do I place an order?

Contact us to discuss your requirements. Once agreed, we'll provide a proforma invoice. After payment confirmation via bank transfer, PayPal, or Western Union, we'll begin production.
