8 Channel CWDM Mux Module Wavelength Division Multiplexer with 1470-1610nm Wavelength High Isolation and Low Insertion Loss

Name: 8 Channel CWDM Mux Module Wavelength Division Multiplexer with 1470-1610nm Wavelength High Isolation and Low Insertion Loss
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: CWDM08MA00905LP
Price: 83.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	CWDM08MA00905LP
MOQ:	1pc
Price:	US$58-US$108
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

8ch CWDM MUX Module

Wavelength (nm):

1470-1610nm

Connector:

LC/UPC

Channel Spacing (nm):

Isolation (dB):

≥40

Return Loss (dB):

≥45

Operating Temperature (℃):

-10 To +70

Storage Temperature (℃):

-40 To +85

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Wavelength Division Multiplexers CWDM Mux Module

8 Channel CWDM Mux Module

Coarse CWDM Mux Module

Product Description

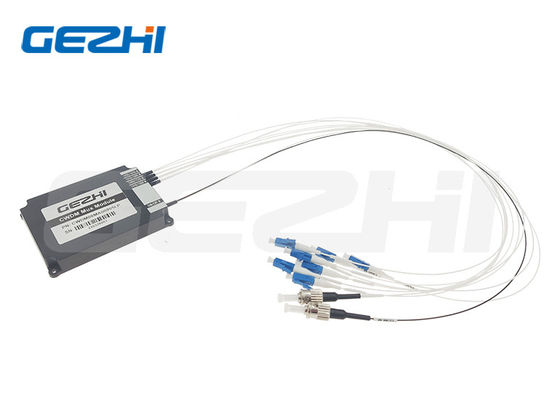

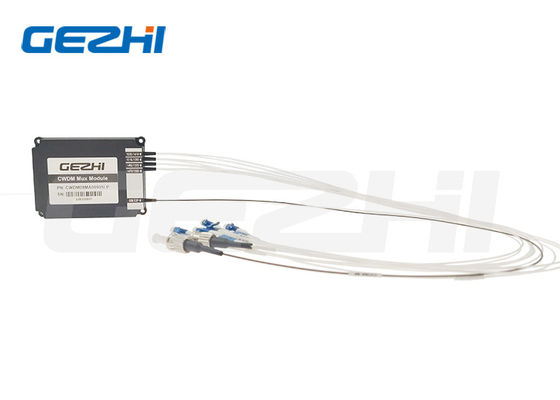

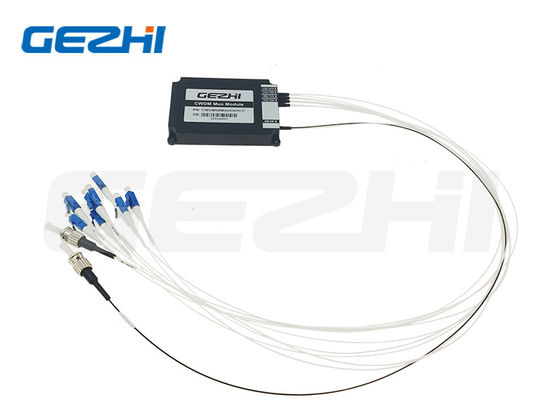

Coarse WDMs 8 Channel CWDM Mux Module Wavelength Division Multiplexers

Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low-temperature sensitivity, and epoxy free optical path.

Key Features

High isolation
Low insertion loss
Low polarization sensitivity
Wide passband
Excellent stability and reliability
Epoxy free on the optical path

Applications

WDM systems for metro/access network
Telecommunications
Optical add/Drop multiplexing
Network monitoring

Package Dimension

Technical Specifications

Parameter	4 Channels	8 Channels	16 Channels
Channel Wavelength (nm)	1270 to 1610 or 1271 to 1611
Channel Spacing (nm)	20
Channel Passband (@-0.5dB bandwidth (nm)	≥13
Insertion Loss (dB)	≤1.5	≤2.5	Low≤3.5, Standard≤4.5
Isolation (dB)	Adjacent: ≥30 Non-adjacent: ≥40
Insertion Loss Temperature Sensitivity (dB)	≤0.5
Wavelength Temperature Shifting (nm/℃)	≤0.002
Polarization Dependent Loss (dB)	≤0.2
Polarization Mode Dispersion (ps)	≤0.1
Directivity (dB)	≥50
Return Loss (dB)	≥45
Maximum Power Handling (mW)	300
Operating Temperature (℃)	-10 to +70
Storage Temperature (℃)	-40 to +85
Package Dimension (mm)	L100W80H10	L120W80H18	19" 1U Rack mount

* The above specification is without connectors

** Other specifications can be made on customer request

Order Information

CWDM	Number of Channels	Configuration	Module type	Cable type	Fiber length	Connector
CWDM	01=1 Channel	M=Mux D=Demux A=Mux+Demux	A0=ABS box 80x60x12mm	09=900um loose tube 20=2.0mm 30=3.0mm	05=0.5m 10=1.0m 15=1.5m S=Specify	00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC S=Specify
	02=2 Channel		A1=ABS box 100x80x10mm
	03=3 Channel		A2=ABS box 120x80x18mm
	04=4 Channel		A3=ABS box 140x115x15mm
	...		L1=LGX 12929130mm
	16=16 Channel		L2=LGX insert in 2slot Rack
	17=17 Channel		L4=LGX insert in 4slot Rack
	18=18 Channel		R1=19" 1 U Rack
			R2=2slot 19″1U Rack
			R4=4slot 19″1U Rack
			S=Specify
