6+1CH CWDM MUX Module with ABS Box and SC/APC LC/APC Connector for FTTX Networks

Name: 6+1CH CWDM MUX Module with ABS Box and SC/APC LC/APC Connector for FTTX Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: CWDM06M47ALP
Price: 54.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	CWDM06M47ALP
MOQ:	1pc
Price:	US$30-US$78
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Name:

6+1CH CWDM MUX

Package:

ABS Box

Connector:

SC/APC LC/APC

Fiber Type:

Single Fiber

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

CWDM Wdm Module LC/APC

CWDM Wdm Module SC/APC

6+1CH CWDM Wdm Module

Product Description

CWDM WDM Module 6+1CH CWDM MUX FTTX ABS Single Fiber SC/APC LC/APC Connector

This CWDM WDM Module features a 6+1 channel configuration with CWDM MUX functionality, designed for FTTX applications. The module utilizes ABS housing and supports single fiber connections with SC/APC and LC/APC connectors.

Applications

CWDM Systems
PON Networks
FTTX Deployments
Metro Ethernet
CATV Links

Key Features

Low Insertion Loss
Wide Pass Band
High Channel Isolation
High Stability and Reliability
Epoxy-free Optical Path
Optimized for Access Networks

1*N CWDM Mux/Demux Module Specifications

Parameters	1x2	1x4	1x8	1x16
Center Wavelength (nm)	ITU, ITU+1
Passband (nm)	ITU±6.5
Operating Wavelength (nm)	1460~1620 or 1260~1620
Channel Space (nm)	20
Fiber Type	SMF-28e or customer specified
IL (dB) (P/A Grade)	0.7/1.0	1.4/1.7	2.0/2.5	2.5/3.0
Isolation (dB)	Adjacent Channel: 30		Non-Adjacent Channel: 50
Ripple (dB)	0.3	0.4	0.5	0.5
PDL (dB)	0.2
PMD (ps)	0.1
RL (dB)	45
Directivity (dB)	50
Maximum Optical Power (mw)	500
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
BOX Package (mm)	1008010	14011518
LGX Package	1U, 2U
19'' Rack mount Package	1U

Compliance Standards

Telcordia GR-1209-CORE-2001
RoHS Compliant
Telcordia GR-1221-CORE-1999

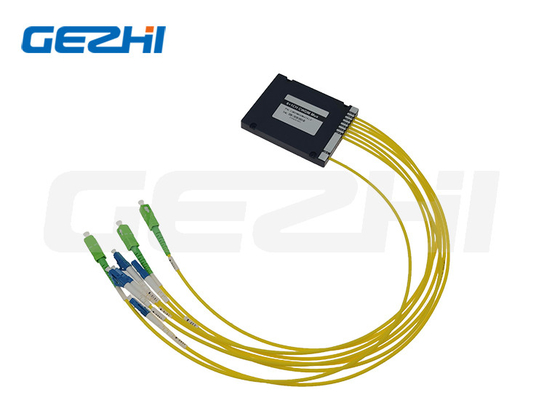

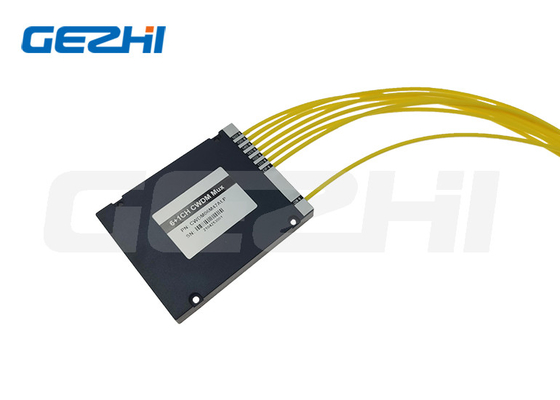

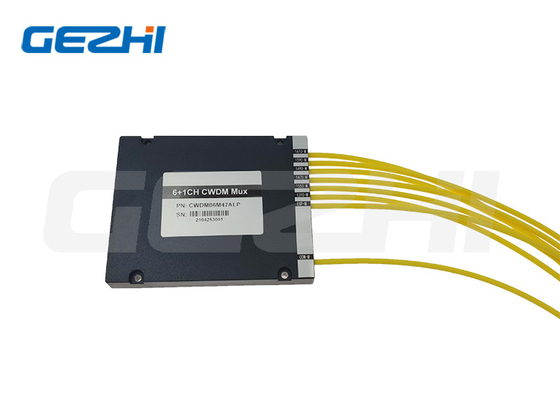

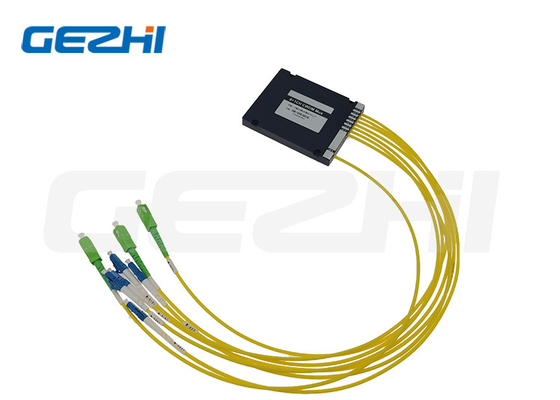

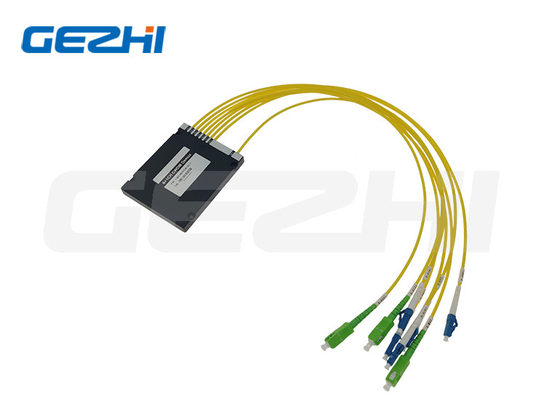

Product Images

Frequently Asked Questions

Q1: Can I place a sample order? What is your minimum order quantity?

A1: Sample orders are welcome for quality testing and verification. We do not have a minimum order quantity - single unit samples are available. Mixed samples are also acceptable.

Q2: What is your typical lead time?

A2: Standard lead time is approximately 1 week. For large quantities and specialized products, please consult with our sales representatives. We maintain stock for many products and can ship within 1-3 days after payment confirmation.

Q3: What payment methods do you accept?

A3: We accept T/T, PayPal, Western Union, cash payments, and AliPay.

Q4: What is your warranty period?

A4: We provide a 3-year warranty on all products.

Q5: Can I use my own logo, labeling, and packaging?

A5: Yes, we offer comprehensive OEM services. We can customize product labels, logos, part numbers, serial numbers, and packaging according to your specific requirements.
