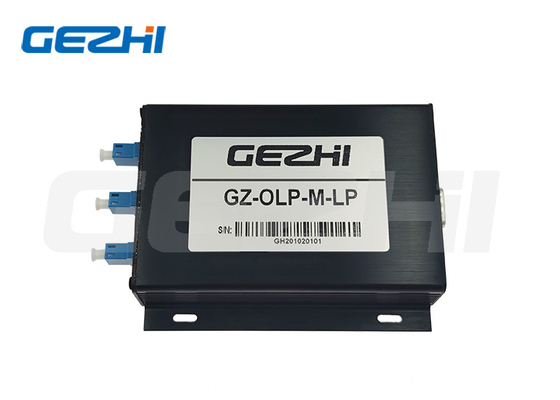

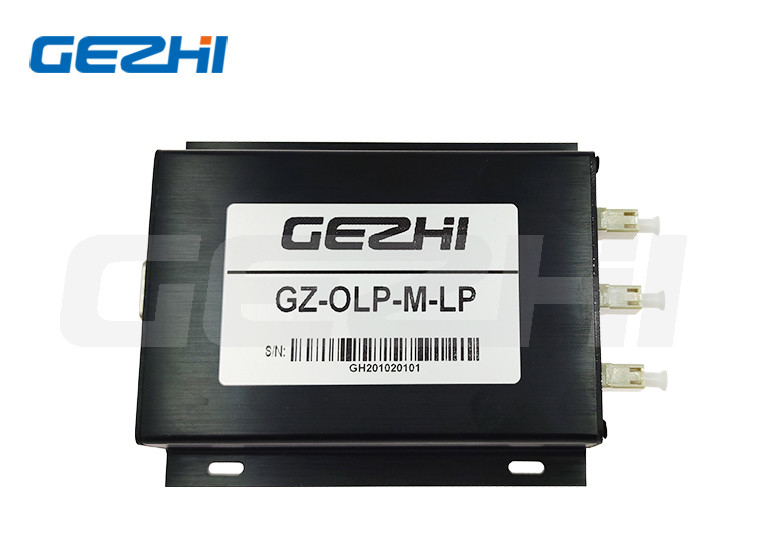

1260~1650nm Optical Line Protection Module,RS-232 serial port,LC/UPC

Overview

GZ-OLP-M-LP optical fiber protection module is a main fiber and standby optical fiber fault automatic light path switching module, the module monitoring main fiber and standby fiber at the same time, when the main optical fiber power signal is below the set value and standby optical fiber signal is normal, the module automatic switching optical path to standby optical fiber;When for standby optical fibe power signal is below the set value and the main optical fiber signal is normal, the module automatic switching optical path to the main optical fiber;The module supports RS - 232 serial port communication, can be set up by agreement or query module information.

Feratures
•Channel low insertion loss and high stability
•Real-time monitoring of the main optical fiber and standby optical fiber optical power size.

•Optical fiber main/standby switch automatically.

•Supports RS-232 serial port communication

Schematic diagram

Specifications

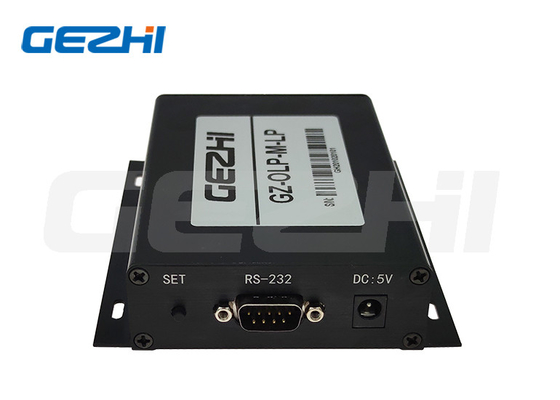

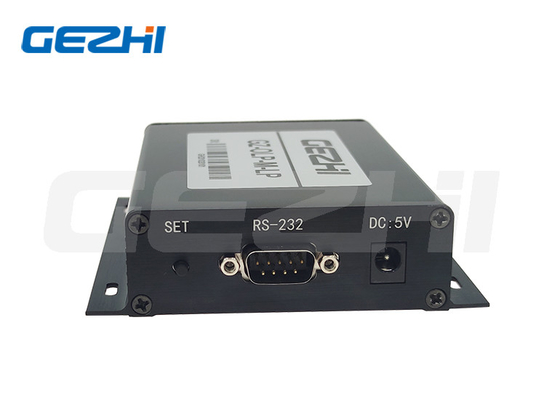

Panel description

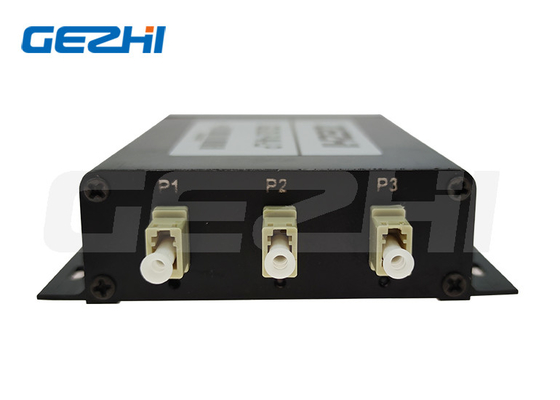

Connector 1: optical fiber Connector (common port)
Connector 2: optical fiber Connector (main fiber)
Connector 3: optical fiber Connector (standby fiber)
Indicator light 1: When the indicator light is green, the module works as the main optical fiber; when it is red, the module works as the spare optical fiber.
Indicator light 2: When the indicator light is green, the main fiber signal is normal; when it is red, the main fiber signal is out of order
Indicator light 3: When the indicator light is green, the standby fiber signal is normal; when it is red, the standby fiber signal is out of order

SET:The key is used to switch between the main fiber and the standby fiber
RS-232: Serial communication interface;
Power:Power interface(5V/500mA)

Default Setting
•RS-232:Baud rate:9600; Data bits:8 bit; Stop bit: 1 bit; Parity bit:NONE; •Optical Power Switching Value: -35dBm
SET:Allows setting

RS-232 pin definition
