| Wavelength: | 850nm Or 1260~1650nm | Control Type: | Latching Or Non-Latching |
|---|---|---|---|
| Power Supply: | 3V Or 5V | Connector: | LC/SC/FC/ST (PC Or APC) |
| Product Name: | 2x2 Fiber Optical Bypass Switches | Applications: | Reconfigurable Add/drop Multiplexers |
| High Light: | 2x2 Latching Optical Switch,1650nm Fiber Bypass Switch,2x2 Single Mode Fiber Switch |
||

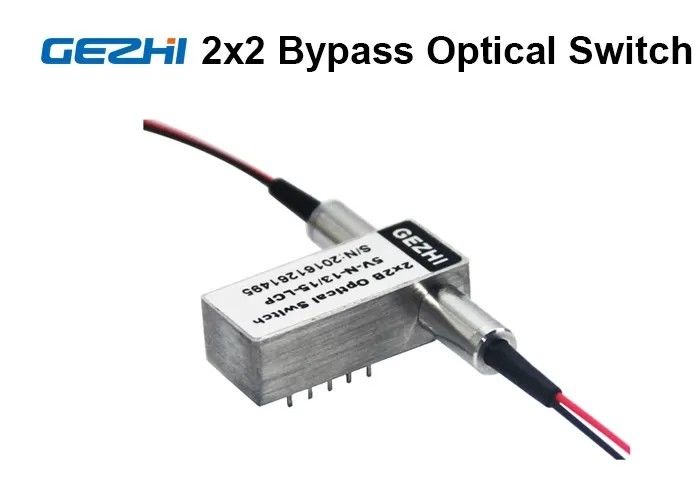

2x2 Single Mode Fiber Optical Bypass Switches for Optical Network Protection
GEZHI 2x2 optical bypass switches for 100M/1G/10G fiber optic networks protect the network from failures and ensure network integrity during power loss. Each of these GEZHI fiber optical bypass switches includes Network ports and Monitor ports. The Network ports are used for connection to main-network connections and provide protection mechanism, and the Monitor ports are used for down-link local networking device. When the power is on, the operation mode of the Bypass switch is set to Normal, and the local networking device is connected with main-network. When power failure occurs, the 2x2 optical Bypass switch is swiftly set to bypass mode to isolate the mainnetwork from the local networking device.
Features
Smallest Size
Low Insertion-‐Loss
Fast Switching Speed
PCB Mountable
Available in Single Mode / Multi Mode
RoHS Compliance
Industrial Type Available
Applications
Optical network protection and restoration
Optical network monitoring
Reconfigurable add/drop multiplexers
Transmission equipment protection
Research and development
Wavelength router
Specification
| Parameters | GZ-FSW-2×2B | ||
| Wavelength Range | nm | 850±40/1300±40 | 1260～1650 |
| Operating avelength | nm | 850/1300 | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:0.8 Max:1.2 | Typ:0.6 Max:0.8 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | v | 3.0 or 5.0 | |
| Lifetime | times | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20～+70 | |
| Storage Temperature | ℃ | -40～+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27.0×(W)12.0×(H)8.2 customization is available. | |
Optical Route
| Status One | Status Two |
|
|
 |
Pins
| Parameters | Pins | Electric Drive | Status Sensor | ||||||
| 2×2B | Optical Path | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 |
| Non-latching | P1-P3 | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P4,P2-P3 | V+ | -- | -- | GND | Open | Close | Close | Open | |
| latching | P1-P3 | -- | -- | GND | V+ | Close | Open | Open | Close |
| P1-P4 P2-P3 | V+ | GND | -- | -- | Open | Close | Close | Open | |
Order Information
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC |
2x2 Single Optical Bypass Switch / Relay Application
The picture (figure 1) is the optical transmission path network. The signal between the internet and router is is transmit by transmission equipment. When transmission equipment have problems or power off, then the signal can’t transmit . Now we will integrate the 2×2 Bypass optical switch into transmission equipment, to realize the function and ensure the system and other chain are on a normal communicating condition.
