12CH CWDM Passive Multiplexer

12CH CWDM Passive Multiplexer
12CH CWDM Passive Multiplexer 12CH CWDM Passive Multiplexer 12CH CWDM Passive Multiplexer 12CH CWDM Passive Multiplexer

Large Image :  12CH CWDM Passive Multiplexer

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: 1x12-CWDM-M
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Product Name: CWDM Multiplexer Channel No.: 12 Channel
Wavelength: 1271~1511nm Line Type: Single Fiber
Connector: LC/UPC Adaptor Application: Line Monitoring
High Light:

12CH CWDM Module

,

1x12 CWDM Mux Demux

,

12 Channel Coarse WDM




12CH CWDM Passive Multiplexer Module Plug-in 3U Rack Mount

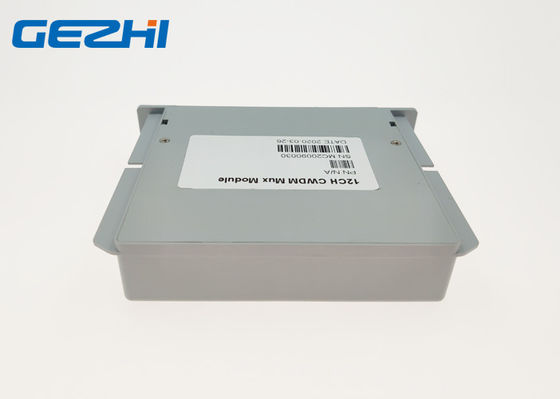

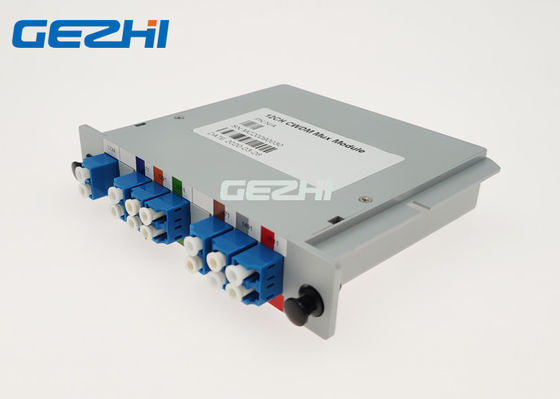

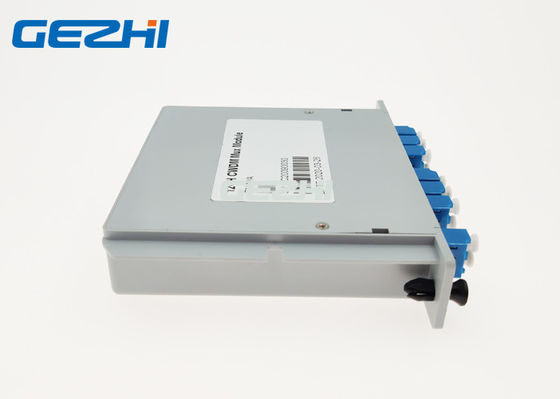

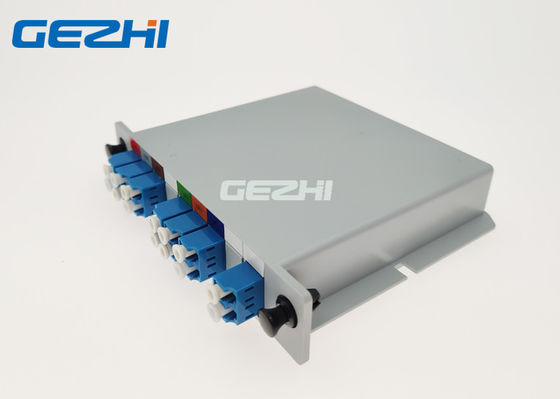

GEZHI 12CH CWDM Passive Multiplexer Module which with plug-in type ABS box package connect by LC/UPC adaptor and based on dielectric thin-film filter technology . The wavelength of 12CH CWDM Passive Multiplexer Module is from 1271nm to 1571nm, transmission on a single optical fiber with only 3dB link insertion loss. GEZHI 12CH CWDM Passive Multiplexer Module has high channel isolation and can therefore be used in a bi-directional system. The module can be used as a multiplexer or de-multiplexer which plug-in a 3U Rack Mount equipment.

Features

12 channels per fiber

Low insertion loss
Bi-directional

Can be used as multiplexer or de-multiplexer

Can be insert on 3U Rackmount Equipment


Applications
Cellular Application

Optical video networks
Line Monitoring

Event production
Dark fiber networks

Broadcast contribution networks

CWDM networks

Ordering Information

CWDM - XXX - XX - XX - XX - XX - XX
    Number of Channels   Module type   Cable type   Fiber length   Input connector

Output

connector

CWDM   01=1Channel
02=2 Channel
03=3 Channel
04=4 Channel
......
16=16Channel
17=17Channel
18=18Channel
  0=100x80x10 mm
1=142x102x14.5 mm
2=LGX Box
3=19″1U Rack
X=Others


  00=none
09=900um
Loose tube
20=2.0mm
30=3.0mm
  05=0.5m
10=1.0m
15=1.5m
30=3.0m
40=4.0m
50=5.0m
......
  0=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
X=Customized


0=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
X=Customized




Specification

Parameter



Unit

12CH CWDM Passive Multiplexer
Mux Demux
Channel Wavelength nm

1271~1571nm

Center wavelength
Accuracy

nm ±0.5
Channel Spacing nm 20

Channel Passband
(@-0.5dB bandwidth

nm >14
Max Insertion Loss dB <3.0 <3.0
Channel Ripple dB 0.3

Isolation

Adjacent dB >30
Non-adjacent dB >40

Inertion Loss Temperature
Sensitivity

dB/℃

<0.005

Wavelength Temperature
Shifting

nm/

<0.002

Polarization Dependent
Loss

dB <0.1

Polarization Mode
Dispersion

dB <0.1
Directivity dB >50
Return Loss dB >45
Maximum Power Handling mW 300
Opterating Temperature -5~+75
Storage Temperature -40~85
Package dimension mm L130x100x125



Note: 1. Customization is available.

2. Specified with connector



Filter Cascading
