| Product Name: | 4Slot*8CH-MD-1U | Wavelength: | 1470~1610+Upgrade |
|---|---|---|---|
| Channel Number: | 1x8 Mux&Demux | Line Type: | Mux+Demux In One Cassette |
| Connector: | LC/PC Adaptor | Application: | Optical Video Networks |
| High Light: | 8CH cwdm multiplexer,8 channel cwdm,1x8 cwdm equipment |
||
4 unit 8CH Optical Passive CWDM Mux/Demux Plug-in Module in 1U Rack-Mount
GEZHI 4 unit 8CH Mux/Demux CWDM Passive Multiplexer Plug-in Module is built a 8CH Mux + 8CH Demux ine one LGX cassette, then 4 cards LGX cassette built in a 19" 1U Rack-mount. The wavelenght of 4 unit 8CH Mux/Demux CWDM Passive Multiplexer Plug-in Module is 1470 to 1610nm with upgrade port for Future development and Fibre Extender. The 4 unit 8CH Mux/Demux CWDM Passive Multiplexer Plug-in Module offers an high channel isolation WDM solution for Metro access applications and data centers.
Features
High channel isolation
High Quality & Low Cost
Wide pass band
Combined mux and demux unit, working on two network fibers
Epoxy free optical path
Fully compatible with all ITU-T CWDM optics
Applications
Line monitoring
Data Centor
Access Network
Fiber optical amplifier
Metro Access application
Optical video networks
Telecommunication
Ordering Information
| CWDM | - | XXX | - | XX | - | XX | - | XX | - | XX | - | XX |
| Number of Channels | Module type | Cable type | Fiber length | Input connector |
Output connector |
|||||||
| M=Mux D=Demux MD=Mux+Demux |
01=1Channel 02=2 Channel 03=3 Channel 04=4 Channel ...... 16=16Channel 17=17Channel 18=18Channel |
0=100x80x10 mm 1=142x102x14.5 mm 2=LGX Box 3=19″1U Rack 4=2card Lgx in 1U Rack-mount 5=4card in 1U Rack-mount X=Others |
00=none 09=900um Loose tube 20=2.0mm 30=3.0mm |
05=0.5m 10=1.0m 15=1.5m 30=3.0m 40=4.0m 50=5.0m ...... |
0=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC X=Customized |
0=none |
Specification
| Parameter | 8CH Mux/Demux CWDM | |
| Center Wavelength (nm) | ITU, ITU+1 | |
| Passband (nm) | ITU±7.5 | |
| Operating Wavelength (nm) | 1470~1610+Upgrade | |
| Channel Space (nm) | 20 | |
| Fiber Type | SMF-28e or customer specified | |
| IL (dB) | <2.5dB | |
| Isolation(dB) | Adjacent Channel | 30 |
| Non-Adjacent Channel | 45 | |
| PDL (dB) | 0.2 | |
| PMD (ps) | 0.1 | |
| Return Loss (dB) | 45 | |
| Directivity (dB) | 50 | |
| Maximum Optical Power (mw) | 500 | |
| Operating Temperature (℃) | -20~+70 | |
| Storage Temperature (℃) | -40～85 | |
| Connector | LC/UPC | |
| BOX Package (mm) | 4slot 19" 1U Rackmount | |
4 unit 8CH Mux/Demux CWDM Passive Multiplexer Plug-in Module Filter cascading
1470~1610nm+UPG, 4-slot 1U 19" Rackmount, LC/UPC
8CH Mux/Demux CWDM Passive Multiplexer Two Fiber

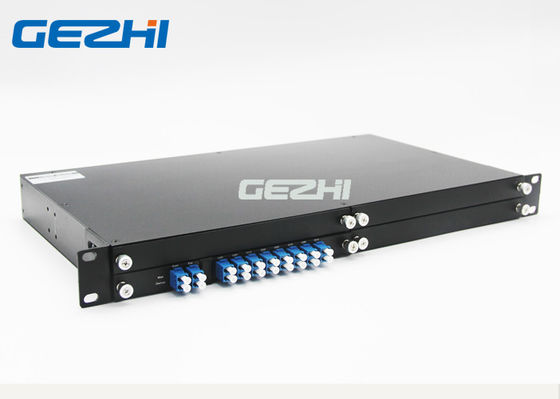

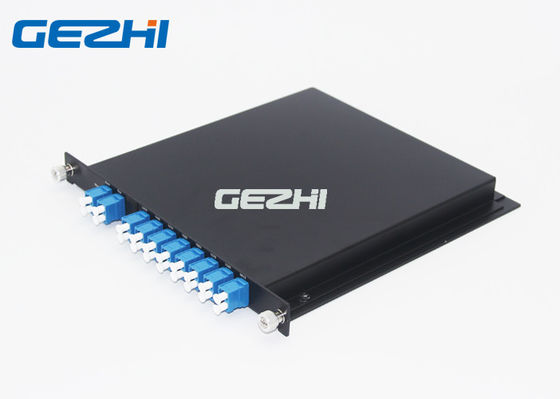

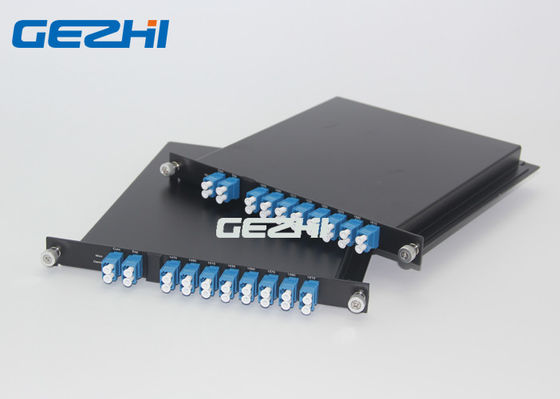

4 unit 8CH Mux/Demux CWDM Passive Multiplexer Plug-in Module built in one LGX Cassette

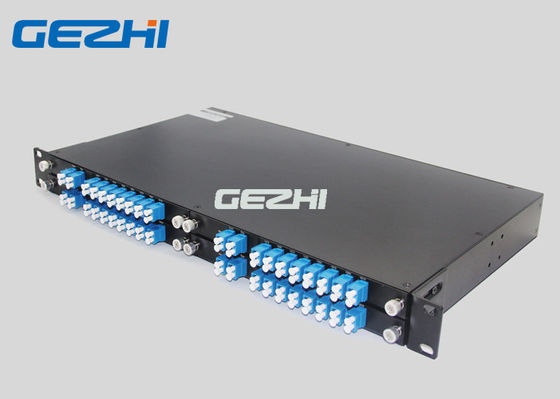

4 unit 8CH Mux/Demux CWDM Passive Multiplexer Plug-in Module built in one 19 inch 1U Rackmount
