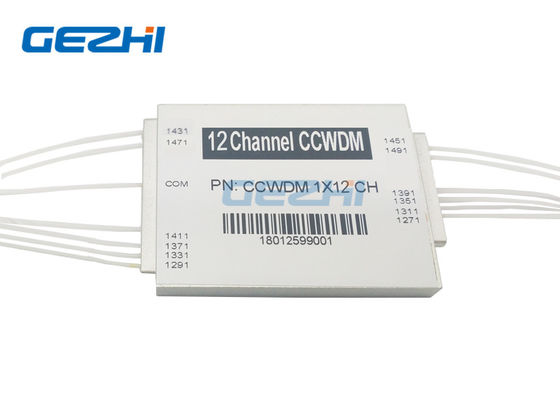

12 Channels Compact Coarse Wavelength Division Multiplexer Modules
The 12 Channels Compact Coarse Wavelength Division Multiplexer Modules from GEZHI means for adding capacity to your fiber optic network without installing additional fiber. It provides increased bandwidth and increased revenue from legacy fiber plant in one of the industry’s smallest packages. The 12 Channels Compact Coarse Wavelength Division Multiplexer Modules is based on thin film filter technology and metal bonding micro optic packaging.
The 12 Channels Compact Coarse Wavelength Division Multiplexer Modules can replace CWDM Products are used in telecommunications, corporate networks, cable TV, PON networks, and other fields. The lower insertion loss makes the CCWDM module have lower signal attenuation when used, thereby reducing the power requirements of the signal transmitter.
|
Features |
Applications |
|
|
Specifications
| Parameter | 10 Ch | 12Ch | 14 Ch | 16Ch | 18Ch | |
| Operating Wavelength (nm) | 1260~1620 | |||||
| Channel Wavelength (nm) | 1270,1290,...,1590,1610, or 1271,1291,...,1591,1611 | |||||
| Channel Spacing(nm) | 20 | |||||
| Channel Passband (nm) | CWL+/-6.5nm | |||||
| Insertion Loss(dB) | ≤1.5 | ≤1.5 | ≤1.8 | ≤1.8 | ≤2.0 | |
| Channel Ripple(dB) | ≤0.4 | |||||
| Isolation(dB) | Adjacent | >30 | ||||
| Non-adjacent | >40 | |||||
| Polarization Mode Dispersion(PS) | ≤0.2 | |||||
| Polarization Dependent Loss | ≤0.2 | |||||
| Directivity(dB) | >45 | |||||
| Return Loss(dB) | >45 | |||||
| Maximum Power Handling(mW) | 500 | |||||
| Operating Temperature(℃) | -5~+70 | |||||
| Storage Temperature(℃) | -40~85 | |||||
| Fiber Type | G657A1 | |||||
| Connector | TBD | |||||
| Package dimension(mm) | L55 x W35 x H8 | L55 x W45 x H8 | ||||
12 Channels Compact Coarse Wavelength Division Multiplexer Modules
Ordering Information
| Configuration | Channel No. | Pigtail Type | Fiber length | Declension(mm) | Connector |
| CC=CCWDM |
10=10 Channel 41=4+UPG 80=8 Channel 81=8+UPG1 82=8+UPG2 12=12 Channel …… |
0=250um 1=900um
|
0=0.5m 1=1m |
1= L55 x W35 xH8 2= L55 x W45 xH8
|
0=None 5=LC/APC 7=others |
Unique Free-Space Technology
The 12 Channels Compact Coarse Wavelength Division Multiplexer Modules adopts Free-Space technology, which uses light propagating in free space to wirelessly transmit data. Inside the device, adjacent signal channels are cascaded by parallel beam instead of the fiber. This 12 Channels Compact Coarse Wavelength Division Multiplexer Modules saves a lot of space for package box, and the unique workmanship also helps CCWDM Mux Demux with low insertion loss.
12 Channels Compact Coarse Wavelength Division Multiplexer ModulesSingle Fiber Solution
12 Channels Compact Coarse Wavelength Division Multiplexer Modules
Mechanical Drawing
TYPE 1
TYPE 2
