Non Latching Multi Mode 1x2A 850nm Fiber Optical Switches

Name: Non Latching Multi Mode 1x2A 850nm Fiber Optical Switches
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1x2A Optical Switch
Price: 360.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1x2A Optical Switch
MOQ:	1pc
Price:	Negotiable
Delivery Time:	2-7 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS FCC,ISO9001

Wavelength:

850nm

Control Type:

Non-Latching

Power Supply:

Connector:

LC/PC

Product Name:

850nm Optical Switch

Applications:

OADM

Packaging Details:

2pcs in a foam with plastic Box

Supply Ability:

60000pcs per month

Highlight:

850nm Multimode Fiber Optic Switch

1x2A Multimode Switch

OADM Optical Fiber Switch

Product Description

1x2A Multi Mode 850nm Optical Switch Non-Latching 5V with mini Metal case

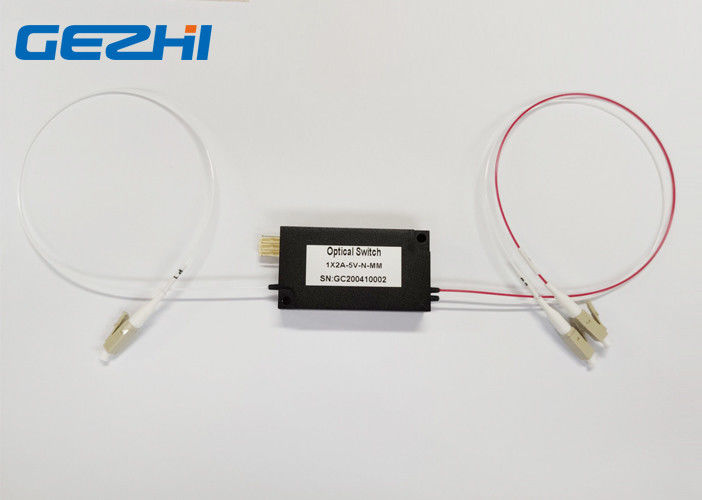

GEZHI 1x2A Multi Mode 850nm Optical Switch packing in a mini metal case and control with 4pins. The item is Non-Latching Voltage 5V with LC/PC connector. Customized specification is available.

Features
Low Insertion Loss
Fast Switching Speed
Smallest Size
High operating temperature

Applications
OADM
MAN
System Monitoring
Component Testing

Specification

Parameters		GZ-FSW-1×2A
Wavelength Range	nm	850±40 / 1300±40	1260~1650
Operating Wavelength	nm	850/1300	1310/1490/1550/1625/1650
Insertion Loss	dB	Typ:0.8 Max:1.2	Typ:0.5 Max:1.0
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	V	3.0 or 5.0
Lifetime	Time	≥10⁷
Switch Time	ms	≤8
Transmission Power	mW	≤500
Operating Temperature	℃	0~+70 or -40~+85
Storage Temperature	℃	-40~+85
Dimension	mm	(L)55×(W)30×(H)12.8

Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.

Optical Route

Control Model	Electric Drive		Status Sensor	Optical Path
Control Model	Pin 1	Pin 2	Pin3- Pin4	Optical Path
Latching	V+	GND	Open	P1-P2
Latching	GND	V+	Close	P1-P3
Non-latching	V+	GND	Close	P1-P3
Non-latching	GND	GND	Open	P1-P2

Electric

Specifications	Voltage	Current	Resistance
5V Latching	4.5~5.5	36~44mA	125Ω
5V Non-latching	4.5~5.5	25~31mA	178Ω
3V Latching	2.7~3.3	54~66mA	50Ω
3V Non-latching	2.7~3.3	42~51mA	65Ω

1x2A Optical Switch Order Information

GZ-FSW-1x2A-x-xx-x-x-x-xx-x-xx

Mode	Wavelength	Voltage Type	Control Model	Fiber Type	Fiber Diameter	Fiber Length	Connector
S=SM M=MM	85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others	3=3V 5=5V	L=Latching N=Non- Latching	5=50/125 6=62.5/125 9=9/125 X=Others	25=250um 90=900um 20=2.0mm 30=3.0mm X=Others	1=1m 2=1.5m X=Others	00=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC STP=ST/PC STA=ST/APC LP=LC/PC LA=LP/APC X=Others
