Single Fiber Mini T1310nm 1 Channel CWDM Passive Multiplexer

Name: Single Fiber Mini T1310nm 1 Channel CWDM Passive Multiplexer
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1CH CWDM
Price: 1.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1CH CWDM
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS FCC,ISO9001

Wavelength:

T1310nm,R1270&1330nm

Line Type:

Single Fiber

Connector:

COM&1310-SC/APC, OTH:LC/PC

Package:

ABS Box 90x20x10mm

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

T1310nm WDM Module

1 Channel CWDM Module

1CH Passive CWDM

Product Description

1 Channel CWDM Passive Multiplexer Mini WDM Module T1310nm/R1270&1330nm

GEZHI 1Channel CWDM Passive Multiplexer was packaged in a mini ABS box with size 90x20x10mm. With pass wavelength 1310nm and reflect wavelength 1270&1330nm. Its can ADD or Drop singnal in optical Link.

For the wavelength of 1 Channel CWDM Passive Multiplexer, customized is available. (1270~1610nm or 1271~1611nm)

Features

Low Insertation Loss

Mini ABS Box
Epoxy Free Optical Path

High Reliable and Stable

Applications

Telecom Networks

SDH/SONET Network

Fiber Channel

Metro/Access Networks

CWDM Channel Add/Drop
CATV Fiberoptic System

Specification

Parameter		1 Channel CWDM Passive Multiplexer
Center Wavelength (nm)		Pass 1310nm, Reflect 1270&1330nm
Passband (nm)		ITU±7.5
Operating Wavelength (nm)		Pass 1310nm, Reflect 1270&1330nm
Channel Space (nm)		20
Fiber Type		SMF-28e or customer specified
Pass 1310nm IL (dB)		<0.6dB
Reflect 1270&1330nm IL (dB)		<0.3dB
Isolation(dB)	Adjacent Channel	30
	Non-Adjacent Channel	45
PDL (dB)		0.2
PMD (ps)		0.1
Return Loss (dB)		45
Directivity (dB)		50
Maximum Optical Power (mw)		500
Operating Temperature (℃)		-20~+70
Storage Temperature (℃)		-40～85
BOX Package (mm)		ABS Box 90x20x10mm

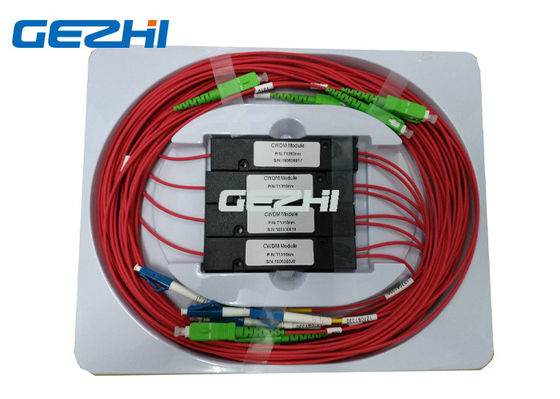

1-channel CWDM Passive Multiplexer

COM-SC/APC, Pass: 1310nm-SC/APC, Reflect: 1270&1330nm-LC/UPC

2.0mm Cable, 1meter

ABS Box: 90x20x10mm

Single Fiber Mini T1310nm 1 Channel CWDM Passive Multiplexer 0
