LGX Cassette CATV Network 3 Port FWDM Pass 1550nm Filter WDM

Name: LGX Cassette CATV Network 3 Port FWDM Pass 1550nm Filter WDM
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: FWDM
Price: 7.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	FWDM
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength:

T1550nm R1310&1490nm

Port:

3 Port

Package:

LGX Cassette

Connector:

SC/APC

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

1310nm FWDM Multiplexers

1490nm Wavelength Division Multiplexer

1550nm FWDM Device

Product Description

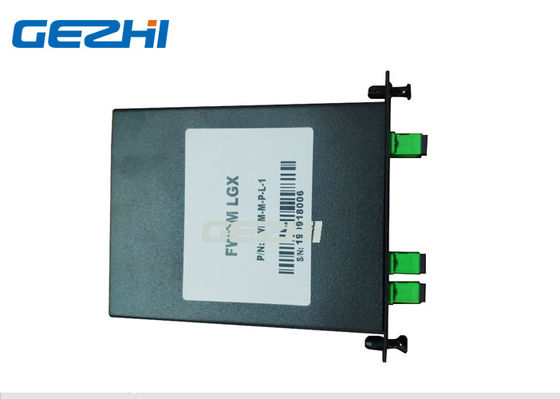

3port FWDM Pass 1550nm Refelect 1310&1490nm WDM for CATV network

GEZHI 3port Filter Wavelength Division Multiplexer(FWDM) T1550nm R1310&1550nm is based on thin film filter technology. The device features epoxy free optical path, low insertion loss, high extinction ratio, high reliability and high stability.

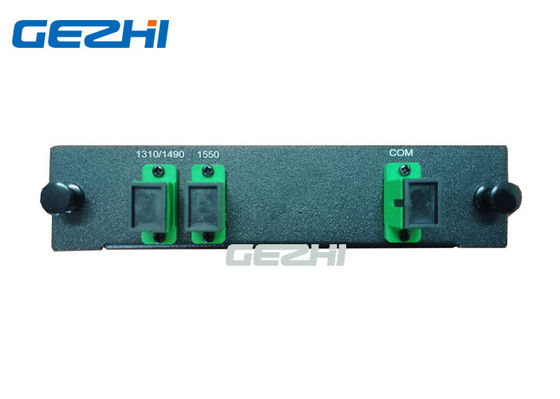

The 3 port FWDM device packed in a LGX cassette with SC/APC connector. which can use on CATV network.

Features

Low PDL
RoHS compliant

Low insertion loss
Optical path epoxy free

Applications

CATV
WDM system

Specification

Parameters	Unit	FWDM Device
Operating Wavelength T: transmission wavelength R: reflection wavelength 1310±50,1490±10, 1550±10 1610±10, 1625±25, 1650±20	nm	1	T1550 R1310/1490
		2	T1490 R1310/1550
		3	T1310 R1490/1550
		4	T1550/1610 R1310/1490
		5	T1550/1625 R1310/1490
		6	T1625 R1310/1490/1550
		7	T1650 R1310/1490/1550
Insertion Loss	dB	Transmission: ≤ 0.6
		Reflection: ≤ 0.4
Transmission Channel Isolation	dB	≥ 30
Reflection Channel Isolation	dB	≥ 17
PDL	dB	≤ 0.1
Wavelength thermal stability	nm/℃	≤ 0.003
Insertion loss thermal stability	dB/℃	≤ 0.005
Return loss	dB	≥ 45
Optical Power	mW	≤ 500
Operating Temperature	℃	-10 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Dimension	mm	Φ5.5×34	Φ4.2×25	90×20×10
Note: 1. Customization is available. 2. Specified without connector, and add an additional 0.2dB loss per connector.

Ordering Information:

Wavelength

Tube Type

Fiber Length
(Include connector)

Connector

Dimension

T15R13/14=T1550 R1310/1490

T14R13/15=T1490 R1310/1550

T13R14/15=T1310 R1490/1550

T15/16R13/14=T1550/1610R1310/1490

X=Others

25=250um

90=900um 20:2000um

30=3000um

X=Others

05=0.5m±0.05m

10=1.0m±0.05m

15=1.5m±0.05m

X= Others

00=None

FP=FC/PC

FA=FC/APC

SP= SC/PC

SA=SC/APC

STP=ST/PC

STA=ST/APC

LP=LC/PC

LA=LC/APC

X=Others

5534=Φ5.5×34mm

4225=Φ4.2×25mm

9021=90×20×10mm

X=Customized

Tags:

Products Details

Home Products

Filter WDM

LGX Cassette CATV Network 3 Port FWDM Pass 1550nm Filter WDM

All Category

LGX Cassette CATV Network 3 Port FWDM Pass 1550nm Filter WDM

Brand Name:	GEZHI or OEM
Model Number:	FWDM
MOQ:	1pc
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

GEZHI or OEM

Certification:

CE RoHS,ISO9001

Model Number:

FWDM

Wavelength:

T1550nm R1310&1490nm

Port:

3 Port

Package:

LGX Cassette

Connector:

SC/APC

Minimum Order Quantity:

1pc

Price:

Negotiable

Packaging Details:

Paper box

Delivery Time:

5-8 work days

Payment Terms:

T/T, Western Union

Supply Ability:

100000Channel per month

Highlight:

1310nm FWDM Multiplexers

1490nm Wavelength Division Multiplexer

1550nm FWDM Device

Product Description

3port FWDM Pass 1550nm Refelect 1310&1490nm WDM for CATV network

The 3 port FWDM device packed in a LGX cassette with SC/APC connector. which can use on CATV network.

Features

Low PDL
RoHS compliant

Low insertion loss
Optical path epoxy free

Applications

CATV
WDM system

Specification

Parameters	Unit	FWDM Device
Operating Wavelength T: transmission wavelength R: reflection wavelength 1310±50,1490±10, 1550±10 1610±10, 1625±25, 1650±20	nm	1	T1550 R1310/1490
		2	T1490 R1310/1550
		3	T1310 R1490/1550
		4	T1550/1610 R1310/1490
		5	T1550/1625 R1310/1490
		6	T1625 R1310/1490/1550
		7	T1650 R1310/1490/1550
Insertion Loss	dB	Transmission: ≤ 0.6
		Reflection: ≤ 0.4
Transmission Channel Isolation	dB	≥ 30
Reflection Channel Isolation	dB	≥ 17
PDL	dB	≤ 0.1
Wavelength thermal stability	nm/℃	≤ 0.003
Insertion loss thermal stability	dB/℃	≤ 0.005
Return loss	dB	≥ 45
Optical Power	mW	≤ 500
Operating Temperature	℃	-10 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Dimension	mm	Φ5.5×34	Φ4.2×25	90×20×10
Note: 1. Customization is available. 2. Specified without connector, and add an additional 0.2dB loss per connector.

Ordering Information:

Wavelength

Tube Type

Fiber Length
(Include connector)

Connector

Dimension

T15R13/14=T1550 R1310/1490

T14R13/15=T1490 R1310/1550

T13R14/15=T1310 R1490/1550

T15/16R13/14=T1550/1610R1310/1490

X=Others

25=250um

90=900um 20:2000um

30=3000um

X=Others

05=0.5m±0.05m

10=1.0m±0.05m

15=1.5m±0.05m

X= Others

00=None

FP=FC/PC

FA=FC/APC

SP= SC/PC

SA=SC/APC

STP=ST/PC

STA=ST/APC

LP=LC/PC

LA=LC/APC

X=Others

5534=Φ5.5×34mm

4225=Φ4.2×25mm

9021=90×20×10mm

X=Customized

Tags:
