LGX Plug In 8CH Coarse Wavelength Division Multiplexer

LGX Plug In 8CH Coarse Wavelength Division Multiplexer
LGX Plug In 8CH Coarse Wavelength Division Multiplexer LGX Plug In 8CH Coarse Wavelength Division Multiplexer LGX Plug In 8CH Coarse Wavelength Division Multiplexer

Large Image :  LGX Plug In 8CH Coarse Wavelength Division Multiplexer

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: 8CH-LGX
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Product Name: CWDM LGX Wavelength: 1470~1610
Channel Number: 8 Channel Line Type: Single Fiber
Connector: LC/PC Application: Line Monitoring
High Light:

8 Channel cwdm passive multiplexer

,

8CH CWDM Module

,

LGX Passive CWDM Mux



8+1CH Coarse Wavelength Division Multiplexer LGX Plug-in Module



GEZHI 8+1 Channel coarse wavelength division multiplexer pack a mux in a LGX cassette with LC/UPC adaptor. The LGX chassis Plug-in Modules fits into one half of 19"1U Rack Mount that can be mountes on a Rack. The wavelenght of 8+1CH Coarse wavelength division multiplexer is 1470~1610nm also with a Upgrade port for for Future Bandwidth Increasing. The CWDM Expansion port makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.



The 8CH CWDM Module is use sinlge fiber for Short-haul Transmission It's protocol and rate transparent supporting such applications as SDH/SONET, 1G/10G Ethernet and 8/4/2/1G Fiber Channel across the same fiber link.



Features

Ultra low insertion loss

high channel isolation

Protocal and rate transparent for applications up to 10Gbps
Completely passive, no power& no cooling required



Applications

Access Network

Line monitoring

Cellular Application

Telecommunication

WDM network
Fiber optical amplifier



Specification

Parameter 8CH Mux or Demux
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±6.5
Operating Wavelength (nm) 1470~1610nm
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) <2.5dB
Isolation(dB) Adjacent Channel 30
  Non-Adjacent Channel 45
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -10~+70
Storage Temperature (℃) -40~85
Connector LC/UPC adaptor
BOX Package (mm) LGX cassette

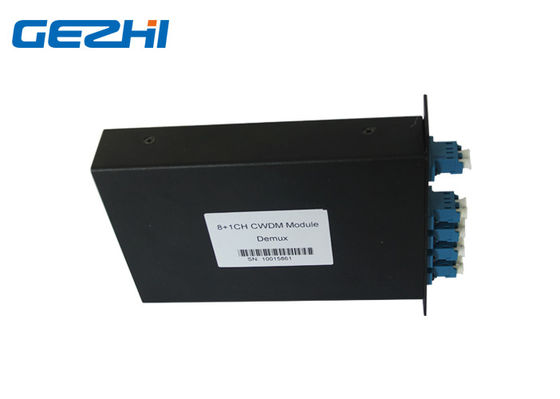

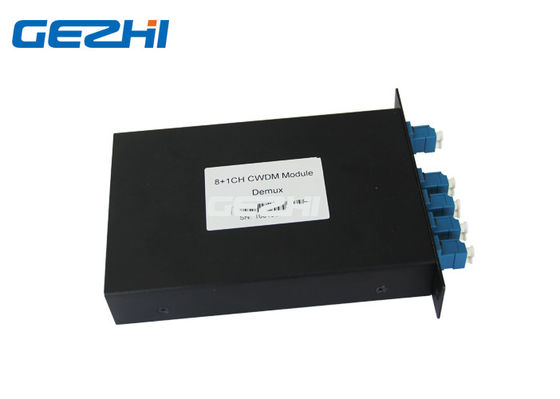

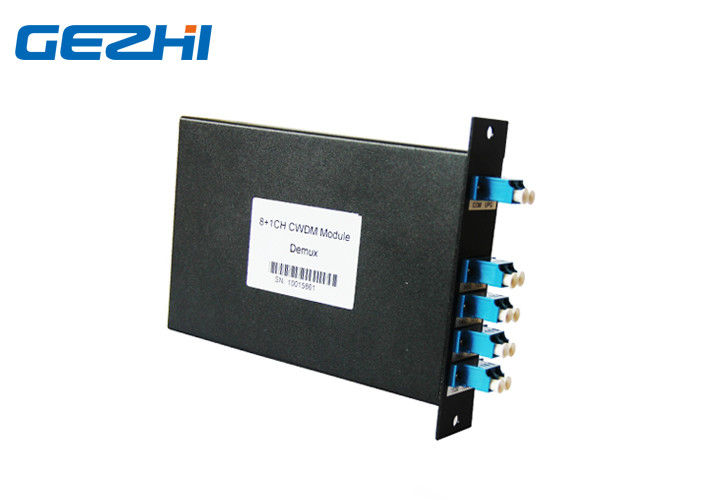

8+1CH Coarse Wavelength Division Multiplexer Demux Module in LGX cassette

LGX Plug In 8CH Coarse Wavelength Division Multiplexer 0
