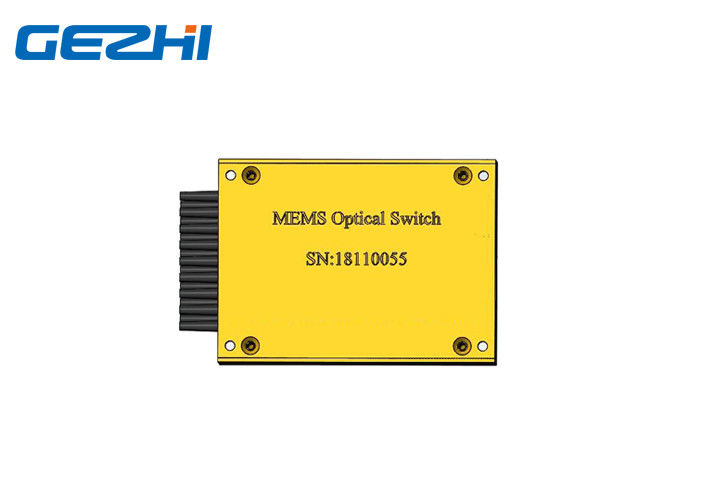

1x16 Wide passband MEMS Fiber Optical Switch Singlemode
GEZHI’s MEMS Optical Switch is based on a micro-electromechanical system (MEMS) chip. The MEMS chip consists of an electrically movable mirror on a silicon support. A voltage applied to the MEMS chip causes the mirror to rotate, which changes the coupling of light between the input and output fibers of the MEMS Optical Switch.
Features
High speed Switching Times
High stability and high reliability
Low insertion loss and Low PDL
Insensitive to Shock and Vibration
Applications
Switching
Network Monitoring
Blocking
Specification
| Parameter | Unit | Value |
| Switching Channel | -- | 1XN (1X4,1X8,1x12,1X16,1X32) |
| Wavelength | nm | C band/L band/C+L/others |
| Insertion Loss | dB | ≤0.8/1.0/1.2/1.5/1.7 |
| Repeatability | dB | ≤±0.02 |
| Return Loss | dB | ≥50 |
| Cross Talk | dB | ≥50 |
| Wavelength Dependent Loss | dB | ≤0.3 |
| Polarization Dependent Loss | dB | ≤0.2 |
| Temperature Dependent Loss | dB | ≤0.3 |
| Switching Time | ms | ≤15 |
| Optical Power Handling | mW | ≤500 |
| Switch Type | -- | Non-latching |
| Power Voltage | V | 5±10% |
| Power Consumption | W | ≤0.4 |
| Durability | Cycles | 1 Billion Min. |
| Operating Temperature | ℃ | -5 ~+70 |
| Operating Relative Humidity | %RH | 5~90 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Storage Relative Humidity | %RH | 5~90 |
| Fiber type | -- | SMF-28 or Equivalent |
Notes:
1. Specified without connectors;
2 .O band: 1290~1330nm, C band: 1530~1570nm, L band: 1570~1610nm, Full band: 1270~1620nm
3. IL is measured at CWL, 23 ℃. IL is for single-band. Dual-band adds 0.2 dB.
4. WDL is measured in a +/- 20nm range at 23 ℃
5. Repeatability is defined after 100 cycles
6. Fiber type: SMF-28 with 0.9mm loose tube or equivalent
MEMS CHip
Order Information
GZ-MS-1x16-x-x-xx-xx-x
| Mode | Channel | Wavelength | Fiber Type | Fiber Length | Connector | Control Type |
| MS=MEMS Switch |
1xN Specify N, where N≤32 |
1=O band 2=C band 3=L band 4=C+L 5=O+C X=Customized |
1=SMF-28 X=Customized |
05=0.5M 10=1.0m X=Others |
NC=None FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC LP=LC/UPC LA=LC/APC |
1=TTL/I2C 2=TTL/RS232 |
|
|
