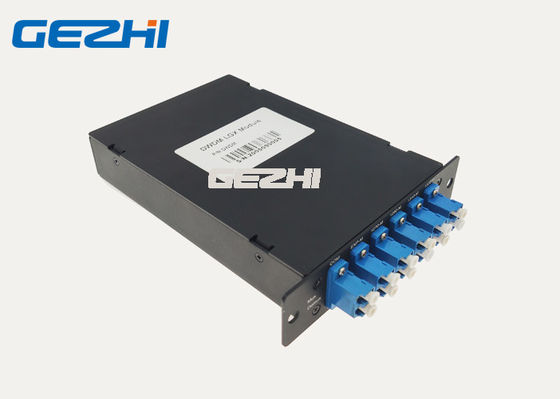

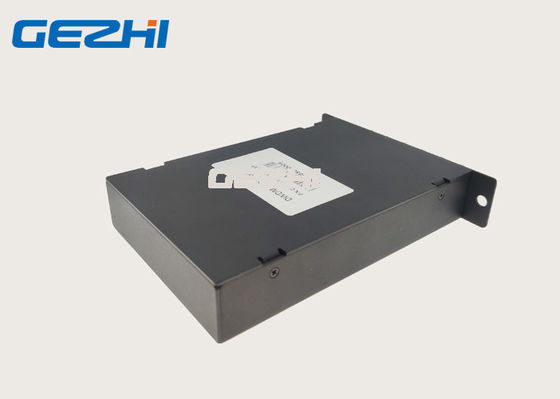

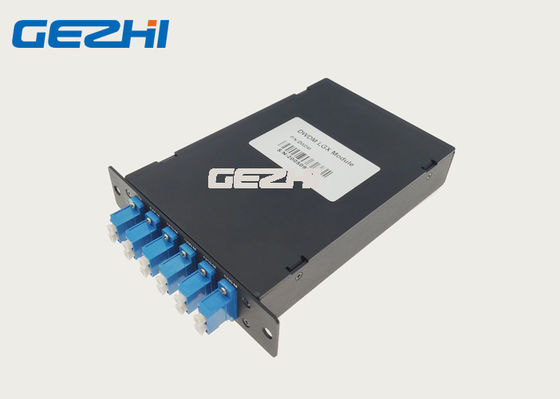

1x4 Channel Passive DWDM Mux Module with 100Ghz Grid and Duplex Fiber for High-Capacity Networks

Name: 1x4 Channel Passive DWDM Mux Module with 100Ghz Grid and Duplex Fiber for High-Capacity Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1x4CH-DWDM-LGX
Price: 118.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1x4CH-DWDM-LGX
MOQ:	1pc
Price:	US$68-US$168
Delivery Time:	5-8 work days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS ,ISO9001

Product Name:

1x4 DWDM

Wavelength:

C21 To C24

Channel Passband:

0.8nm (100Ghz)

Connector:

LC/UPC

Application:

CATV Fiber Optic Links

Line Type:

Duplex Fiber

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

1x4 DWDM

100Ghz DWDM Splitter

4CH DWDM Mux Module

Product Description

Duplex Fiber 100Ghz 1x4 Channel Passive DWDM Mux Module

This 1x4 Channel Passive DWDM Mux module with Express Port offers high-capacity terminal DWDM solutions for network expansion. Designed for long-haul transmission where wavelengths are packed tightly together over the C-band (up to 48 wavelengths in 100GHz grid), this protocol-transparent module supports applications including SDH/SONET, 16/8/4/2/1G Fibre Channel, 10/1G Ethernet, CATV, and FTTx.

Applications

CATV Fiber Optic Links
Long Haul Networks
Channel Add/Drop
Dense WDM Systems
Metro Networks
Wavelength Routing
Access / Enterprise Networks

Features

Epoxy-Free Optical Path
High stability and reliability
High channel capacity
Low Insertion Loss
Wide pass band
Telcordia GR-1221 Compliant

Technical Specifications

Parameter	Unit	Passive DWDM Mux Module
Channel Number	--	1x4
Operation Wavelength	nm	C21,C22,C23,C24 + Express Port
Channel Central Wavelength	nm	ITU-T Grid @DWDM
Channel Passband	nm	0.8 (100Ghz)
Insertion Loss @PB	dB	<1.8
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>40
Isolation @Reflect Channel	dB	>15
Passband Ripple	dB	<0.5
Polarization Dependent Loss	dB	<0.15
Polarization Mode Dispersion	ps	<0.1
Directivity & Return Loss	dB	Directivity: >50 Return Loss:>45
Power Handling	mW	<500
Connector	--	LC/UPC adaptor
Fiber Type	--	SMF-28e or Customized
Operating Temperature	℃	-20 ~ +70
Storage Temperature	℃	-40 ~ +85
Package Dimension	mm	LGX cassette

1x4 Channel Passive DWDM Mux Module Filter Cascading

Dual Fiber DWDM Configuration
