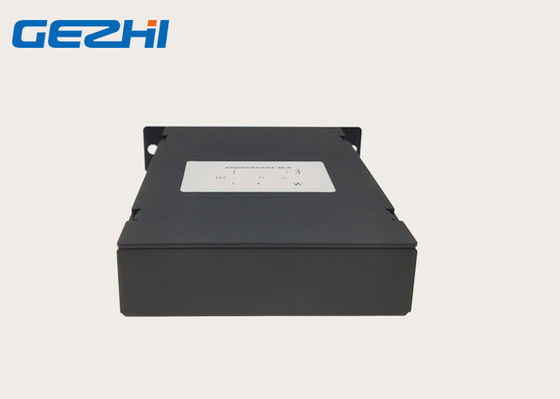

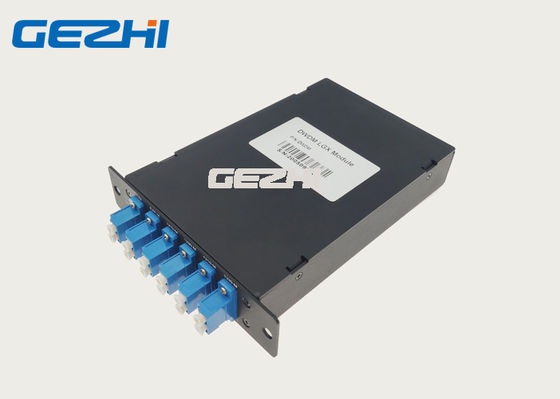

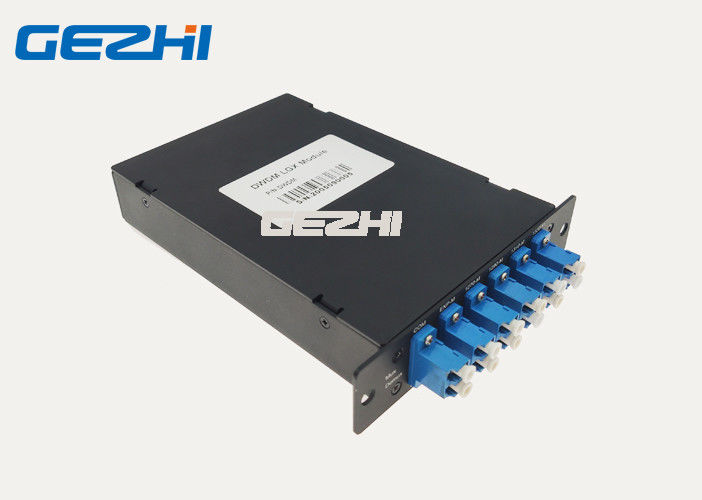

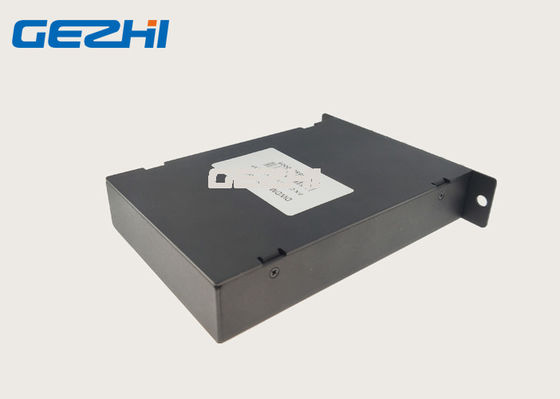

Duplex Fiber 100Ghz 1x4 Channel Passive DWDM Mux Module

Duplex Fiber 100Ghz 1x4 Channel Passive DWDM Mux Module
Duplex Fiber 100Ghz 1x4 Channel Passive DWDM Mux Module Duplex Fiber 100Ghz 1x4 Channel Passive DWDM Mux Module Duplex Fiber 100Ghz 1x4 Channel Passive DWDM Mux Module Duplex Fiber 100Ghz 1x4 Channel Passive DWDM Mux Module

Large Image :  Duplex Fiber 100Ghz 1x4 Channel Passive DWDM Mux Module

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS ,ISO9001
Model Number: 1x4CH-DWDM-LGX
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Product Name: 1x4 DWDM Wavelength: C21 To C24
Channel Passband: 0.8nm (100Ghz) Line Type: Duplex Fiber
Connector: LC/UPC Application: CATV Fiber Optic Links
High Light:

1x4 DWDM

,

100Ghz DWDM Splitter

,

4CH DWDM Mux Module



1x4 Channel Passive DWDM Mux module with Express Port 100Ghz DWDM Splitter



This 1x4 Channel Passive DWDM Mux module offers high-capacity terminal DWDM solutions for network expansion. The 1x4 Channel Passive DWDM Mux module is used for long-haul transmission where wavelengths are packed tightly together over the C-band, up to 48 wavelengths in 100GHz grid (0.8nm). The 1x4 Channel Passive DWDM Mux module with Express port C21 to C24 wavelength is protocol transparent and suited for applications including SDH/SONET, 16/8/4/2/1G Fibre Channel, 10/1G Ethernet, CATV, FTTx, etc.



GEZHI’ 1x4 Channel Passive DWDM Mux module  is a low loss, high density passive optical module which based on the thin film coating technology with C21, C22, C23, C24 wavelength with a express port for future development and Fibre Extender . The 1x4 Channel Passive DWDM Mux module offers an high channel isolation WDM solution for data centers and Metro access applications. Its package with Plug-in LGX cassette.



Features

Epoxy-Free Optical Path

High stability and reliability

High channel

Low Insertion Loss

Wide pass band

Telcordia GR-1221 Compliant



Applications

CATV Fiber Optic Links

Long Haul Networks

Channel Add/Drop

Dense WDM Systems
Metro Networks

Wavlength Routing

Access / Enterprise Networks



Specification

Parameter Unit Passive DWDM Mux Module
Channel Number -- 1x4
Operation Wavelength nm C21,C22,C23,C24 +Express Port
Channel Central Wavelength nm ITU-T Grid @DWDM
Channel Passband nm 0.8 (100Ghz)
Insertion Loss @PB dB <1.8
Isolation @Adjacent Channel dB >30
Isolation @Non-adjacent Channel dB >40
Isolation @Reflect Channel dB >15
Passband Ripple dB <0.5
Polarization Dependent Loss dB <0.15
Polarization Mode Dispersion ps <0.1
Directivity & Return Loss dB Directivity: >50 Return Loss:>45
Power Handling mW <500
Connector -- LC/UPC adaptor
Fiber Type -- SMF-28e or Customized
Operating Temperature -20 ~ +70
Storage Temperature -40 ~ +85
Package Dimension mm LGX cassette



1x4 Channel Passive DWDM Mux module filter cascading

Duplex Fiber 100Ghz 1x4 Channel Passive DWDM Mux Module 0

1x4 Channel Passive DWDM Mux module

Dual Fiber DWDM



Duplex Fiber 100Ghz 1x4 Channel Passive DWDM Mux Module 1
