One Fiber 2CH Optical Add & Drop OADM Module West and East BIDI transmission

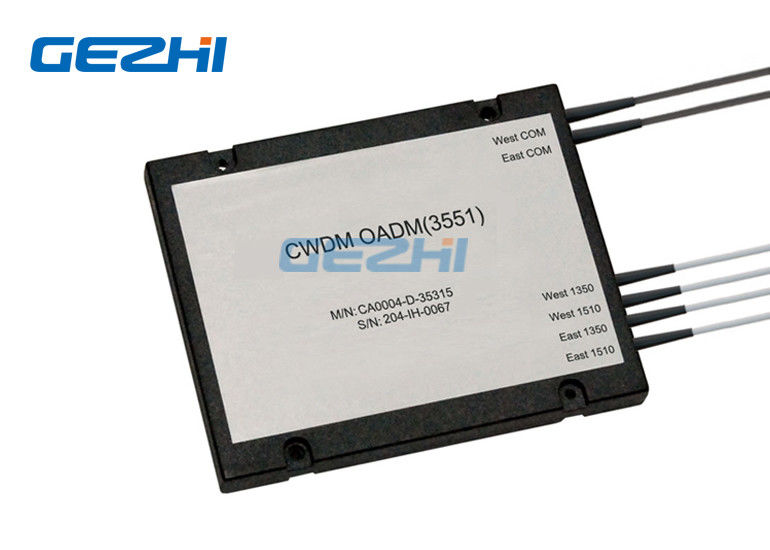

GEZHI's One Fiber 2CH Optical Add & Drop OADM Module West and East BIDI transmission with CWDM wavelength1350nm and 1510nm. The One Fiber 2CH Optical Add & Drop OADM Module West and East BIDI transmission combines wavelength channels onto an optical transmission fiber. Gezhi's One Fiber 2CH Optical Add & Drop OADM Module West and East BIDI transmission are used in WDM systems for multiplexing or demultiplexing and routing fiber optic signals, selectively adding and dropping individual or sets of wavelength channels from a CWDM stream. This 2CH Optical Add & Drop OADM module are available in dual-sided (East and West) configurations supporting up to two wavelengths on one fiber.
|
Features Single Fiber working Low Insertion Loss Dual-sided East and West Flexible OADM networking No electric power required
|
Applications Optical Add and Drop Telecommunication WDM Network Acess Network Long Haul Networks
|
Specification
|
Parameter |
Unit |
2CH CWDM OADM | ||
| Add | Drop | |||
| Channel Wavelength | nm | 1350 and 1510nm | ||
|
Center wavelength Accuracy |
nm | ±0.5 | ||
| Channel Spacing | nm | 20 | ||
|
Channel Passband (@-0.5dB bandwidth |
nm | >15 | ||
| Insertion Loss | dB | <0.9 | <0.9 | |
| Channel Ripple | dB | 0.3 | ||
|
Isolation |
Adjacent | dB | >30 | |
| Non-adjacent | dB | >40 | ||
|
Inertion Loss Temperature Sensitivity |
dB/℃ |
<0.005 |
||
|
Wavelength Temperature Shifting |
nm/ ℃ |
<0.002 | ||
|
Polarization Dependent Loss |
dB | <0.1 | ||
|
Polarization Mode Dispersion |
dB | <0.1 | ||
| Directivity | dB | >50 | ||
| Return Loss | dB | >45 | ||
| Maximum Power Handling | mW | 300 | ||
| Opterating Temperature | ℃ | -20~+70 | ||
| Storage Temperature | ℃ | -40~85 | ||
| Package dimension | mm | L100x80x10 | ||
Note: 1. Customization is available.
2. Specified with connector
Drawing
2Channel CWDM OADM West and East on single fiber
It drops the individual channel and adds that same channel back onto the network fiber in dual-sided transmission.
21 channel 1350nm and 1510nm CWDM add & drop multiplexer for EAST and WEST for bi-directional data transmission over single fibers.
2 Channel Optical Add Drop Multiplexer west and east filter cascading
2 Channel OADM Multiplexer Module Add and Drop 1350&1510nm West and East Single Fiber
|
|
