| Brand Name: | GEZHI or OEM |
| Model Number: | 1CH-OADM-D-WE-S |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

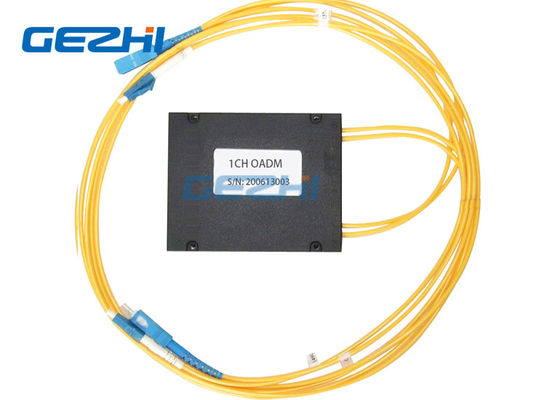

One Way 1CH DWDM Optical Add and Drop Multiplexer Module
GEZHI’ One Way 1CH DWDM Optical Add and Drop Multiplexer Module packed in a ABS box module which is a low insertion loss, high density passive optical module and based on the thin film coating technology with C35 wavelength. Its package one 1CH West and East DWDM OADM module in a ABS Box. This One Way 1CH DWDM Optical Add and Drop Multiplexer Module are used in WDM systems for multiplexing and demultiplexing and routing fiber optic signals, selectively adding and dropping individual or sets of wavelength channels from a DWDM stream. This GEZHI's One Way 1CH DWDM Optical Add and Drop Multiplexer Module are available in dual-sided (East and West) configurations supporting up to two wavelengths on one fiber.
| Features | Applications |
|
|
Specification
| Parameter |
Unit |
1CH BIDI OADM West and East | ||
| Add | Drop | |||
| Channel Wavelength | nm |
C35 |
||
|
Center wavelength Accuracy |
nm | ITU-T Grid @DWDM | ||
|
Channel Passband |
nm | 0.8 (100Ghz) | ||
| Insertion Loss | dB | <0.7 | <0.7 | |
| Channel Ripple | dB | 0.5 | ||
| Isolation | Adjacent | dB | >30 | |
| Non-adjacent | dB | >40 | ||
|
Inertion Loss Temperature Sensitivity |
dB/℃ | <0.005 | ||
|
Wavelength Temperature Shifting |
nm/ ℃ |
<0.002 | ||
|
Polarization Dependent Loss |
dB | <0.15 | ||
|
Polarization Mode Dispersion |
dB | <0.1 | ||
| Directivity | dB | >50 | ||
| Return Loss | dB | >45 | ||
| Maximum Power Handling | mW | 300 | ||
| Opterating Temperature | ℃ | -20~+70 | ||
| Storage Temperature | ℃ | -40~85 | ||
| Package dimension | mm | ABS Box 100x80x10 | ||
One Way Fiber 1CH DWDM Optical Add and Drop Multiplexer Module
Singe Fiber DWDM OADM Add and Drop Module
1 channel DWDM add & drop multiplexer for EAST&WEST for data transmission over single fibers.
One Way Fiber 1CH DWDM Optical Add and Drop Multiplexer Module filter cascading
One Way Fiber 1CH DWDM Optical Add and Drop Multiplexer Module Solution
|
|
