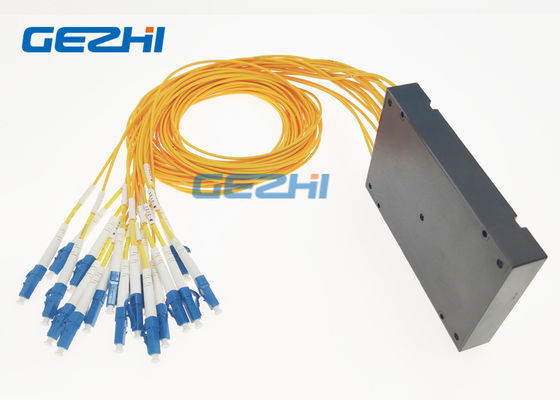

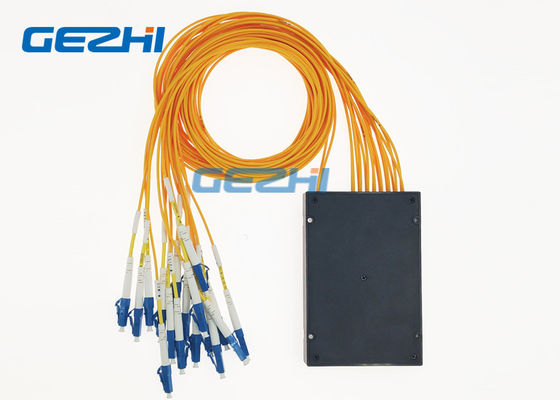

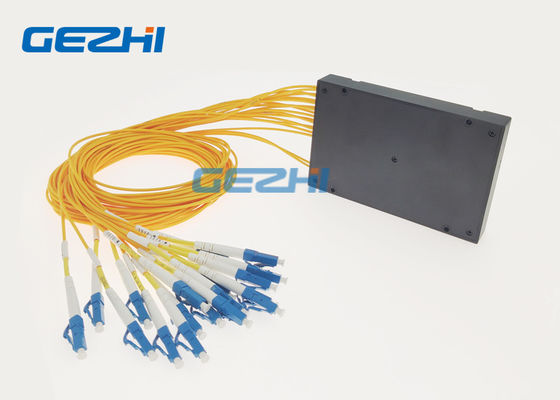

Single Fiber 100Ghz 16 Channels Optical Passive DWDM Modules

Single Fiber 100Ghz 16 Channels Optical Passive DWDM Modules
Single Fiber 100Ghz 16 Channels Optical Passive DWDM Modules Single Fiber 100Ghz 16 Channels Optical Passive DWDM Modules Single Fiber 100Ghz 16 Channels Optical Passive DWDM Modules Single Fiber 100Ghz 16 Channels Optical Passive DWDM Modules

Large Image :  Single Fiber 100Ghz 16 Channels Optical Passive DWDM Modules

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS ,ISO9001
Model Number: 1x16CHDWDM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Product Name: 16 Channels DWDM Wavelength: C21 To C36
Channel Passband: 0.8nm (100Ghz) Line Type: Single Fiber
Connector: LC/UPC Application: CATV Fiber Optic Links
High Light:

16 Channels DWDM

,

16CH DWDM Multiplexer

,

1x16 DWDM Multiplexer



16 Channels Optical Passive DWDM Multiplexer Modules



GEZHI’ 16 Channels Optical Passive DWDM Multiplexer Modules is a low insertion loss, high density passive optical module which based on the thin film coating technology with C21,C22,C23,C24,C25,C26,C27,C28,C29,C30,C31,C32,C33,C34,C35,C36 wavelength. The 16 Channels Optical Passive DWDM Multiplexer Modules offers an high channel isolation WDM solution for data centers and Metro access applications. Its package a 16CH DWDM module in a ABS box with LC/UPC connector.  The 16 Channels Optical Passive DWDM Multiplexer Modules is ideal for long-haul transport of fiber optic singals all over a single fiber.



Features

Applications

  • High stability and reliability
  • High channel
  • Wide pass band
  • Epoxy-Free Optical Path
  • Low Insertion Loss
  • Channel Add/Drop
  • Wavlength Routing
  • CATV Fiber Optic Links
  • Access / Enterprise Networks
  • Metro Networks
  • Long Haul Networks



Specification

Parameter Unit 16Channels Dense WDM module
Channel Number -- 1x16 Channel
Operation Wavelength nm C21~C36+Upgrade
Channel Central Wavelength nm ITU-T Grid @DWDM
Channel Passband nm <3.5 (100Ghz)
Insertion Loss @PB dB <2.5
Isolation @Adjacent Channel dB >30
Isolation @Non-adjacent Channel dB >40
Isolation @Reflect Channel dB >15
Passband Ripple dB <0.5
Polarization Dependent Loss dB <0.15
Polarization Mode Dispersion ps <0.1
Directivity & Return Loss dB Directivity: >50 Return Loss:>45
Power Handling mW <500
Connector -- LC/UPC
Fiber Type -- SMF-28e or Customized
Operating Temperature -20 ~ +70
Storage Temperature -40 ~ +85
Package Dimension mm 120x80x18mm



16 Channels Optical Passive DWDM Multiplexer Modules filter Modules

Single Fiber 100Ghz 16 Channels Optical Passive DWDM Modules 0



Single Fiber 16 Channels DWDM module

Single Fiber DWDM Modules



Single Fiber 100Ghz 16 Channels Optical Passive DWDM Modules 1
