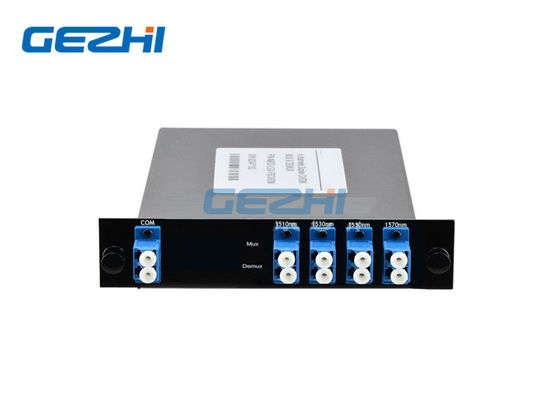

1570nm 4CH Optical Passive CWDM Mux Demux Modules

1570nm 4CH Optical Passive CWDM Mux Demux Modules
1570nm 4CH Optical Passive CWDM Mux Demux Modules

Large Image :  1570nm 4CH Optical Passive CWDM Mux Demux Modules

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: 1x4CH-D-51-LGX
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Features: Dual Fiber Working Product Name: Optical Passive CWDM
Wavelength: 1510nm To 1570nm Channel Number: 1x4 CH
Connector: LC/UPC Application: Line Monitoring
High Light:

4CH CWDM Passive Multiplexer

,

1510nm Optical Passive CWDM

,

1x4 Mux Demux Cwdm



4CH Optical Passive CWDM Mux / Demux Modules



GEZHI 4CH Optical Passive CWDM Mux / Demux Modules is plug-in LGX chassis package connect with LC/PC adaptor. The wavelenght of 4CH Optical Passive CWDM Mux / Demux Modules is 1510nm, 1530nm, 1550nm, 1570nm .The 4CH Optical Passive CWDM Mux / Demux Modulesoffers an high channel isolation WDM solution for data centers and Metro access applications. It is protocol transparent and suited for applications including 10/1G Ethernet, 16/8/4/2/1G Fibre Channel, SDH/SONET, CATV, FTTx, etc.



Features

Applications

  • Dual Fiber
  • Wide pass band
  • Low Insertion Loss
  • High stability and reliability
  • Epoxy-Free Optical Path
  • Completely passive, no power& no cooling required
  • Channel Add/Drop
  • Line monitoring
  • Access Network
  • WDM network
  • Fiber optical amplifier
  • Telecommunication



Specification

Parameter 4CH  Optical Passive CWDM
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±7.5
Operating Wavelength (nm) 1510,1530,1550,1570nm
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) <1.5dB
Isolation(dB) Adjacent Channel 30
  Non-Adjacent Channel 40
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -40~85
Connector LC/UPC
BOX Package (mm) LGX chassis



4CH Optical Passive CWDM Mux / Demux Modules 1510nm~1570nm​ Filter cascading

1x4 Channel Mux+demux, 1510,1530,1550,1570nm, LGX cassette, LC/UPC



1570nm 4CH Optical Passive CWDM Mux Demux Modules 0



4CH Optical Passive CWDM Mux / Demux Modules Packaging

1570nm 4CH Optical Passive CWDM Mux Demux Modules 1



4CH Optical Passive CWDM Mux / Demux Modules 1510nm~1570nm​, LGX cassette, LC/UPC Dual Fiber

1570nm 4CH Optical Passive CWDM Mux Demux Modules 2
