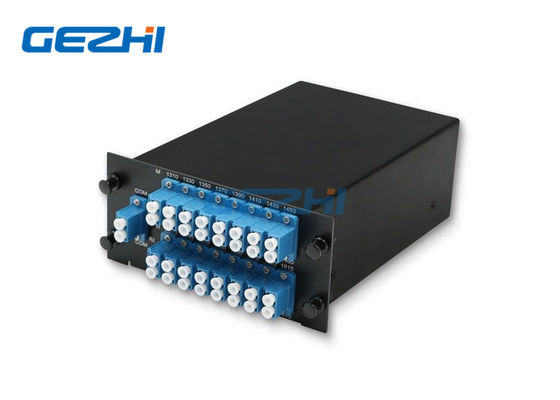

Dual Fiber 1x16 CH CWDM Mux Demux Fiber Optical Multiplexer

Dual Fiber 1x16 CH CWDM Mux Demux Fiber Optical Multiplexer
Dual Fiber 1x16 CH CWDM Mux Demux Fiber Optical Multiplexer

Large Image :  Dual Fiber 1x16 CH CWDM Mux Demux Fiber Optical Multiplexer

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS FCC,ISO9001
Model Number: 1x16CH-CWDM-D-2ULGX
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Product Name: 1x16CH CWDM LGX Wavelength: 1310 To 1610nm
Line Type: Dual Fiber Connector: LC/UPC
Package: 2U LGX Cassette Apllication: WDM Network
High Light:

1x16 CWDM Mux Demux

,

16 CH Coarse Wavelength Division Multiplexing

,

1610nm Passive CWDM Module



1x16 CH CWDM Mux / Demux Fiber Optical Multiplexer Dual Fiber LGX plug-in Module



GEZHI 1x16 CH CWDM Mux / Demux Fiber Optical Multiplexer Dual Fiber LGX plug-in Module based on dielectric thin-film filter technology which designed for integration in low cost Metro and Access networks.



The 1x16 CH CWDM Mux / Demux Fiber Optical Multiplexer Dual Fiber LGX plug-in Module can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-cost, low power consumption and small compact, it is widely used in access layer and metro aggregation to do transmission on a short time.



Features

Applications

  • Alleviate fiber exhaustion
  • Utilize Optical Line Converter as transponder
  • Increase bandwidth on existing fiber infrastructure
  • Scalable bandwidth of up to 10 Gbps per channel
  • Access Network
  • Telecommunication
  • Cellular Application
  • Fiber optical amplifier
  • Line monitoring



Specification

Parameter



Unit

1x16CH Optical CWDM Modules
Mux Demux
Channel Wavelength nm 1310~1610nm

Center wavelength

Accuracy

nm ±0.5
Channel Spacing nm 20

Channel Passband

(@-0.5dB bandwidth

nm >15
Max Insertion Loss dB <4.5 or <3.2 with Skip <4.5 or <3.2 with Skip
Channel Ripple dB 0.3

Isolation

Adjacent dB >30
Non-adjacent dB >40

Inertion Loss Temperature

Sensitivity

dB/℃

<0.005

Wavelength Temperature

Shifting

nm/

<0.002

Polarization Dependent

Loss

dB <0.1

Polarization Mode

Dispersion

dB <0.1
Directivity dB >50
Return Loss dB >45
Maximum Power Handling mW 300
Opterating Temperature -5~+75
Storage Temperature -40~85
Package dimension mm 2U LGX Cassette



Note: 1. Customization is available.

2. Specified with connector



16 Channels Optical Passive CWDM De-multiplexer Modules Bi-directional Filter Cascading



Dual Fiber 1x16 CH CWDM Mux Demux Fiber Optical Multiplexer 0



Packaging

Dual Fiber 1x16 CH CWDM Mux Demux Fiber Optical Multiplexer 1



1x16 CH CWDM Mux / Demux Fiber Optical Multiplexer Dual Fiber LGX plug-in Module​ Solution



Dual Fiber 1x16 CH CWDM Mux Demux Fiber Optical Multiplexer 2
