1310nm Band Ports 8 Channel CWDM Multiplex And Demultiplex

1310nm Band Ports 8 Channel CWDM Multiplex And Demultiplex
1310nm Band Ports 8 Channel CWDM Multiplex And Demultiplex 1310nm Band Ports 8 Channel CWDM Multiplex And Demultiplex 1310nm Band Ports 8 Channel CWDM Multiplex And Demultiplex

Large Image :  1310nm Band Ports 8 Channel CWDM Multiplex And Demultiplex

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: 8CH+13-CWDM-MD
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Features: High Channel Isolation Product Name: CWDM Multiplex / Demultiplex
Wavelength: 1470~1610nm+1310nm Channel Number: 8+1CH
Connector: SC/APC Application: WDM Network
High Light:

CWDM 8 channel multiplexer

,

1310nm cwdm 8 channel

,

8CH mux demux cwdm



8 Channel CWDM multiplex and demultiplex with Grey 1310nm band ports



GEZHI CWDM 8 channel mux and demux with 1310 band ports for bi-directional data transmission over two fibers. The CWDM channels: 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610 nm. 1310 / WWDM band: 1260-1360 nm for “grey” 1310 nm transceivers. it is fully data rate or line protocol neutral – it is possible to use with colored transceivers supporting such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel. It’s simple to install, requires no configuration or maintenance.



Features

Applications

  • 8 CWDM Data Streams over Double SMF
  • Fully Passive: No Power Supply or Cooling
  • Protocol & Data Rate neutral
  • Easy Installation & Expansion
  • Telecommunication
  • Cellular Application
  • Access Network
  • Line monitoring



Specification

Parameter CWDM Mux/Demux Unit
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±7.5
Operating Wavelength (nm) 1470~1610nm + Wide 1310nm
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) <2.8dB
Isolation(dB) Adjacent Channel 30
  Non-Adjacent Channel 45
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -40~85
Connector LC/UPC
Package (mm) 19" 1U Rack Mount



Note: 1. Customization is available.

          2. Specification maybe changed without notice.



8 Channel CWDM multiplex and demultiplex with Grey 1310nm band ports

Filter cascading

1310nm Band Ports 8 Channel CWDM Multiplex And Demultiplex 0

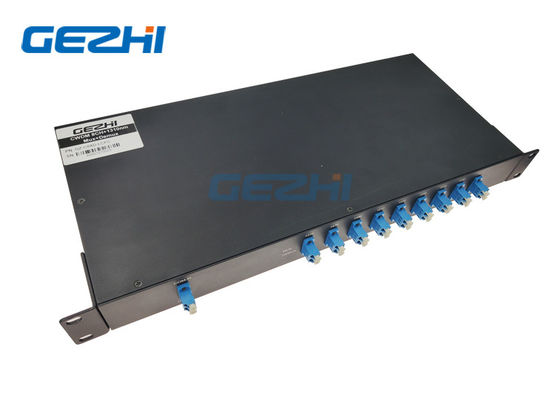

8CH+1310nm CWDM mux/demux 19" 1U Rack Mount



1310nm Band Ports 8 Channel CWDM Multiplex And Demultiplex 1



8 Channel Duplex CWDM Multiplex and demultiplex 1RU Solution

1310nm Band Ports 8 Channel CWDM Multiplex And Demultiplex 2
