Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
DWDM Mux Demux

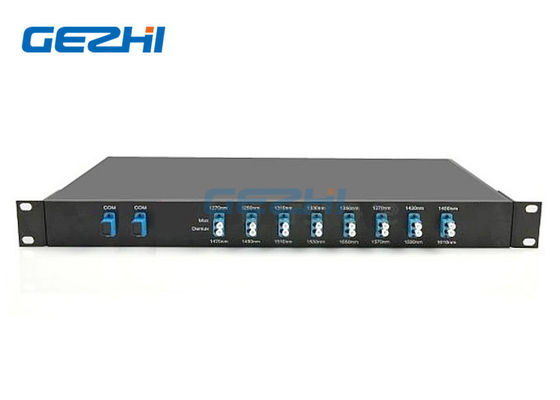

Created with Pixso. 1x8 Channel Coarse WDM Dual Fiber CWDM Solution with 1470~1610nm Wavelength in 19" 1U Rack Mount
1x8 Channel Coarse WDM Dual Fiber CWDM Solution with 1470~1610nm Wavelength in 19
  • name

1x8 Channel Coarse WDM Dual Fiber CWDM Solution with 1470~1610nm Wavelength in 19" 1U Rack Mount

Brand Name: GEZHI or OEM
Model Number: CWDM-1x8-D-1U
MOQ: 1pc
Price: US$58-US$118
Delivery Time: 5-8 work days
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Wavelength Range:
1470~1610nm
Packaging Details:
Paper box
Supply Ability:
100000Channel per month
Highlight:

Dual Fiber CWDM Solution

,

1x8 Coarse WDM

,

8 CH CWDM Mux Demux Module

Product Description
Dual Fiber 1x8 Coarse Wavelength Division Multiplexer
1x8 Coarse WDM Rack Mount Dual Fiber CWDM Solution
GEZHI 1x8 Coarse WDM Rack Mount Dual Fiber CWDM Solution is built-in with an 8CH Mux and 8CH Demux in one 19" 1U rack-mount enclosure. This solution addresses fiber shortage issues and enables transparent transmission of business data while reducing network construction costs. With its low-cost, low power consumption, and compact design, it is widely used in access layer and metro aggregation for short-term transmission applications.
The 1x8 Coarse WDM Rack Mount Dual Fiber CWDM Solution is designed for short-haul transmission. It is protocol and rate transparent, supporting applications such as SDH/SONET, 1G/10G Ethernet, and 8/4/2/1G Fiber Channel across the same fiber link.
Features & Applications
Features
  • Low insertion loss
  • High channel isolation
  • Wide pass band
  • High stability and reliability
  • Completely passive, no power required
Applications
  • WDM network
  • Line monitoring
  • Fiber optical amplifier
  • Cellular Application
  • Access Network
  • Telecommunication
Technical Specifications
Parameter 1x8 Coarse WDM
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±6.5
Operating Wavelength (nm) 1470~1610nm
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) <2.5dB
Isolation (dB) Adjacent Channel: 30
Non-Adjacent Channel: 45
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -40～85
Connector COM: SC/UPC
OTH: LC/UPC
BOX Package (mm) 19" 1U Rack Mount
Note: 1. Customization is available.
2. Specification may be changed without notice.
Filter Cascading
1x8 Channel Coarse WDM Dual Fiber CWDM Solution with 1470~1610nm Wavelength in 19" 1U Rack Mount 0
Filter cascading configuration
CWDM 19" 1U Rack Mount
1x8 Channel Coarse WDM Dual Fiber CWDM Solution with 1470~1610nm Wavelength in 19" 1U Rack Mount 1
19" 1U rack mount enclosure
Dual Fiber Transmission
1x8 Channel Coarse WDM Dual Fiber CWDM Solution with 1470~1610nm Wavelength in 19" 1U Rack Mount 2
Dual fiber transmission configuration
